FoxAir 60 – 2-Ton Aircraft & Helicopter Air Conditioning Unit (Heat Option Available)

FoxAir 60
2-Ton Aircraft Air Conditioning Unit

Available Models:
FoxAir 60 – 60 Hz – Cooling Unit Only
FoxAir 50 – 50 Hz – Cooling Unit Only
FoxAir 60B – 60 Hz – Cooling Unit Only with Remote Control
FoxAir 60B with Heat – 60 Hz – Cooling/Heating Unit with Remote Control

24,000 BTU 2-Ton Aircraft Air Conditioning Unit: Designed for use with Citation, King Air, and Hawker cabin class aircraft. Other commercial aircraft applications are possible along with helicopters.

The FoxAir unit provides a convenient and reliable portable solution for pre-conditioning ambient air in an aircraft cabin, cockpit, equipment bay, fuselage, or other confined environments. The base FoxAir unit provides a fan-only mode and a cooling mode. A heating mode is offered as an add-on option on all models. In addition to cooling, heating, and air movement, when operating in the cooling mode, the unit will reduce ambient humidity by removing moisture from the air. The moisture is dissipated through the unit's drain system as water.

Standard FoxAir 60 Features

• Saves wear and tear on the aircraft Freon system
• Saves fuel and run time on aircraft APU
• Compact size makes it easy to maneuver under wings and around hangars
• Quiet and simple operation
• 50 Hz option is available for locations with 50 Hz power
• A handheld IR remote control is provided with production FoxAir 60 units
• Base model does not include hoses or input cables – they will be added to the quote separately

Single-Phase Input Voltage Required

207" 253V AC source at 20A is required for the FoxAir unit

Description of the FoxAir 60

The FoxAir consists of a packaged air conditioning unit, modified for portability and use in an aircraft hangar environment, providing pre-conditioned air via a 10-foot delivery hose. The unit is packaged for durability and portability, with minimal maintenance requirements. It utilizes a sealed R410A refrigeration system, and there are no user-serviceable components; furthermore, the unit cannot be recharged with refrigerant by the user. Any failure of the sealed refrigerant system must be returned to FoxCart for repair or referred to an air conditioning repair professional.

When operating in the cooling mode, FoxAir removes moisture from the ambient air. An integral drain located in the center of the unit's bottom offers the option to drain excess water directly onto the ground underneath the FoxAir unit or to a remote drain via the optional drain kit. The unit also features a unique "wicking" feature that allows the drain to be capped (as shipped from the factory), and excess water is then "wicked" up via the condenser fan blade. This mode also provides additional cooling capacity and is useful in extremely hot environments.

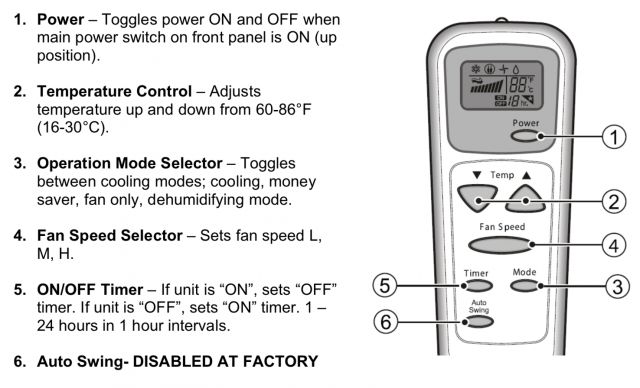

FoxAir units without the remote control option are factory-set to the highest cooling setting, and no adjustments are available. The main power breaker switch on the front panel powers the unit ON and OFF. FoxAir units supplied with IR Remote Control functionality utilize an electronic control module that memorizes the last setting of the unit when switching the unit off via the main power breaker switch on the front panel, or during a power failure. When the unit is switched back on or power is restored, it will begin operating in the same mode as before power was removed. Temperature, mode, timer, and fan speed functions are displayed on and controlled via the handheld IR remote control. The base FoxAir 60/50/B unit is a cooling-only unit. An optional heating function adds an electric heating element that provides up to 12,000 BTU of heat.

Available Options for the FoxAir Unit

• Heating Option: The electric heating element provides 12,000 BTU of heat.

• Air Hose Extension Coupling: Allows you to connect two 25' lengths of air delivery hose, extending the reach to 50'.

• Yellow Air Delivery Hose, Non-Insulated – 8" x 25', BLTD – 406-0008-025

• Yellow Air Delivery Hose, Insulated - 8" x 25', BLTD, insulated – 406-0028-025

• Drain Hose Kit: Available in 50' and 100' lengths. Includes angled cutoff valve and hose.

• Optional 100' and 150' Input Cable Lengths

• Hose Rack: Stores the air delivery hose and drain hose on top of the FoxAir unit. Electrical wall box and receptacle kit. Mates with the plug supplied with the FoxAir cart. Custom color options upon request.

• Stainless Steel Option: Ideal for high-corrosion environments.

• Replacement Antimicrobial Air Filter

• Replacement IR Remote Control

Input

• Voltage Range: 208V to 230V RMS, single-phase, 2-wire, plus safety ground
• Frequency: 60 or 50 Hz ±10%
• Compressor Rated Load: 10.5 amps
• Safety Disconnect: Circuit Breaker ON/OFF

Environmental

Physical Characteristics

• Weight: Approx. 300 lbs (136 kg)
• Dimensions: 38" L x 28" W x 24" H (96.5 x 71 x 61 cm)
