Malabar 8932-O2 – 3-Bottle Aircraft Oxygen Cart

Your Authorized Tronair Distributor and Service Center

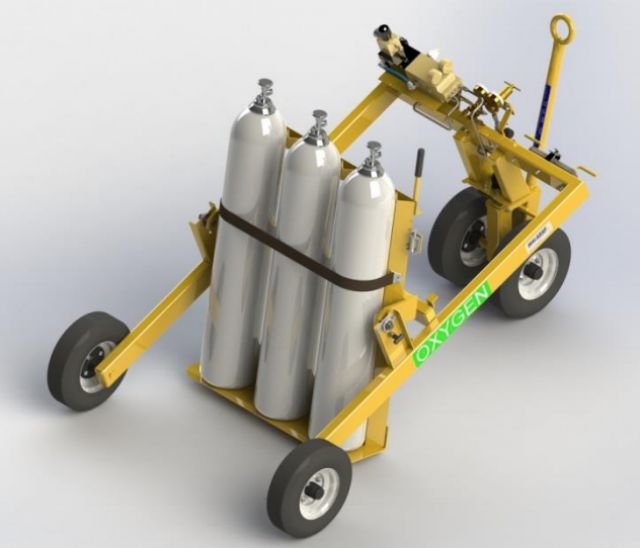

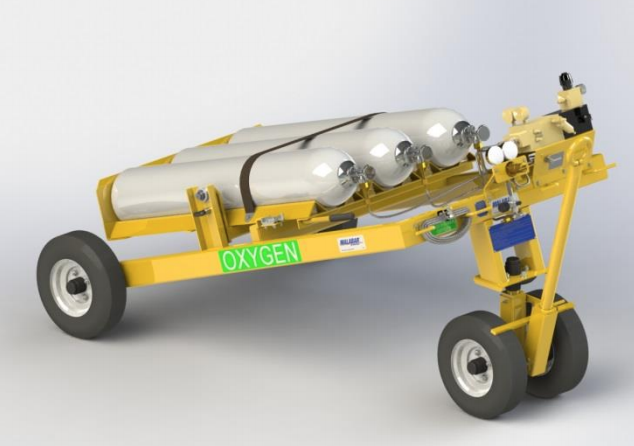

The Malabar 3-Bottle Aircraft Oxygen Cart (8957-O2) features a counterbalanced bottle rack that permits single-operator loading and unloading of oxygen bottles. The cart securely holds and provides mounting for the hose required to service the aircraft.

The cart does not come with gas bottle valve fittings. You can purchase valve fittings as options or specify your gas cylinder connection fittings at the time of your order to ensure that the correct fittings are supplied.

This towable aircraft oxygen cart is built to withstand harsh environmental conditions and rugged use, ensuring many years of continuous service.

Standard Features

• Rugged, tubular steel frame
• Bottle restraint strap
• Oxygen delivery system with a high-quality regulator and gauges
• Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with a dust plug
• Towbar with 3" ID lunette ring and parking brake
• Skydrol-resistant paint (Safety Yellow)
• One-year standard warranty

Optional Features – Add-Ons

• BPO: Oxygen Boost Pump (powered by air)
• 474-009: 2,400 psig Oxygen Bottles (furnished empty) with CGA540 Valve Fittings Installed (order 2)
• 893256: Separate CGA-540 Bottle Valve Fittings (order 3)
• 893249: Separate BS-341-3 Bottle Valve Fittings (order 3)
• 893257: Separate DIN-477-9 Bottle Valve Fittings (order 3)
• SPC: Customer-Specified Paint Color

Specifications

• Unit Weight (Less Gas Bottles): 440 lbs. (200 kg)
• Unit Weight (with Optional Gas Bottles): 1,000 lbs. (454 kg)
• O2 High-Pressure Hose Length: 15 ft. (4,572 mm)
• O2 Operating Pressure: 200 to 3,000 psig (14 to 211 kg/sq cm)
• Optional O2 Boost Pump Operating Pressure: 300 to 2,400 psig (21 to 168 kg/sq cm)
• Overall Length: 91" (2,311 mm)
• Overall Width:: 55" (1,397 mm)
• Overall Height: 47" (1,194 mm)
• O2 Bottle Rack Capacity: 2 Bottles
• Maximum O2 Bottle Length (Including Bottle Valve): 63" (1,600 mm)
• Maximum O2 Bottle Diameter: 9" (235 mm)
