Malabar 8957-O2 2 Bottle Aircraft Oxygen Cart

Malabar 8957-O2
Malabar 8957-O2
Manufacturer: Malabar
Part Number: 8957-O2
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Do you need an oxygen booster?
Do you need fittings to connect your bottles?
These do not come as standard on unit.
Do you want a special cart color?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
2 Bottle Towable Nitrogen Cart - Customizable with Regulators / Booster
4 Bottle with Oxygen Booster / Regulator
With and without calibration certificate available
4 Bottle Oxygen Cart With Regulator (Ce) - Up to 3,000 PSI System
Malabar GSE
Your Authorized Tronair Distributor and Service Center

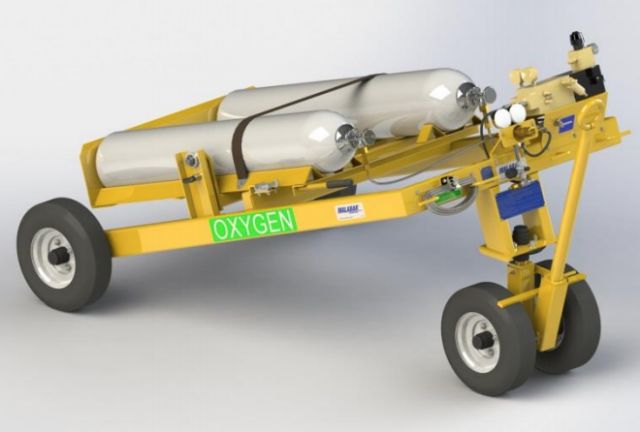

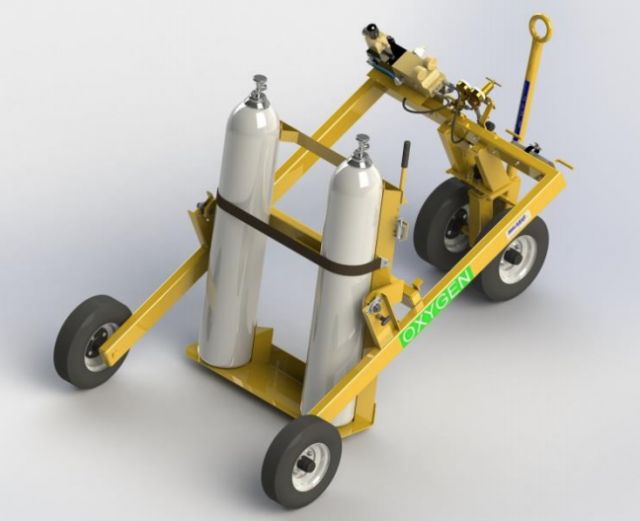

The Malabar 8957-O2 towable 2 bottle aircraft oxygen cart services aircraft oxygen systems and features a counter-balanced bottle rack that permits single operator loading and unloading of gas bottles. The cart securely holds the bottles and provides mounting for the hose required to service the aircraft.

The cart does not come with gas bottle valve fittings. Customers can purchase valve fittings as options or specify their gas cylinder connection fittings at time of order to ensure correct fittings are supplied.

This two bottle aircraft oxygen cart is built to withstand harsh environmental conditions and rugged use and to provide many years of continuous service.

Standard Features

  • Rugged tubular steel frame
  • Bottle restraint strap
  • Oxygen delivery system with high quality regulator and gauges
  • Oxygen hose includes AN800-3 (3/8-24 thread) oxygen charge adapter with dust plug
  • Towbar with 3" ID lunette ring and parking brake
  • Skydrol resistant paint (safety yellow)
  • Export crating
  • One year standard warranty

Available Optional Equipment Add-On

  • BPO: Oxygen boost pump powered by air
  • 474-009: 2400 psig oxygen bottles (furnished empty) with CGA540 valve fittings installed (order 2
  • 893256: Separate CGA540 bottle valve fittings (order 2)
  • 893249: Separate BS-341-3 bottle valve fittings (order 2)
  • 893257: Separate DIN-477-9 bottle valve fittings (order 2)
  • SPC: Customer-specified paint color

Specifications

  • Unit weight (less gas bottles): 400 lbs (181 kg)
  • Unit weight (with optional gas bottles): . 800 lbs (363 kg)
  • O2 high pressure hose length: .15 feet (4572 mm)
  • O2 operating pressure: 200-3000 psig (14 - 211 kg/sq cm)
  • Optional O2 boost pump operating pressure: 300-2400 psig (21-168 kg/sq cm)
  • Overall length: 91 inches (2311 mm)
  • Overall width:: 55 inches (1397 mm)
  • Overall height: 47 inches (1194 mm)
  • O2 bottle rack capacity: 2 bottles
  • Maximum O2 bottle length (including bottle valve): 63 inches (1600 mm)
  • Maximum O2 bottle diameter: 9 inches (235 mm)
Alternate Models
895700-2Oxygen Regulators without Bottle Valve Fitting Only - No Oxygen Booster
895700-4Oxygen Regulators without Bottle Valve Fittings and Booster Pump for Oxygen
Compatible Aircraft*
ATR42, 72
AdamA500, A700
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Airbus Military (CASA)212-100, 212-200, C-295, CN-235/HC-144A
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, ATP, Jetstream 31, Jetstream 41, RJ70, RJ85
Bell214, 214ST, 222, 230, 412, 429, 430
Boeing707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 757, 767, 777, 787, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, KC-46, MD-80, P-8 Poseidon
Bombardier (Business)C-21, Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Challenger 650, Challenger 850, Challenger 870, Challenger 890, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)CRJ100, CRJ1000, CRJ200, CRJ700, CRJ705, CRJ900, CS100, CS300, Dash 6 (Twin Otter UV-18A), Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
CessnaBravo, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 8X, Falcon 900, Falcon 900EX
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, ERJ-170, ERJ-175, ERJ-190, ERJ-195, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Lineage 1000, Phenom 100, Phenom 300
EurocopterAS330 Puma, AS332 Super Puma, AS365N Dauphin, AS532 Cougar, BK-117, BO-105, H135 (EC135), H145 (EC145), H175 (EC175), H225M (EC725 Super Cougar), UH-72A Lakota
EurofighterTyphoon
Fairchild/DornierDornier DO328, Dornier DO328 Jet, Metro Merlin III, Metro Merlin IV
Fokker100, 50
General DynamicsConvair 580, Convair 600, Convair 640
GrobG120A, G120TP
GulfstreamG100 (Astra SPX), G150, G200 (Galaxy), G280, G350, G450, G500, G550, G650, II, III, IV, IVSP, V, VSP
Hawker BeechcraftBeech 1900, Beech 99, Beechjet 400A, C-12, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, T-1 Jayhawk, T-400, T-6A Texan II
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
LockheedJetstar C-140
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-11, MD-80
PiaggioP-180 Avanti
PilatusPC-12, PC-9
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
SikorskyCH-148, H-92 Superhawk, MH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i, S-65 (CH53, HH53, MH53, Sea Stallion), S-76 (AUH-76), S-92, UH-60 Black Hawk, MH-60S Seahawk
Sino SwearingenSJ30-2
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
