Malabar PF53481-2PWS 5 Gallon Fluid Dispenser (Ordering Code: 350G-06-3-0-1-03-0-0-1)

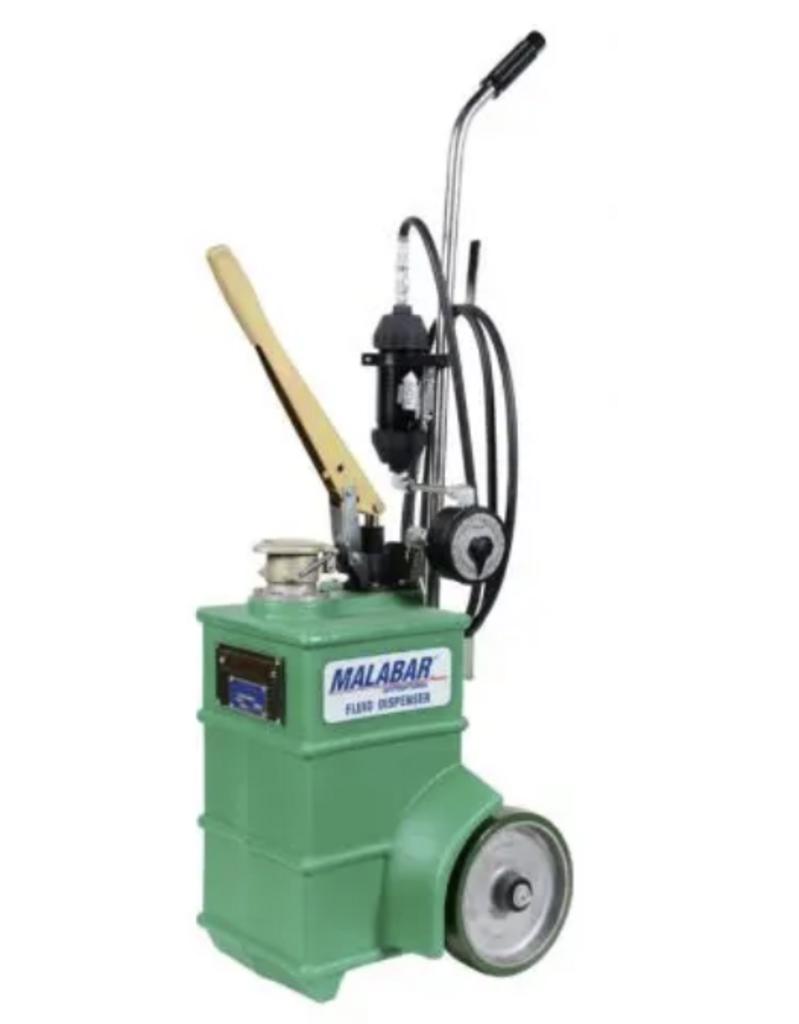

The Malabar PF53481-2PWS Fluid Dispenser is a high-quality, hand-operated aircraft servicing unit designed for reliable dispensing of Esso 2380 turbine oil. Built with durable materials and engineered for precision, this portable 5-gallon dispenser provides operators with a safe and efficient way to service commercial and business aircraft.

With a lightweight yet rugged polyethylene tank, integrated filtration system, and ergonomic hand pump assembly, the PF53481-2PWS ensures clean, controlled fluid delivery wherever it’s needed. Its mobility and straightforward operation make it a trusted choice for hangar and ramp use worldwide.

Key Features & Benefits

• 5-Gallon (18.9 L) Green Polyethylene Tank
  Lightweight, corrosion-resistant reservoir designed for durability and long service life.

• Approved for Esso 2380
  Configured specifically for dispensing Esso 2380 turbine oil, ensuring compatibility and reliability for aircraft servicing.

• 3 Micron Absolute Filtration
  Equipped with a precision water stop filter assembly to deliver clean, contaminant-free fluid, safeguarding sensitive aircraft systems.

• Ergonomic Hand Pump Operation
  Each stroke delivers approximately 3 cubic inches (49 cc) at up to 100 psig, allowing smooth and efficient dispensing with minimal effort.

• Standard Hose Assembly (120" / 10 ft)
  Provides flexibility and reach for easy connection to service points without repositioning the dispenser.

• 2506 Coupler with Dust Plug (P/N 736-013)
  Ensures secure, leak-free connection and includes a dust plug for contamination prevention.

• Mobility and Convenience
  Outfitted with durable rubber wheels for smooth transport across hangar floors or tarmac surfaces.

• Safety Relief Valve
  Factory-set to bypass oil at 125 ± 10 psig to protect both operator and equipment.

Technical Specifications

• Reservoir Capacity: 5 gallons (18.9 liters)

• Fluid Compatibility: Esso 2380 turbine oil

• Pump Outlet Pressure: 100 psig (689 kPa)

• Relief Valve Setting: 125 ± 10 psig (862 ± 69 kPa)

• Volume per Stroke: 3 cubic in. (49 cc)

• Hose Length: 120 in. (3048 mm)

• Filter Rating: 3 micron absolute

• Net Weight (Empty): 35 lbs (15.9 kg)

• Tank Color: Green

Ordering Code Breakdown

• 350G – Polyethylene tank, green

• 06 – Esso 2380 turbine oil configuration

• 3 – 3 Micron Absolute Filter

• 0 – No fluid meter

• 1 – Standard hose, 120" (10 ft)

• 03 – 2506 Coupler (736-013) & Dust Plug

• 0 – No pressure gauge

• 0 – No locking port & no storage tray

• 1 – Standard rubber wheels

Applications

• Routine aircraft servicing in hangars and on ramps

• Business jet and commercial aircraft turbine oil replenishment

• Maintenance operations requiring mobile, reliable, and filtered fluid dispensing

Why Choose Malabar?

Malabar International, a Tronair Company, has been a leader in aircraft maintenance equipment for decades. The PF53481-2PWS exemplifies Malabar’s commitment to quality, safety, and operator-focused design, ensuring dependable performance in demanding aviation environments.

PN: PF53481-2PWS – Built to your exact ordering code configuration for precision, safety, and ease of use.
