Mid-Continent TA202 Single USB-A Charging Port – 6430202-10 - FAA TSO

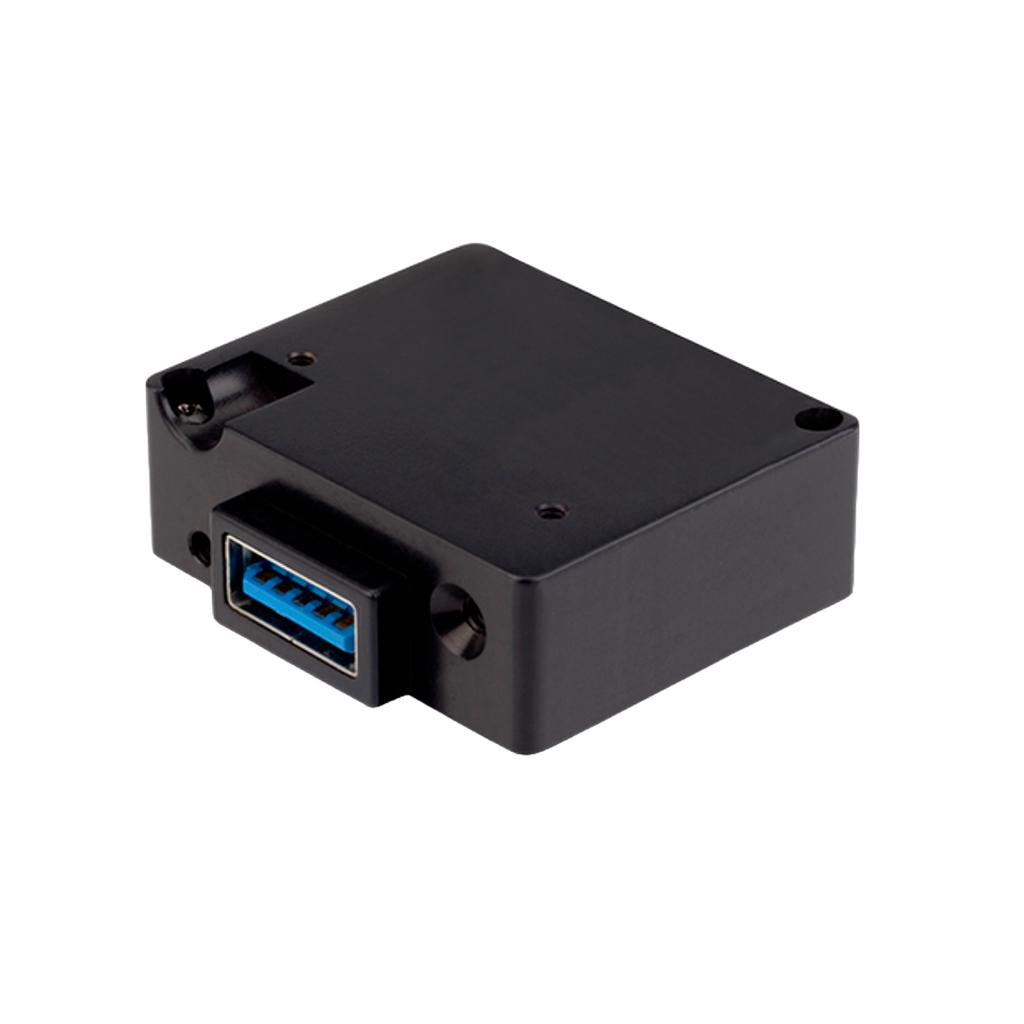

Mid-Continent Instruments 6430202-10 – TA202 High Power USB Charging Port

Certified Power. Ultra-Compact. Designed for Flight.

The TA202 USB Charger (Part No. 6430202-10) from Mid-Continent Instruments and Avionics is a compact, TSO-certified USB-A power solution built for the demanding environment of aviation. Delivering a steady 15 watts (5 VDC / 3.0 A) from a single USB-A port, this high-performance charger is ideal for powering smartphones, tablets, iPads, or Electronic Flight Bags (EFBs) in the cockpit, cabin, galley, or passenger seat.

With built-in safety protections, a durable anodized aluminum case, and bottom power input design, the TA202 offers efficient power delivery in a space-saving footprint that installs easily in nearly any aircraft panel configuration.

Key Benefits

• Provides a full 3.0 amps of power to a single USB-A connected device

• Compatible with 10–32 VDC input voltage aircraft systems

• 5 VDC ± 0.25 output voltage ensures consistent charging performance

• Integrated protection against short circuit, overload, temperature, and surges

• Installs in cockpit, cabin, galley, or in-seat locations

• Lightweight, rugged, and FAA TSO-C71, EASA, and CAAC certified

• Designed and manufactured in Wichita, Kansas, USA

• Includes MCI P/N 9017960 mating connector kit

• Backed by a Limited Lifetime Warranty

Technical Specifications

• Part Number: 6430202-10

• USB Connector: Single USB-A

• Input Voltage: 10 – 32 VDC

• Output Voltage: 5 VDC ± 0.25

• Output Power: 15 watts (3.0 amps per port)

• Input Power (Max): 18 watts

• Power Input Location: Bottom

• Weight: 0.8 oz (23 grams)

• Dimensions: 1.5″ W x 0.52″ H x 1.25″ D

• Mounting: Front or rear (optional faceplates and adapters available)

Accessories (Optional)

• Faceplates: 9019351-1, 9019384-3

• Adapters: 9010361-1, 9010361-3

• Dust Covers: 9019313-1, 9019313-2

Certifications

• FAA TSO-C71

• EASA ETSO-C71

• CAAC CTSO-C71

• RTCA DO-160G

Deliver dependable power where you need it most. Choose the TA202 for a certified, compact charging solution built for today’s flight deck and cabin demands.
