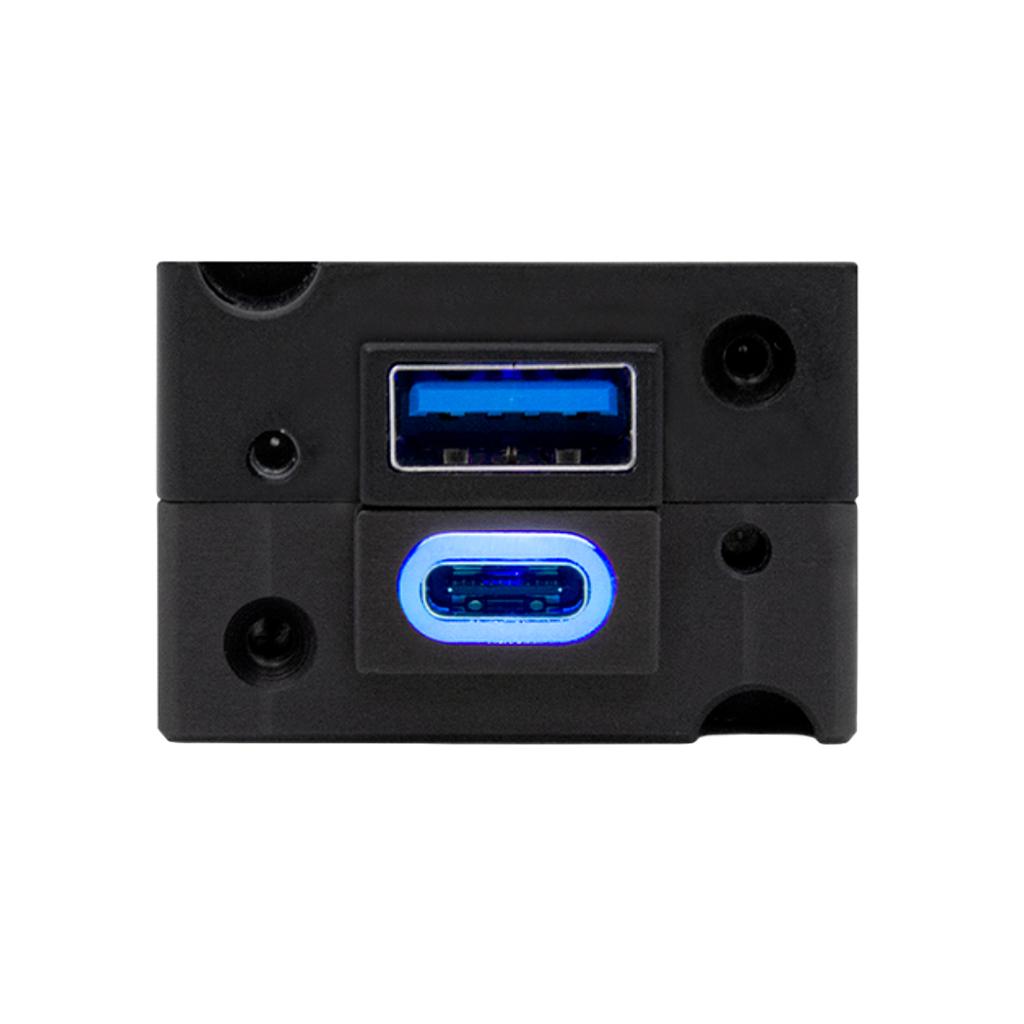

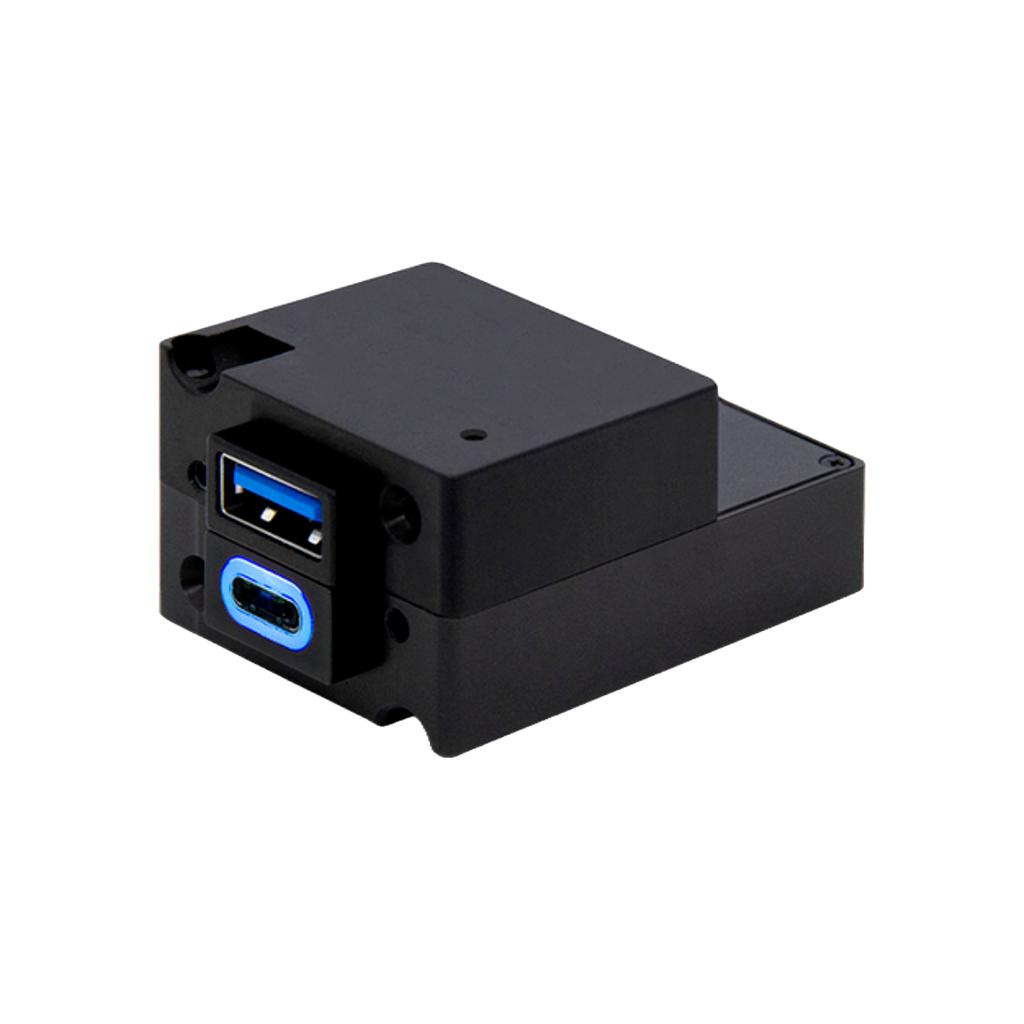

Charge your personal electronics faster with up to 100 watts of power and the latest USB-PD Technology. The Dual USB-A / USB-C PD charging port from True Blue Power is lighted and is designed with a rear connector. This MAX Power USB charger is TSO certified and backed by a Limited Lifetime Warranty. True Blue Power MAX Power chargers are the only TSO-certified Starlink® Mini compatible USB chargers*
Key Benefits
• Simultaneously provides 3.0 amps (USB-A) and 5.0 amps (USB-C PD)
• 22 – 32 VDC input voltage
• Delivers up to 100 watts of power per PD port
• Dual, USB-C PD / USB-A connectors
• Compatible with USB-C PD, traditional USB-C and USB-A devices
• Charge two devices simultaneously at maximum power
• Short circuit, power surges, overload and over temperature protection
• In-seat, cabin, cockpit and galley applications
• Designed and built in Wichita, Kansas, USA
• Limited lifetime warranty
* True Blue Power USB chargers do not support Starlink®-manufactured USB-C to barrel jack cables. A third-party verified cable is required.
| General Information | |
|---|---|
| Part # | 6430360-31 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409540 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Adapter Plates | 9017947 |
| Case | Anodized aluminum, black |
| Certification | FAA TSO C71, EASA ETSO C71, RTCA DO-160G |
| Dimensions | 1.5” W x 1.03” H x 2.0” D |
| Dust Covers | 9019313-1, 9019313-2 |
| Faceplates | 9017958, 9019384-4 |
| Input Power | USB-C PD; 100 W per port (maximum), USB-A; 18 W per port (maximum) |
| Input Voltage | 22 – 32 VDC |
| Installation | In-seat, cabin, cockpit, galley |
| Mating Connector Kit | MCI P/N 9017960 (included) |
| Mounting | Front or rear, faceplates and adapter plates (optional) |
| Output Current | USB-C PD; 5.0 amps per port, USB-A; 3.0 amps per port |
| Output Power | USB-C PD; 100 W per port (maximum), USB-A; 15 W per port |
| Output Voltage | USB-C PD; 5 – 20 VDC per port (variable), USB-A; 5 VDC ± 0.25 per port |
| USB Connector | USB-C PD and USB-A; Dual configuration |
| Weight | 1.8 ounces (51 grams) |
