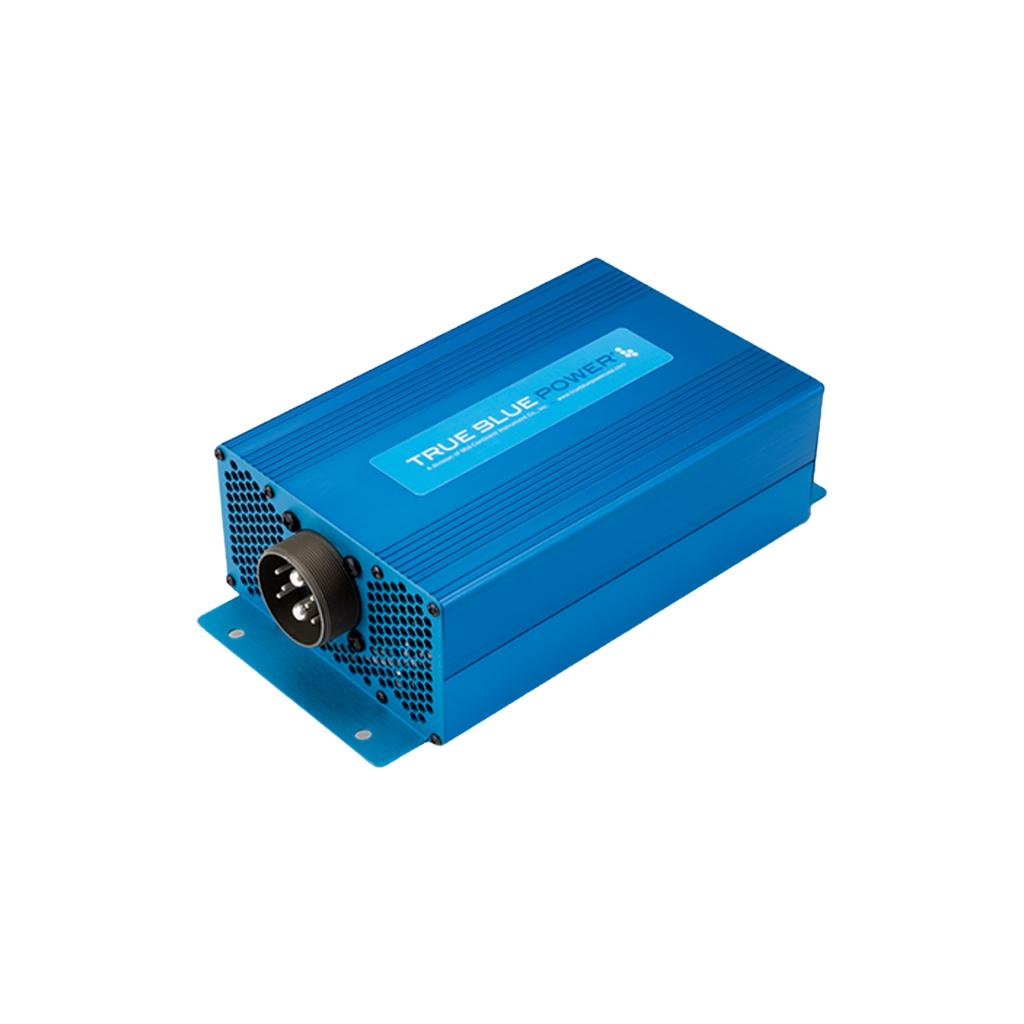

MCI 6432000-1 - DC-to-AC Inverter, Model: TI2000
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Supplies 2,000 watts of wall outlet power
• Ideal for emergency medical equipment, special mission and VIP cabin configurations
• Lightweight — 7.7 lbs
• 93% efficiency
• Input transient, overload and short-circuit protection — up to 150% of rated load without damage
• Remote On/Off optional
• FAA TSO-C73 certified
• EASA ETSO-C73 certified
• RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6432000-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409570 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 55,000 ft |
| Case | Anodized aluminum extrusion, blue |
| Certification | FAA TSO-C73 certified, EASA ETSO-C73 certified, RTCA DO-160G qualified |
| Humidity | Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F |
| Input Current | 80 A at 28 VDC input |
| Input Voltage | 20 – 36 VDC |
| Integral Cooling | Dual, electronically-controlled brushless fans |
| Mating Connector | P/N 9018784-1, P/N 9018550-2 (cable clamp / backshell) |
| Output Frequency | 60 Hz ± 0.1% |
| Output Power | 2,000 VA |
| Output Voltage | 115 VAC ± 3% |
| Output Waveform | Single phase, true sine wave, < 3% total harmonic distortion |
| Temperature | -67°F to +158°F (-55°C to +70°C) |
| Weight | 7.7 lbs (3.49 kg) |
