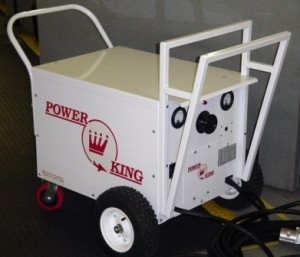

Power King Single Phase Ground Power Unit
Get a Quote or Ask a Question
|Company Name:||Phone: (optional)|
The Power King is a 28 volt single phase aircraft ground power unit rectifier, designed for in hangar use or aircraft starting.The single phase aircraft ground power unit allows operators with only single phase ground power in their facilities to run a 28V aircraft rectifier with 600 amps continuous and 1200 amps max DC power.
- Low Profile
- All Electric, Quiet, No Fumes
- 1200 Peak Output #60 Hz
- 600 Amp Continuous #60 Hz
- Require Minimum 80 Amp #208 Volt Service
- AC Input Single Phase 50 Or 60 Cycle
- 208 To 240 Volt Service (strappable In The Field)
- Transformer Designed To Give More Dc Output
- Ripple And RFI Filtered
- Reverse Diodes
- Soft Start Designed To Provide Minimum Stress On Aircraft
- Over Voltage Protection
- Cables Standard Equipment:
- 100 Ft. AC Input, 20 Ft. DC Output
- Powder Coated Exterior
- Flat Free Tires
- 14V Switch
- Dims: 53â³ L x 35â³ W x 44â³ H (135 x 99 x 112 cm)
- Weight: 700 lbs. (318 kg)
What size of cable is installed on this ground power unit?
All new units come standard with a 100' AC input cable. The cable size is a 6/3 cable. We do not install plugs on the end of the cables as every hangar is always wired different. This is standard practice on all ground power units. When you receive the unit, you will need to have a qualified electrician install a plug that will work with your hangar electrical box on the input cable.
What is the main difference between this single phase unit and a Power King 3 phase input voltage unit?
The single phase units provide 600 amps continuous and 1200 max amps for starting while the 3 phase input voltage units provide 1000 amps continuous and 2400 amps max.
What is the purpose of this unit?
The Power King single phase ground power unit provides 28V DC aircraft power while operating on single phase input voltage in the hangar. This unit provides power to the aircraft for operators and maintenance technicians to service the aircraft, update the GPS or any onboard software updates, aircraft lights, and assist the aircraft during starts. This unit can only provide up to 1200 amps max. If you need more power, please consider the 3 phase input voltage unit.
What is the warranty on the new units?
The manufacturer guarantees the Power King to be free from defective material and workmanship for three (3) years from delivery to customer, with the exception of paint, wheels and power cords.
The warranty does not apply to deficiencies caused by improper use, handling, operation or maintenance. Modifications or unauthorized repairs are considered improper use. Warranty does not apply to any damage due to operation in which the manufacturer instructions are not followed. (Warranty terms subject to change. Consult the operating manual for up to date warranty information)
Will this unit work on international 50 HZ input voltage?
Yes, this unit can be wired and operated on either 60 HZ or 50 HZ input voltage. At the time of ordering a unit, please advise if you will be using it on 50 HZ.
|Pkg. 1 Weight||750 lbs.|
|Pkg. 1 Dimensions||53 in. x 35 in. x 43 in.|
We service the Model 5 - Single Phase and other items like it at our facility.
We sell parts for the Model 5 - Single Phase and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.
We provide short-term and long-term rentals for the Model 5 - Single Phase. We will ship the item directly to you and arrange for pickup at the end of your lease.
We can purchase your used Model 5 - Single Phase (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
