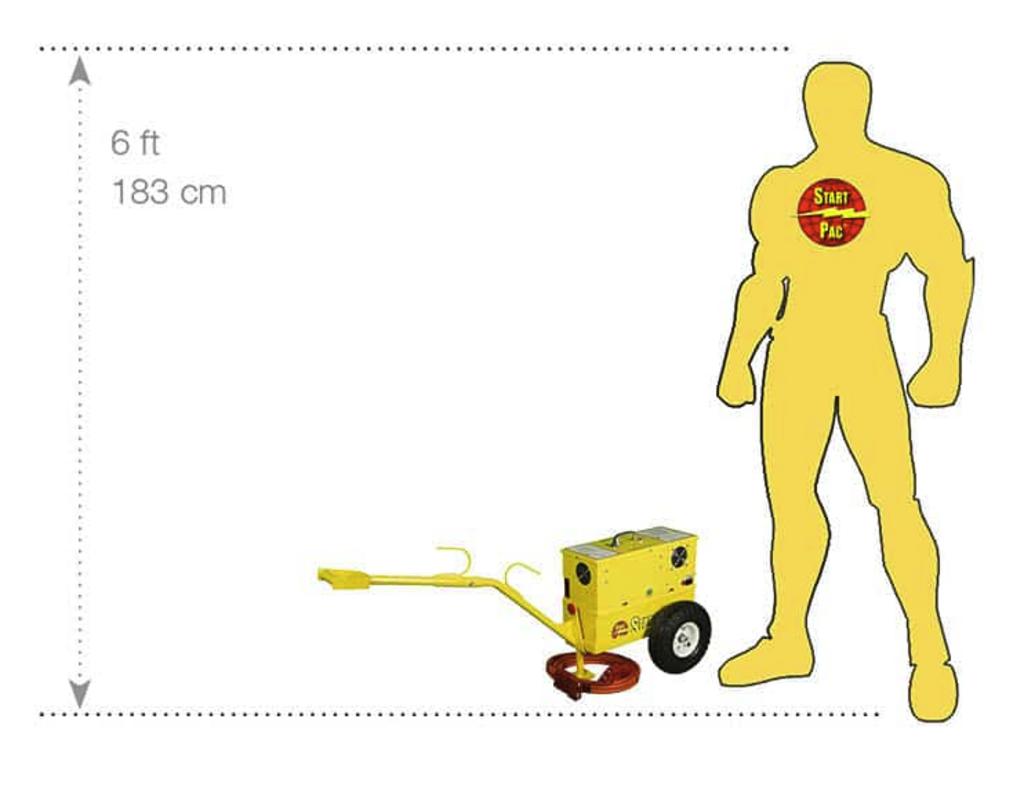

Start Pac 2300QC-50 – Super Pac™ Portable 24V & 28V Aircraft Battery Pack

The Start Pac 2300QC-50 Super Pac™ Portable 24V and 28V Aircraft Battery Pack will provide better starts than your onboard battery on all electrically started turbine engines, as well as 50A continuous power for powering up aircraft systems.

This compact, powerful Micro GPU utilizes Start Pac's proprietary Quick Change technology (removable batteries that can be changed in less than a minute), combined with a lightweight 50-amp power supply. It allows for faster and cooler engine starts and provides 28.5V clean, unlimited, continuous, no-duty cycle power when connected to the AC mains for powering up 24V aircraft systems.

The environmentally responsible, low-VOC powder coating protects the case from wear and poor weather conditions.

This unit comes standard with the QC trolley. Still portable, it can be used at the home base and in the field and is an ideal alternative to larger traditional GPUs.

Certain aircraft will allow the ship's generator to back-charge a GPU. In this manner, the Start Pac unit can be recharged indefinitely in the field without an AC source.

NOTE: This unit is not designed for aircraft battery charging.

Standard Features

• Complete, all-in-one unit is supplied with built-in universal smart float-type chargers for faster recharge, trolley, power plug, and 7' (2.1 m) aircraft cables
• Integrated LED charge indicator
• Cold-resistant, valve-regulated, high-amperage output lead-acid batteries
• Powerful, sealed-cell, nonhazardous battery pack can be used in any position
• Maintenance-free operation
• Non-toxic, non-spillable, and recyclable batteries
• Resistant aluminum case with eco-friendly, low-VOC powder-coat finish
• Easy to handle and built for heavy-duty usage
• Integrated voltmeter

Technical Specifications

• Battery Type: Lead-Acid
• Voltage: 24V DC
• Peak Current: 2,300A
• Capacity @ 10-Amp Rate: 28 Ah
• Charger Type: Built-In
• Maximum Continuous Current Output: 50A
• DC Voltage Output: 28.5V DC
• AC Voltage Input: 110V AC or 220V AC* (*must be specified on order)
• Phase: Single
• Forced Air-Cooling: Yes
• Over-Current Protection: Yes
• Over-Voltage Protection: Yes
• Over-Temperature Protection: Yes
• Complete Weight: 79 lbs. (35 kg)
• Dimensions: 19.2" L x 7.5" W x 14" H (49 x 19 x 36 cm)
