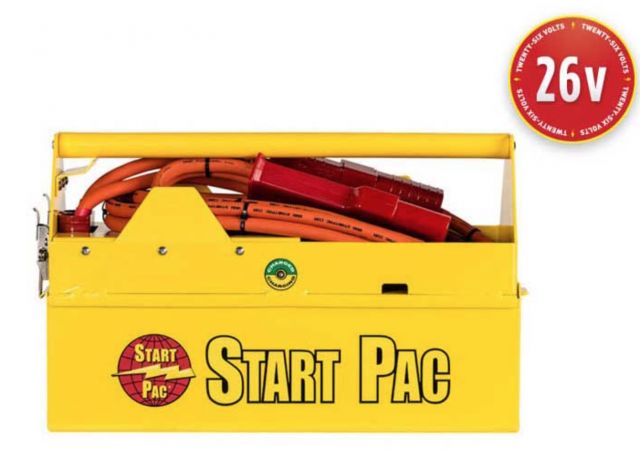

Start Pac 2326QC – 26V Aircraft Lead-Acid Battery Pack
Need a Quote?
The Start Pac 2326QC has a separate removable battery that can be changed in 10 seconds. This feature allows the user to change batteries in the field without needing to send the Start Pac back to the shop or manufacturer.
This 26V unit is designed for voltage-sensitive aircraft that can not accept a true 28V external starter. This Start Pac will provide a faster and cooler engine start than most ships' aircraft batteries, thus extending turbine life, which helps to lower operating costs. The 2326QC has dual redundant chargers with a total output of 7 amps and a recharge time of approximately 2 to 4 hours after having been depleted from multiple engine starts.
Certain aircraft will allow the ship’s generator to back-charge a GPU. In this manner, Start Pac can be recharged in the field without an AC source indefinitely.
NOTE: This unit is designed for engine starting only.
Recommended for Voltage Sensitive Aircraft
- Augusta 109
- Eclipse 500
- Embraer Phenom 100
- Embraer Phenom 300
- Pilatus PC-12
***Will work with 28V DC aircraft, but it is specifically recommended for any voltage-specific aircraft with a low overvoltage setting.
Specifications
- 26 amp-hours @ 10-hour rate
- Peak Current: 2,300 amps
- Available with a separate trolley (sold as an option)
- Dimensions: 19.2" L x 7.5" W x 11.5" H (49 x 19 x 29 cm)
- Complete Weight: 74 lbs. (33.6 kg)
- Not to be used as an aircraft battery charger
Features
This Quick Change battery pack is an all-in-one air portable/carry-on START PAC jump starter with built-in chargers, a power plug, and cables.
The unit has a 26V DC output, with universal chargers that will accept 90V to 240V AC 50/60 Hz.
NOTE: When storing the Start Pac for more than 30 days, remove the battery box from the charging unit and store it separately.
| General Information | |
|---|---|
| Part # | 2326QC |
| Manufacturer | Start Pac |
| Warranty | |
|---|---|
| Details | 1 Year Limited Warranty - View Details |
| Shipping Information | |
|---|---|
| Product Weight | 69 lbs. |
| Product Dimensions | 19.2 x 11.5 x 7.5 in. |
| ECCN | EAR99 |
