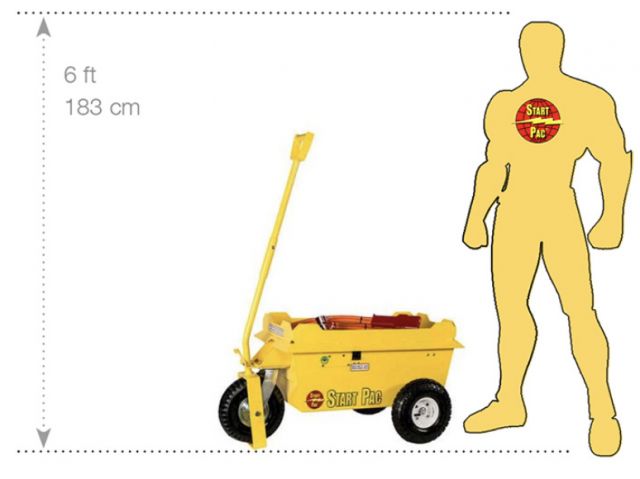

Start Pac 3326-Special 26V Aircraft Battery Starter

The START PAC 3326 Special is designed to perform repeated superior starting functions for voltage-sensitive turbine engines. Indeed, it will start any turbine or a piston engine. It is rated at 2800 peak starting amps and is a full 26 Volt battery pack (27.6 volts at rest).

Specifications

• Battery type: Lead-acid
• Voltage: 26 VDC
• Peak Current: 26 VDC
• Capacity @10 Amp Rate: 84 Ah
• Weight: 220lbs / 100kg
• Dimensions: 38″ x 21″ x 20″ 96.5 x 53.3 x 50.8 cm
• Charger: Built-in
• Float type charger input (must be specified on order): 110 VAC 50/60 hertz 220 VAC 50/60 hertz
• Charging time range: 30 minutes to 4 hours

Due to the extra starting power provided by the 26V batteries, turbine engines will experience faster and cooler engine start than most ship’s aircraft batteries (the turbine is spooled to more revolutions per second before fuel is injected). Thus, turbine life will be extended because there is less stress on the starter and other engine components. This will preserve the aircraft’s costly batteries and help lower operating costs. Your airborne, on-board battery can then be saved for emergency use only. As a START PAC secures all your engine starts, this unit will ensure that you have no downtime.

It can be used in remote locations using battery power to give extended time for cockpit maintenance checkout. Its large battery capacity will allow extended usage time when no AC power source is available

Additionally, the unit can be configured for 110 Volt or 220 Volt AC input.

The 3326 Special is coated in an environmentally responsible, low VOC powder coating, which protects it from wear, tear, and extreme weather conditions. Additionally, an all-weather cover is also available as an option to protect this unit further from inclement weather and to gain the maximum performance and product life.
