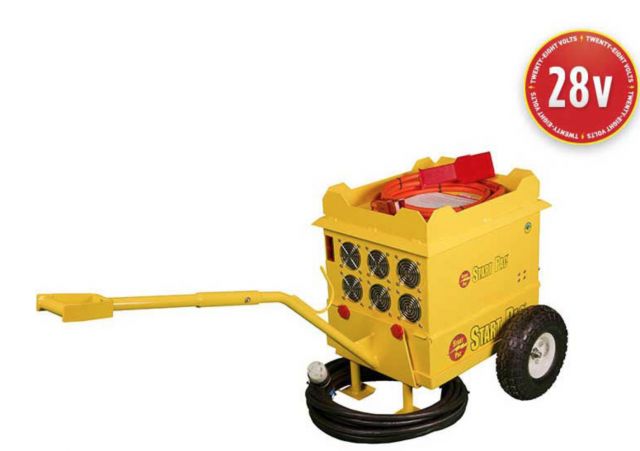

Start Pac 3328QC-200 (200 amps) 28V Power Supply & Battery Pack

The Start Pac 3328QC-200 amp GPU is a combination power supply and battery bank.

The 3328QC-200 combination ground power unit is designed for ground use and can be used on the ramp to conduct engine starting and will provide 28.5V of continuous clean no duty cycle power when plugged into 220V AC wall power. The 3328QC-200 is a full 28.5 Volt unit that will give faster, cooler engine starts on all turbine engines. The 200 Amp power supply is large enough to power higher draw aircraft systems.

Always recharge after use until the green charger light appears. Once charged, leave the unit plugged in. Avoid fully discharging the batteries as damage to the cells may result. To recharge the unit, simply plug it into an AC wall power outlet and leave it plugged in when not in use.

The high tech proprietary chargers will maintain 100% battery charge without over charging the batteries. Built with the only cost effective patented Quick Change design in the world, the batteries in this unit can be easily changed in a matter of seconds without tools, training, or downtime. The environmentally responsible low VOC powder coating protect the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather to gain the maximum performance and product life.

Power Supply / Charger Specifications

• Multi - unit 200 Amp DC continuous output
• 28 - 28.5 Volt output from 0 - 200 amp load
• Battery recharge time from fully discharged - 2 hours
• AC Input - 220 Volts

Batteries

• 26 Amp Hours at 10 hour rate
• 28 Volt DC - 30.5 Volts at rest
• Sealed cells non- hazardous
• Valve regulated high amperage output lead acid
• 2800 Peak Amps

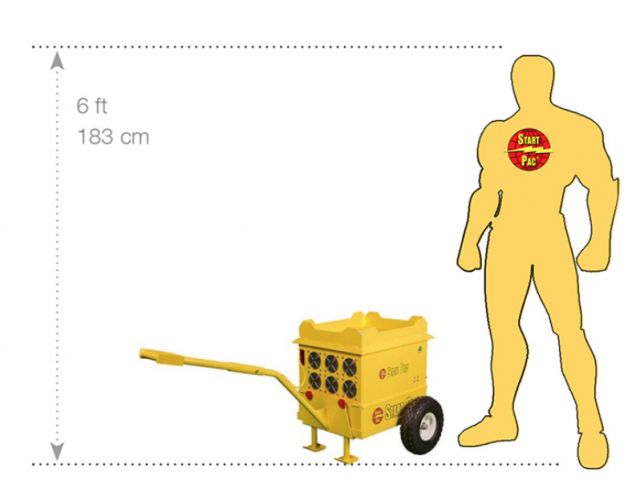

Dimensions

• Length - 38 inches (96.52 cm)
• Weight - 21 inches (53.34 cm)
• Height - 20 inches (50.8 cm)
• Handle Height - 48 inches (121.92 cm)
