Key Features:
• Accurate and Dependable: A 4000-count display ensures precise readings for critical electrical systems.
• Comprehensive Measurements: Accurately measure AC/DC voltage, resistance, and continuity for thorough troubleshooting.
• Capture Transient Events: Peak mode captures inrush currents for motor, relay, and solenoid diagnostics.
• Efficient Workflow: Data hold function freezes readings for easy analysis.
• Safety First: Designed to meet stringent aviation safety standards, including UL, CE, and IEC 1010.
Additional Benefits:
• Visual Aid: The bar graph clearly indicates the current level during frequency measurements.
• Extended Battery Life: Sleep mode conserves battery power when not in use.
• Complete Package: Includes carrying pouch, test leads, instruction manual, and battery for immediate use.

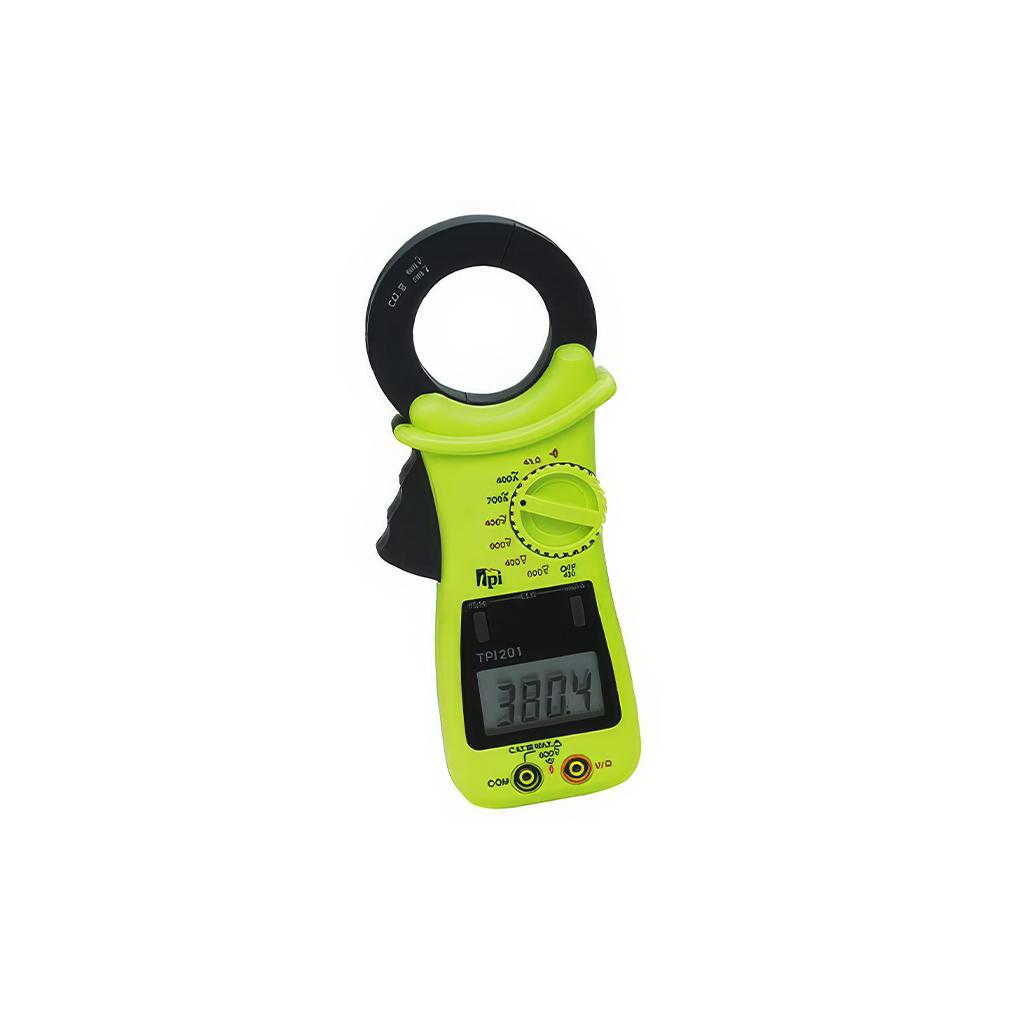

Whether you're working on aircraft electrical systems, avionics, or ground support equipment, the 291 Digital Clamp Meter Amp Plus provides the precision and reliability you need to get the job done right.
| General Information | |
|---|---|
| Part # | 291 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.35 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9030310000 |
| Specifications | |
|---|---|
| AC Amps (maximum) | 700A |
| AC Voltage (maximum) | 600V |
| Agency Approval | CEIEC 1010: CATIII; 600V cULus 61010 |
| Basic DC Accuracy | 0.75% |
| Basic Features | AC Volts, DC Volts, AC Amps, Resistance, Audible Continuity |
| DC Voltage (maximum) | 600V |
| Display Specifications | 4,000 Count |
| Overall Dimensions | 40mm x 190mm x 65mm (1.5in x 7.25in x 2.5in) |
| Range Selection | Manual |
| Resistance (maximum) | 4KΩ |
| Resolution (maximum) | 0.001V |
| Weight | 315g (11.1oz) |
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
