Key Benefits for Aviation:
• True RMS Accuracy: Delivers precise measurements in non-linear environments, ensuring reliable data for critical decisions.
• Wide Measurement Range: Accurately measure up to 400 amps AC/DC, handle various electrical loads, and capture peak motor startup amperage.
• Advanced Features: For comprehensive troubleshooting, benefit from non-contact voltage detection, temperature measurement, and a low ohm range.
• Efficient Workflow: Quickly identify electrical issues with the 11,000 count display, min/max, and data hold functions.
• Durable Construction: Built to withstand the rigors of aviation maintenance, providing long-lasting performance.
Specific Applications:
• Motor Drive Unit Analysis: Precisely measure the DC amperage of motor drive units up to 400 amps for efficient troubleshooting.
• Electrical System Troubleshooting: Quickly identify issues in wiring harnesses and components with the 11,000 count display and True RMS accuracy.
• Environmental Control System Optimization: Accurately measure temperature and current for optimal system performance.
• Avionics System Verification: Ensure component reliability with precise measurements and data analysis.

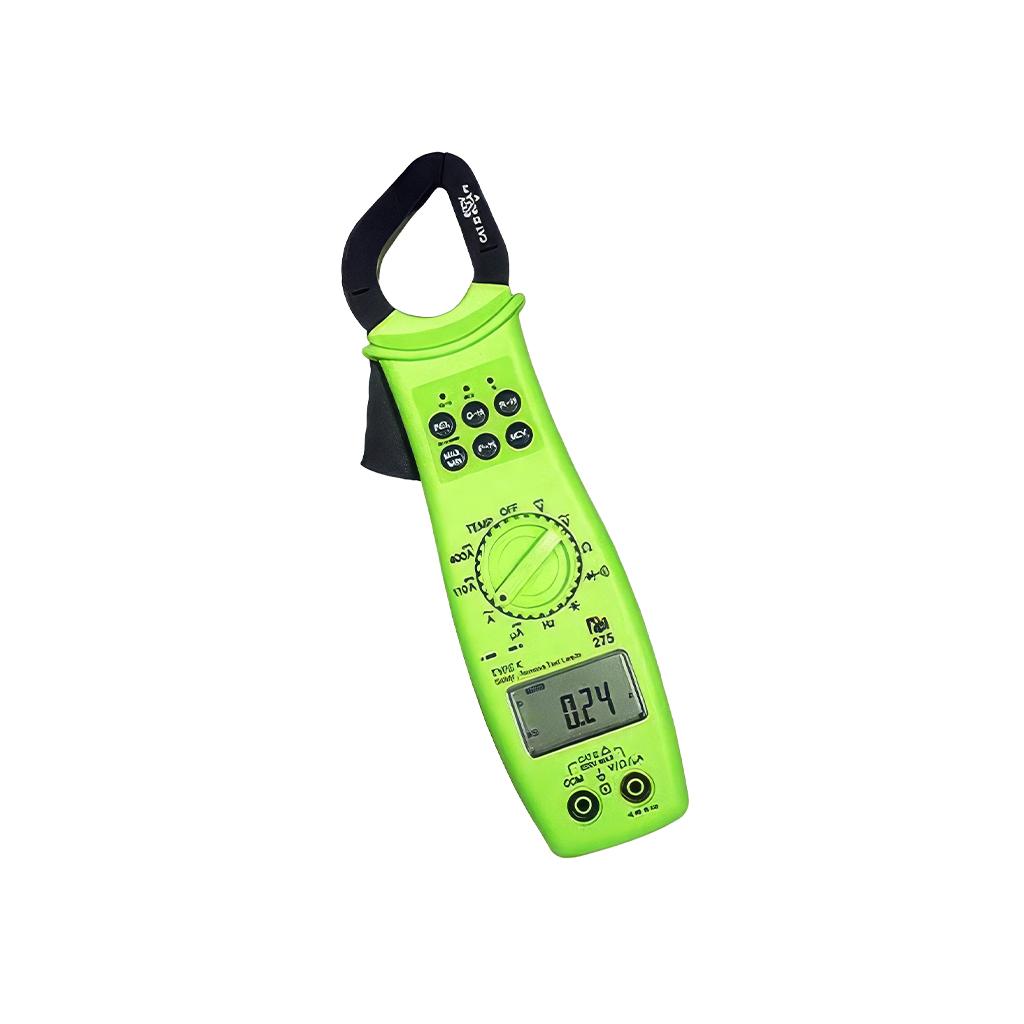

The Test Products International (TPI) 275 is more than just a tool; it's a precision instrument that enhances safety and efficiency in aviation maintenance.
| General Information | |
|---|---|
| Part # | 275 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.4 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9030310000 |
| Specifications | |
|---|---|
| 600V Resolution (maximum) | 0.1mVDC Amps (maximum) 400A |
| Agency Approval | CEIEC 1010 ,CATIII; 600V cULus 3111 |
| Basic DC Accuracy | 0.5%DC Voltage (maximum) 600V |
| Continuity | Buzzer sounds at approx. 35Ω Response time; 50ms |
| Overall Dimensions | 10” x 1.3” x 2.5” (255 x 32.5 x 65mm) |
| Resolution (maximum) | 0.1mVAC Voltage (maximum) 600V |
| Weight | .8 lbs (363g) |
Customers also viewed
with Spacer Blocks, 4.5" to 15", CE-Marked
Main/Nose Landing Gear Jack Pad Kit for Citation Sovereign 680 & Citation X 750
CE-Marked – Dornier DO328, Dornier DO328 Jet, Envoy 3
Fuel Sample (2-1/2) Tool - G280, Sikorsky CH-148, H-92 Superhawk, S-92
40" to 72", CE-Marked, Nose Landing Gear – Saab 340/2000 (NLG)
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
How does the non-contact voltage feature of this meter benefit me?
Answer:
The non-contact voltage feature of this digital clamp-on meter allows you to detect live circuits without using the test leads, enabling faster checks for the presence of voltage.
Asked September 9, 2024
Question:
Does this clamp-on meter measure temperature?
Answer:
Yes, this digital clamp-on meter has a temperature feature built in.
Asked September 9, 2024
Question:
Can this clamp-on meter measure DC microamps?
Answer:
Yes! This digital clamp-on meter can measure DC microamps by using the test leads. This is very useful for measuring flame safety control currents.
Asked September 9, 2024
