Key Benefits for Aviation:
• Unparalleled Accessibility: Effortlessly access and measure components in tight engine bays, electrical panels, and wiring harnesses.
• Comprehensive Diagnostics: Accurately measure current, voltage, resistance, capacitance, temperature, and more for in-depth troubleshooting.
• Enhanced Safety: Non-contact voltage detection helps prevent electrical shocks and protect technicians.
• Efficient Maintenance: Quickly identify and resolve electrical issues, minimizing aircraft downtime.
• Data-Driven Decisions: Capture and analyze electrical data with Min/Max/Record functions for informed maintenance planning.
Specific Applications:
• Engine Electrical System Analysis: Accurately measure current draw, troubleshoot ignition systems, and monitor starter performance.
• Wiring Harness Integrity: Quickly identify shorts, opens, and other electrical faults in complex wiring systems.
• Environmental Control System Diagnostics: Troubleshoot heating, ventilation, and air conditioning systems efficiently.
• Avionics System Testing: Verify component functionality and performance.

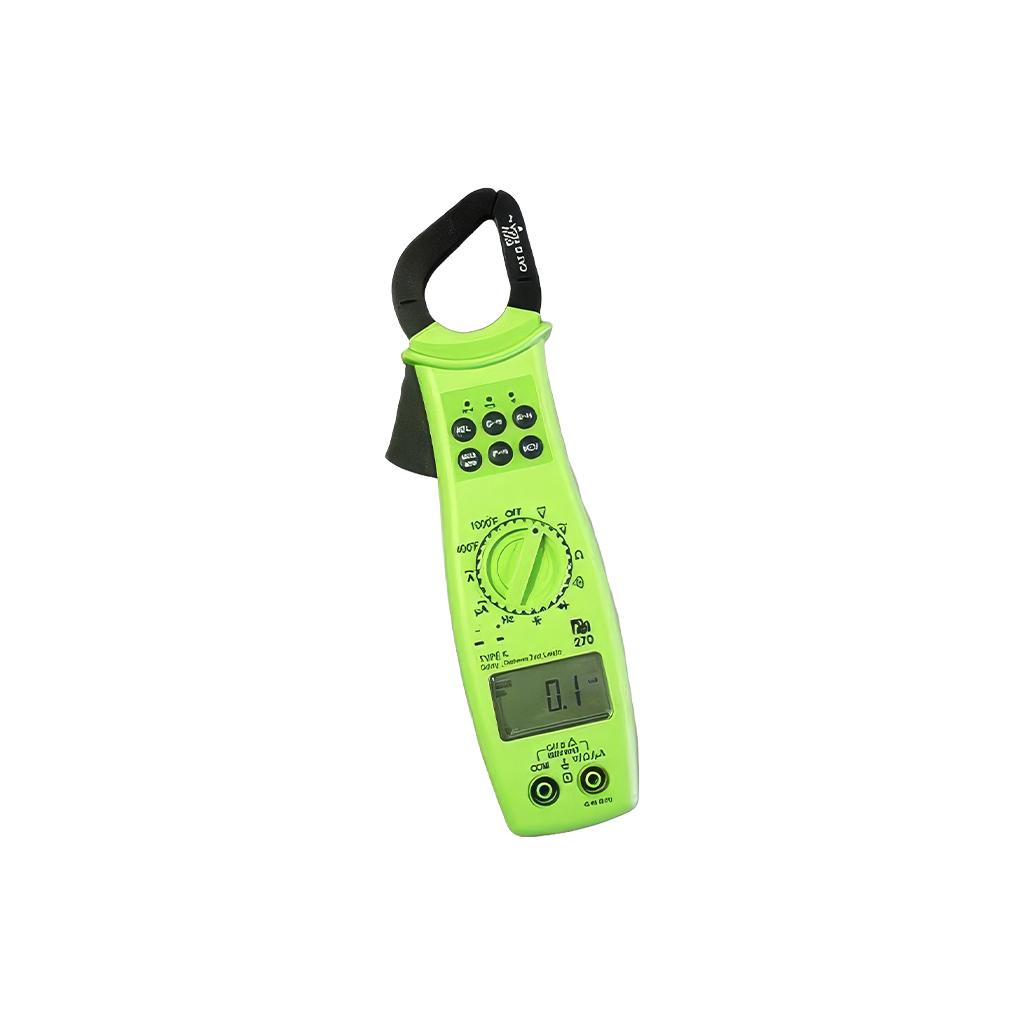

The Test Products International (TPI) 270 is more than a tool; it's your partner in ensuring aircraft reliability and safety.
| General Information | |
|---|---|
| Part # | 270 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.5 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9030310000 |
| Specifications | |
|---|---|
| 600V Resolution (maximum) | 0.1mV |
| AC Amps (maximum) | 400A |
| AC Voltage (maximum) | 600V |
| Agency Approval | CEIEC 1010, CATIII; 600V cULus 61010 |
| Basic DC Accuracy | 0.5% |
| Capacitance (maximum) | 4,000μF |
| Continuity | Buzzer sounds at approx. 35Ω Response time; 50ms |
| DC Amps (maximum) | 400μA |
| DC Voltage (maximum) | 600V |
| Diode | Test Current Max 1.5mA |
| Frequency (maximum) | 400MHz |
| Overall Dimensions | 10” x 1.3” x 2.5” (255 x 32.5 x 65mm) |
| Resistance (maximum) | 40MΩ |
| Resolution (maximum) | 0.1mV |
| Temperature (maximum) | 1,000°F |
| Weight | .8 lbs (363g) |
Customers also viewed
46" to 89", CE-Marked – Select Boeing/McDonnell Douglas Aircraft
30" to 64", CE-Marked
with Spacer Blocks, 3" to 8", CE-Marked – T-6A Texan II, Pilatus PC-9
11 GPM (60Hz), 9 GPM (50Hz), 750-5000 PSI, 25 HP
34 GPM (60Hz), 28 GPM (50Hz), 250-3500 PSI, 75 HP (High Voltage)
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
How does the non-contact voltage feature of this meter benefit me?
Answer:
The non-contact voltage feature of this digital clamp-on meter allows you to detect live circuits without using the test leads, enabling faster checks for the presence of voltage.
Asked September 9, 2024
Question:
Does this clamp-on meter measure temperature?
Answer:
Yes, this digital clamp-on meter has a temperature feature built in.
Asked September 9, 2024
Question:
Can this clamp-on meter measure DC microamps?
Answer:
Yes! This digital clamp-on meter can measure DC microamps by using the test leads. This is very useful for measuring flame safety control currents.
Asked September 9, 2024
