Key Benefits for Aviation:
• Unmatched Accessibility: The slim jaw design effortlessly navigates cramped engine bays, electrical panels, and wiring harnesses.
• Versatile Measurements: Accurately measure current, voltage, resistance, capacitance, and frequency for comprehensive troubleshooting.
• Rapid Troubleshooting: Quickly identify electrical issues and minimize downtime with essential diagnostic functions.
• Durable Construction: Built to withstand the rigors of aviation maintenance, ensuring long-lasting performance.
Specific Applications:
• Engine Compartment Diagnostics: Accurately measure current draw and troubleshoot electrical components.
• Wiring Harness Inspection: Quickly identify short circuits, open circuits, and other electrical faults.
• Avionics System Testing: Verify component functionality and troubleshoot malfunctions.
• Environmental Control System Maintenance: Diagnose and repair electrical issues affecting passenger comfort.

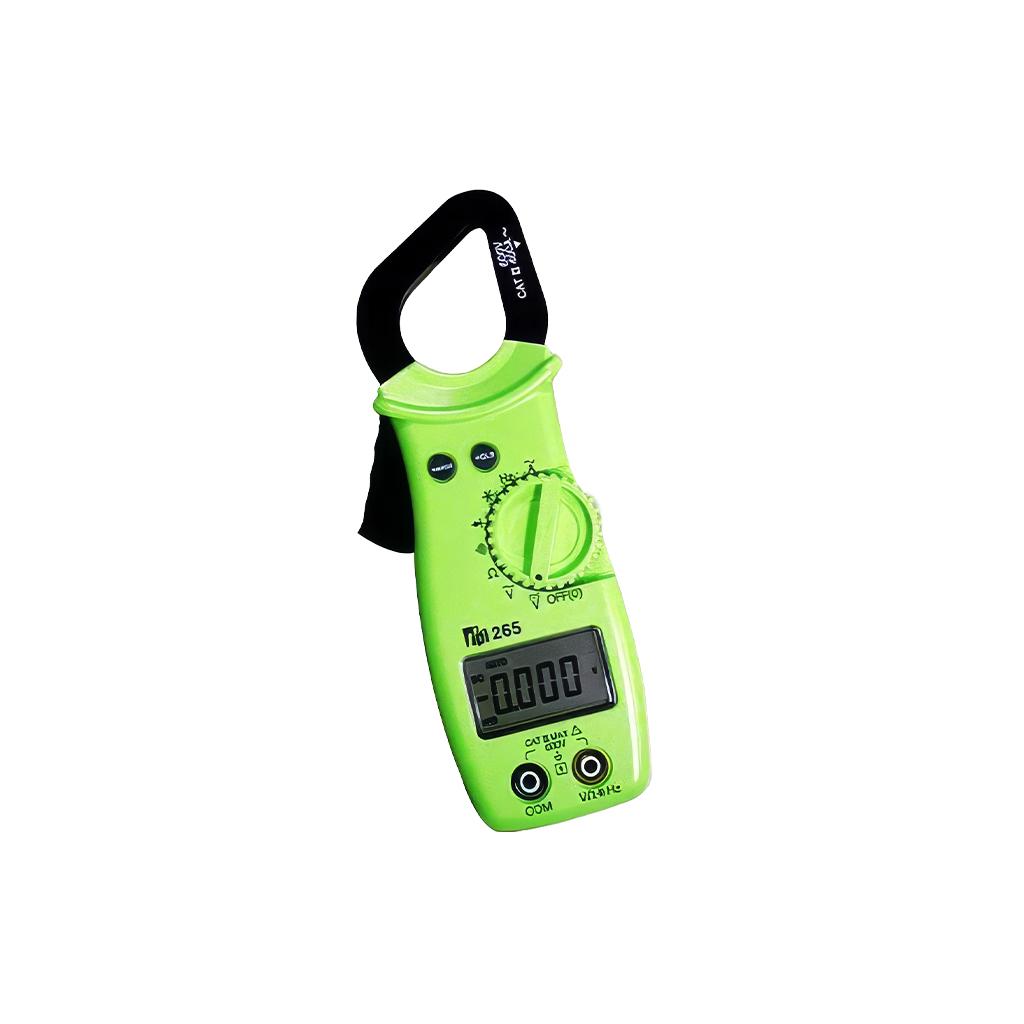

The Test Products International (TPI) 265 is more than just a tool; it's your partner in ensuring aircraft reliability and safety.
| General Information | |
|---|---|
| Part # | 265 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.25 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9030310000 |
| Specifications | |
|---|---|
| 600V Resolution (maximum) | 0.1mV |
| AC Amps (maximum) | 400A |
| AC Voltage (maximum) | 600V |
| Basic DC Accuracy | 0.5% |
| Capacitance (maximum) | 4,000μF |
| Continuity | Buzzer sounds at approx. 35Ω Response time; 50ms |
| DC Voltage (maximum) | 600V |
| Diode | Test Current Max 1.5mA |
| Frequency (maximum) | 400MHz |
| Overall Dimensions | 8” x 1.5” x 3.0” (203 x 38.1 x 76.2mm) |
| Resistance (maximum) | 40MΩ |
| Resolution (maximum) | 0.1mV |
| Weight | .6 lbs (272g) |
Customers also viewed
30" to 64", CE-Marked
with Spacer Blocks, 3" to 8", CE-Marked – T-6A Texan II, Pilatus PC-9
Fuel Sample - Boeing 787
1800/1801 Series couplings, AN -4 (1/4"), rated for Skydrol (Phosphate Ester), 1000 PSIG max, MIL-C-25427A / AS1709
1800/1801 Series couplings, AN -4 (1/4"), rated for Hydraulic (MIL-H-5606/83282), 1000 PSIG max, MIL-C-25427A / AS1709
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Can this meter be used to measure DC microamps?
Answer:
Although not a built-in feature, this clamp-on meter can measure DC microamps when used in conjunction with the optional A213 adapter.
Asked September 9, 2024
