Key Features:
• Versatile Measurement: Accurately measure RPM and surface speed of engines, APUs, pumps, fans, gears, and other rotating components.
• Contact and Non-Contact Options: Adapt to various measurement scenarios with both contact and photo tachometer functions.
• Wide Measurement Range: Accurately measure speeds from 6 to 30,000 RPM, covering a broad range of aircraft components.
• Data Retention: Save and recall last, maximum, and minimum measurements for trend analysis and troubleshooting.
• Durable Construction: Built to withstand the rigors of aviation maintenance environments.

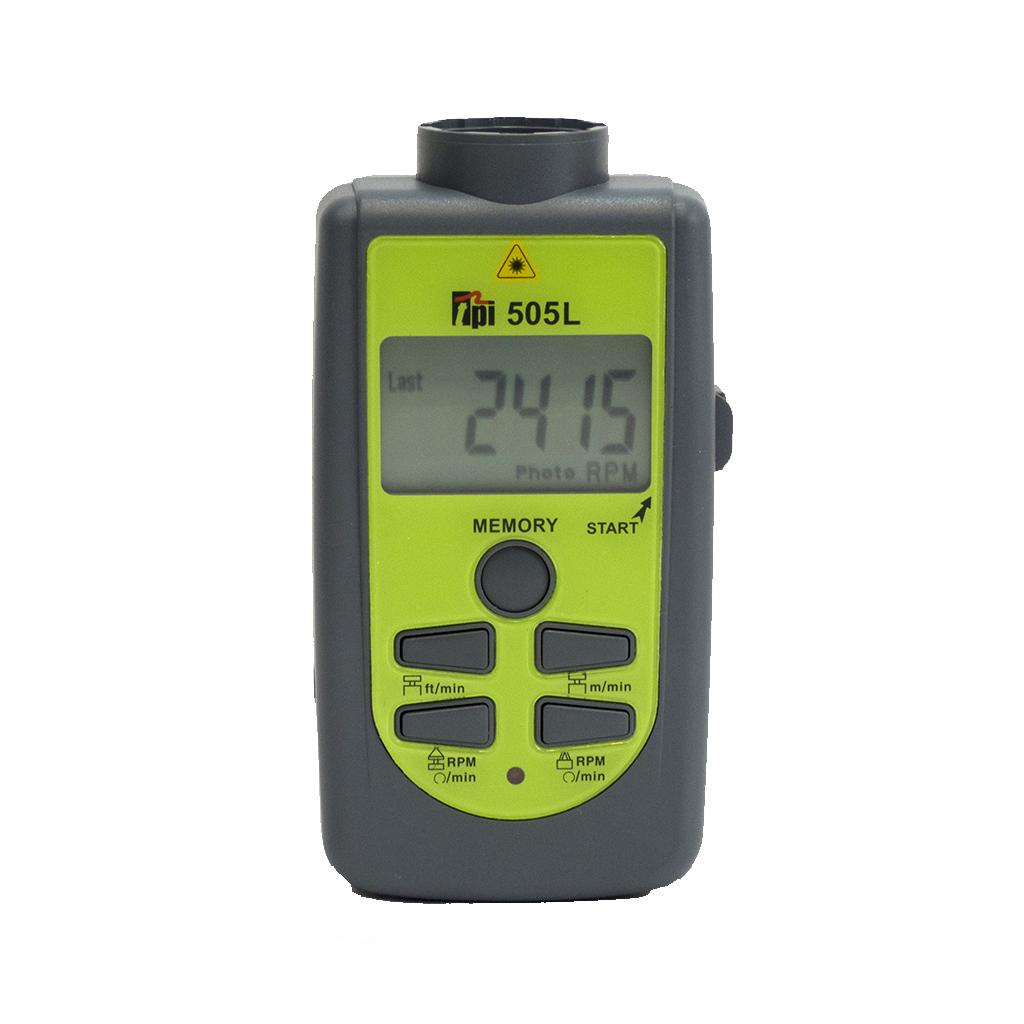

The Test Products International (TPI) 505L tachometer provides precise speed measurements, helping to diagnose engine and component issues, rotor balance, and optimize aircraft performance.
| General Information | |
|---|---|
| Part # | 505L |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.45 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9029205000 |
| Specifications | |
|---|---|
| Accuracy | ± 0.1% of FS + 1 digit ± 0.1% of FS + 1 digit |
| Contact Tachometer Accuracy | ± 0.1% of FS + 1 digit |
| Contact Tachometer Range | 6 - 20,000 RPM |
| Detection Type | Laser reflection |
| Display Type | 5 Digit LCD |
| Laser Output | Class II 635~670nm |
| Maximum Distance from Target (photo mode) | 25 Feet |
| Operating Humidity | 80% Max. R.H |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Photo Tachometer Accuracy | ± 0.1% of FS + 1 digit |
| Photo Tachometer Range | 6 - 30,000 RPM |
| Power Supply | AA Alkaline Batteries (2 each) |
| Signal Output | +5V pulsed |
| Surface Speed | 0.9 - 3,046 m/min |
| Tripod Connection | 1/4 inch |
