Key Features:
• Ultra-Sensitive Detection: Detects combustible gases as low as 10 ppm, providing early warning of potential leaks.
• Versatile Detection: Detects a wide range of combustible gases, including methane, propane, butane, gasoline, and more.
• Clear Display: Displays ppm and %LEL leak levels for comprehensive analysis.
• Adjustable "Tic" Rate: Pinpoints leak sources accurately by filtering out background gas interference.
• Durable Construction: Designed to withstand the rigors of aviation maintenance environments.
• User-Friendly Operation: Simple one-hand operation for efficient leak detection.

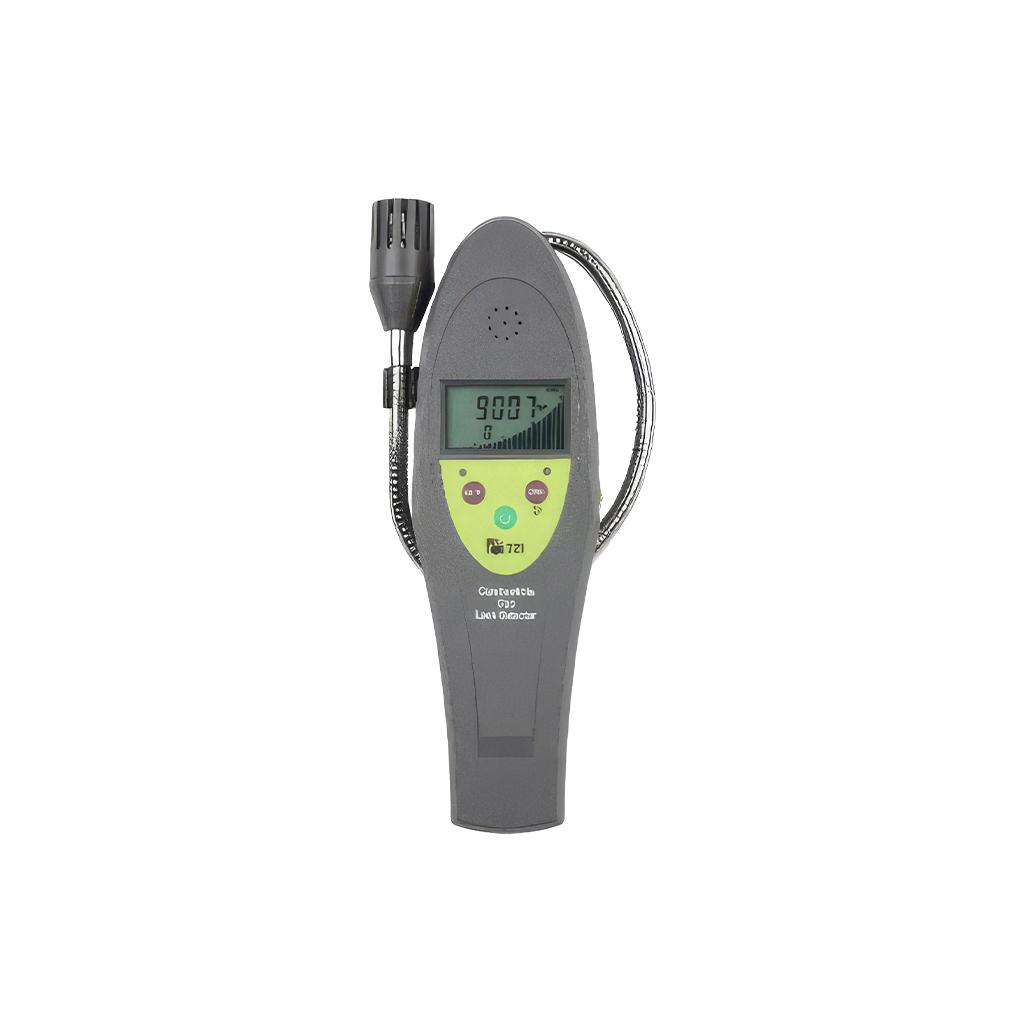

The Test Products International (TPI) 721 provides rapid and accurate gas leak detection, helping maintain aircraft safety, prevent fuel loss, and ensure optimal aircraft performance.
| General Information | |
|---|---|
| Part # | 721 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.45 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9027100000 |
| Specifications | |
|---|---|
| %LEL Indication | Yes, 0% to 19.9% |
| Accuracy | +/-10% |
| Adjustable Tic Rate | Yes |
| Alarm | Audible / Visual (User settable) |
| Battery | “C” cell (2) |
| Combustible Gasses Detected (Partial List) | Acetone, Acetylene, Alcohol, Ammonia, Benzene, Butane, Ethanol, Ethylene Oxide, Gasoline, Hexane, Hydrogen, Methane, Naphtha, Natural Gas, Paint Thinners, Propane, Solvents |
| Display type | Dual display with backlight |
| Internal Sample Pump | No |
| Intrinsic Safety Rated | No |
| Leak Detection Sensitivity | 10ppm (methane) |
| Leak Indication | Audio / Visual |
| Leak Level Read Out | Yes, 0 to 9999ppm |
| Probe Length | 16” |
| Sensor Type | Low power semiconductor |
| Stepped ppm read out | Yes, 0, 500, 1000, 3000, 5000, 9999ppm |
| Weight | 1.1 lb |
Customers also viewed
Tow up to 125,000 lbs
High Speed Cargo Tractor - Gas - Tow up to 55,000 lbs.
406 AF Emergency Locator Transmitter (ELT)
90 kVA Diesel Ground Power Unit (GPU)
Mono & Stereo Pilot Headset - 24 dB Noise Reduction Rating (NRR)
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
