Key Features:
• Comprehensive Vibration Analysis: Measures vibration, analyzes bearing condition and identifies potential issues like imbalance, misalignment, and looseness.
• Early Fault Detection: Built-in ISO alarms and bearing damage unit (BDU) readings provide early warnings of developing problems.
• Detailed Analysis: 800-line spectrum analysis for in-depth investigation of vibration patterns.
• Data Management: Collect, store, and trend vibration data for predictive maintenance.
• User-Friendly Design: Intuitive interface and wireless charging for convenient operation.
• Rugged Construction: Built to withstand the demanding conditions of aviation maintenance environments.

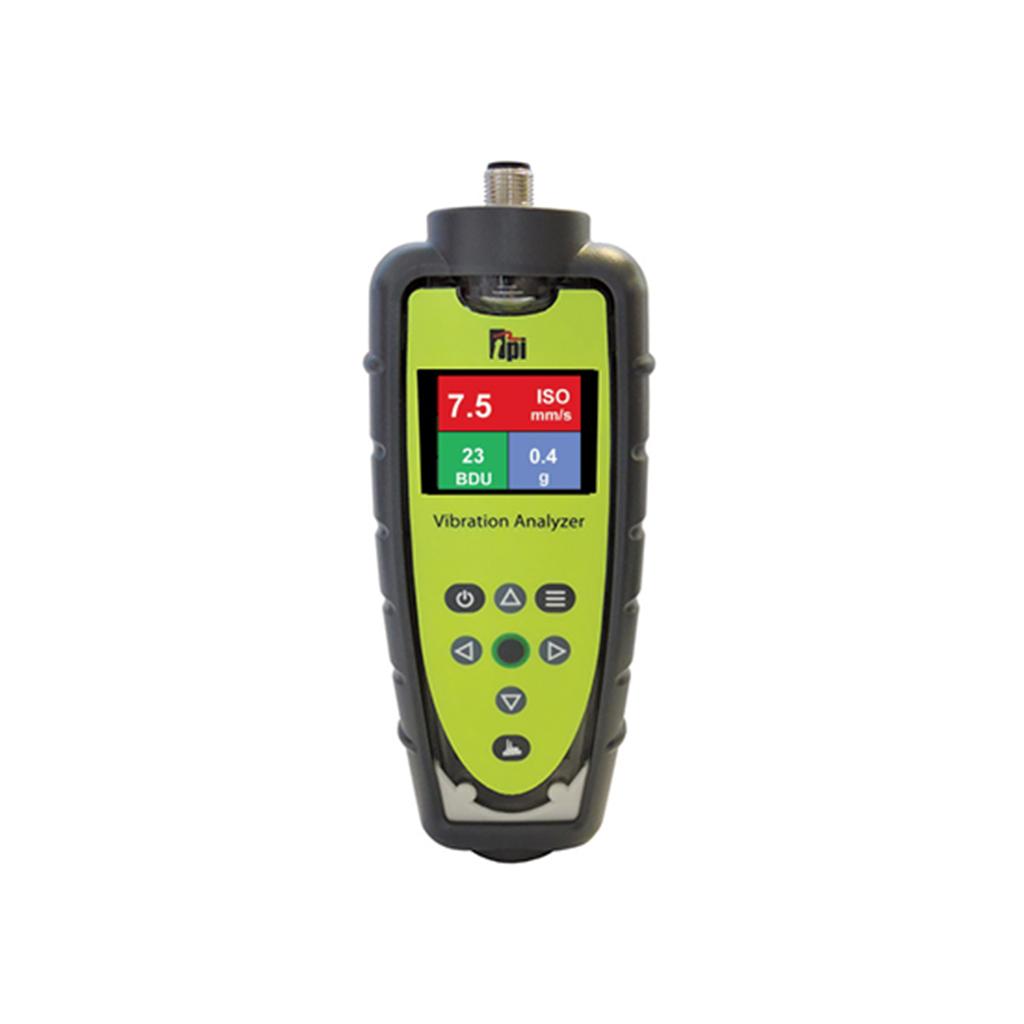

By providing advanced vibration analysis and condition monitoring capabilities, the Test Products International (TPI) 9084 Smart Vibration Analyzer helps optimize aircraft maintenance, reduce downtime, and ensure the overall reliability of aircraft components.
| General Information | |
|---|---|
| Part # | 9084 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.5 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9031900000 |
| Specifications | |
|---|---|
| Accelerometer connection | 5 pin MIL connector cable with magnet and temperature sensor |
| Battery life between charges | 1,500 measurements or approximately 50 hours of normal use |
| Communication | Bluetooth or USB docking station and cable to PC; data integration using software C-Trend II |
| Displayed amplitude units | Acceleration in g, Velocity in inches per second or mm per second, Bearing damage in BDU |
| Displayed displacement | Peak or peak to peak |
| Displayed frequency units | Hz, CPM or RPM |
| Dynamic range | 96 dB, Auto set up of VA bands |
| Environmental | Water: IP67 Waterproof, Operating: 32°F to 122°F (0°C to 50°C), Storage: -4°F to 158°F (-20°C to 70°C) |
| Frequency ranges | ISO: 2/10Hz - 1kHz, g: 10Hz - 10kHz, BDU: 1kHz - 10kHz, Accuracy: +/-5%, Frequency resolution: 800 lines |
| Input range | +/- 50 g |
| Power supply | Lithium ion wireless charging |
| Size | H 7.95” W 2.36” |
| Standard accessories | A9101 Low power accelerometer with A9105 cable, temp sensor and magnet, A9081A docking station with USB cable, Standard software and carrying |
Customers also viewed
8-Gallon Hydraulic Component Test Cart – Skydrol/PE Fluids
Filter Element Kit
IP67, Internal Sensor, 96 dB Dynamic Range
BNC Connector, IP67, 72 dB
Powerful neodymium magnet mount for mounting your devices on magnetic surfaces
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
