Key Features:
• Rapid Vibration Analysis: Instantly analyzes vibration signals to pinpoint problems.
• Early Fault Detection: Identifies potential issues through built-in ISO alarms and bearing damage unit (BDU) readings.
• Detailed Analysis: Offers 800-line spectrum analysis for in-depth investigation of vibration patterns.
• Data Management: Stores vibration data for trend analysis and predictive maintenance.
• Rugged Design: Built to withstand the demanding conditions of aircraft maintenance environments.

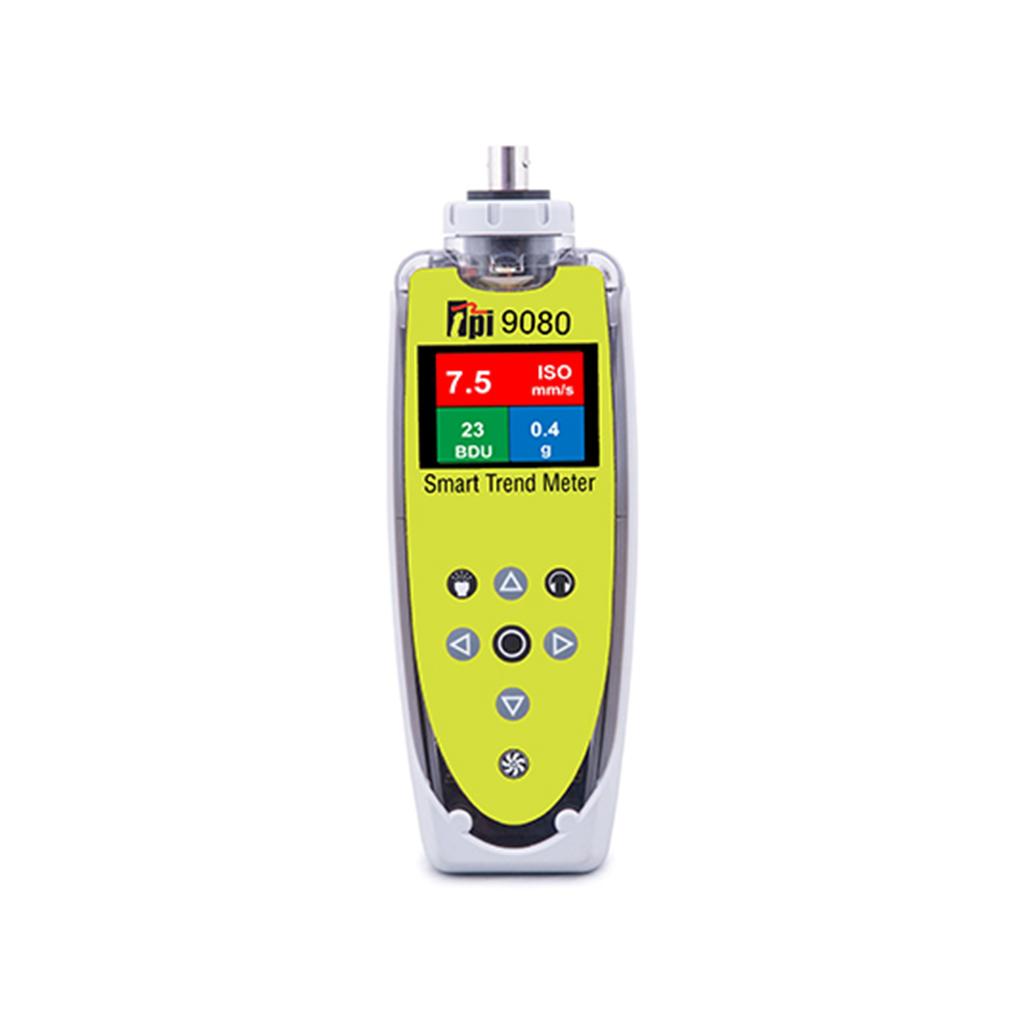

By providing real-time vibration analysis, the Test Products International (TPI) 9080 enables maintenance teams to proactively address potential issues, reducing downtime, improving aircraft safety, and optimizing operational efficiency.
| General Information | |
|---|---|
| Part # | 9080 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.5 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9031900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Accessories | A9081 PC docking cradle – USB connection, A9087 Nylon carrying case |
| Alignment | 2x RPM |
| Battery life | Auto power OFF – typically 20 hours continuous operating time depending on brightness setting. |
| Displayed amplitude units | Acceleration in g, Velocity in mm/s (or inch/s), Bearing noise in BOU (bearing damage units), Displacement (mm, microns, inch) |
| Displayed Frequency Units | Hertz (Hz), RPM or CPM |
| Dynamic range | 96 dB (0.01g resolution) |
| Environmental | Water, Sand & Dust: IP67 Waterproof, Operating: 0°C to 50°C, Storage: -20°c to 70°C |
| Frequency range | 2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU) |
| Input range | User selectable with accelerometer sensitivity |
| Looseness | 3x RPM |
| Max frequency resolution | 1.25 Hz @ 800 lines FFT setting |
| Options | A9082 Strobe attachment, A9080 Bluetooth ear defenders/headphones, A9084 100mm (4 inch) stinger, A9084 Vibtrend software full version |
| Power supply | 2 x AA batteries |
| Size | 200 mm x 60mm x 26mm |
| VA diagnostic bands (RPM = run speed) | Unbalance 1x RPM |
| Weight | 280g (not including ma |
