Key Features:
• Comprehensive Condition Monitoring: Measures vibration, bearing wear, and temperature for a holistic assessment of equipment health.
• Early Fault Detection: Built-in ISO alarms and bearing damage unit (BDU) readings provide early warnings of developing problems.
• Detailed Analysis: 800-line spectrum analysis for in-depth investigation of vibration patterns.
• Data Management: Collect, store, and trend vibration and temperature data for predictive maintenance.
• User-Friendly Design: Intuitive interface and wireless charging for convenient operation.
• Rugged Construction: Built to withstand the demanding conditions of aviation maintenance environments.

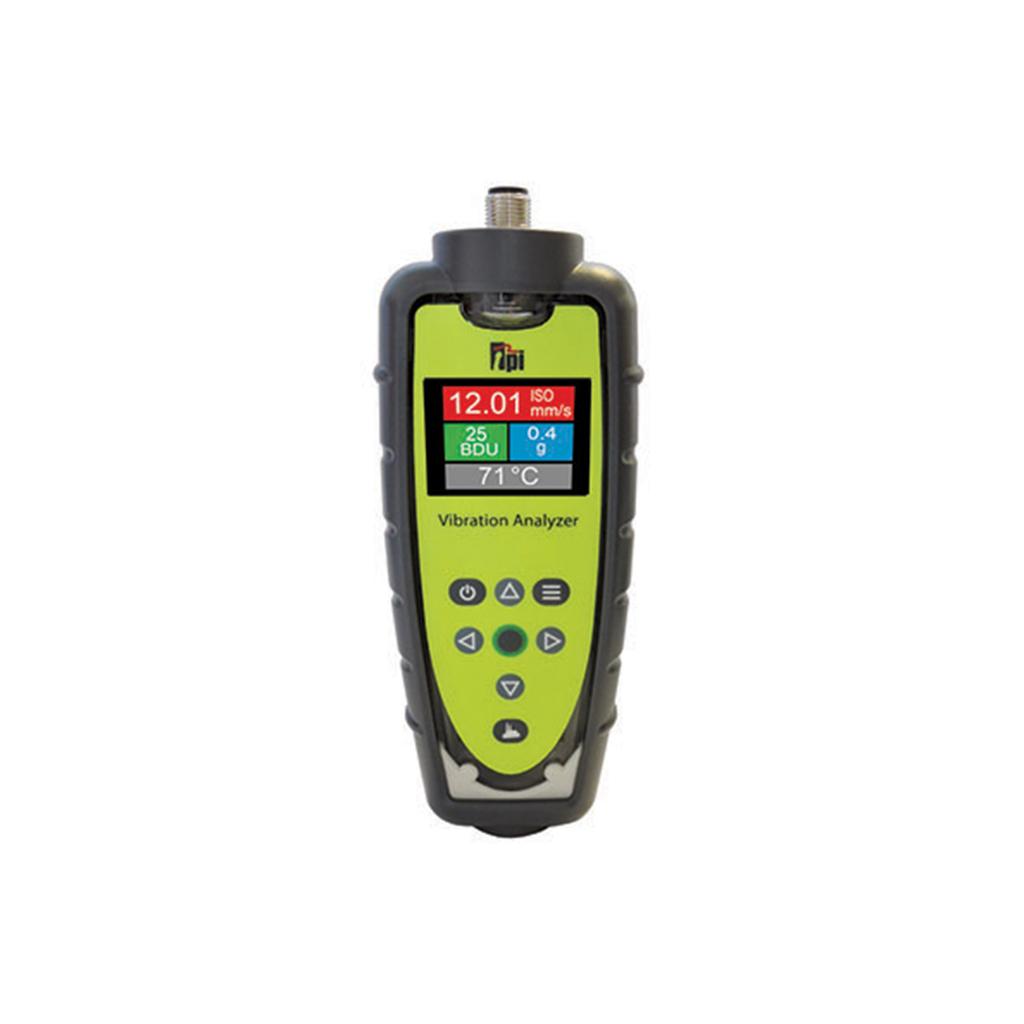

By providing advanced vibration and temperature analysis, the Test Products International (TPI) 9085 Smart Vibration Analyzer helps optimize aircraft maintenance, reduce downtime, and ensure the overall reliability of aircraft components.
| General Information | |
|---|---|
| Part # | 9085 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.5 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9031900000 |
| Specifications | |
|---|---|
| Accelerometer connection | 5 pin MIL connector cable with magnet and temperature sensor |
| Accuracy | (+/- 2°C), (+/- 4°F) |
| Battery life between charges | 1,500 measurements or approximately 50 hours of normal use |
| Communication | Bluetooth or USB docking station and cable to PC; data integration using software C-Trend II |
| Displayed amplitude units | Acceleration in g, Velocity in inches per second or mm per second, Bearing damage in BDU |
| Displayed displacement | Peak or peak to peak |
| Displayed frequency units | Hz, CPM or RPM |
| Displayed temperature range | -60°F to 300°F (-50°C to 150°C) |
| Dynamic range | 96 dB, Auto set up of VA bands |
| Environmental | Water: IP67 Waterproof, Operating: 32°F to 122°F (0°C to 50°C), Storage: -4°F to 158°F (-20°C to 70°C) |
| Frequency ranges | ISO: 2/10Hz - 1kHz, g: 10Hz - 10kHz, BDU: 1kHz - 10kHz, Accuracy: +/-5%, Frequency resolution: 800 lines |
| Input range | +/- 50 g |
| Power supply | Lithium ion wireless charging |
| Size | H 7.95” W 2.36” |
| Standard accessories | A9101 Low power accelerometer with A9105 cabl |
