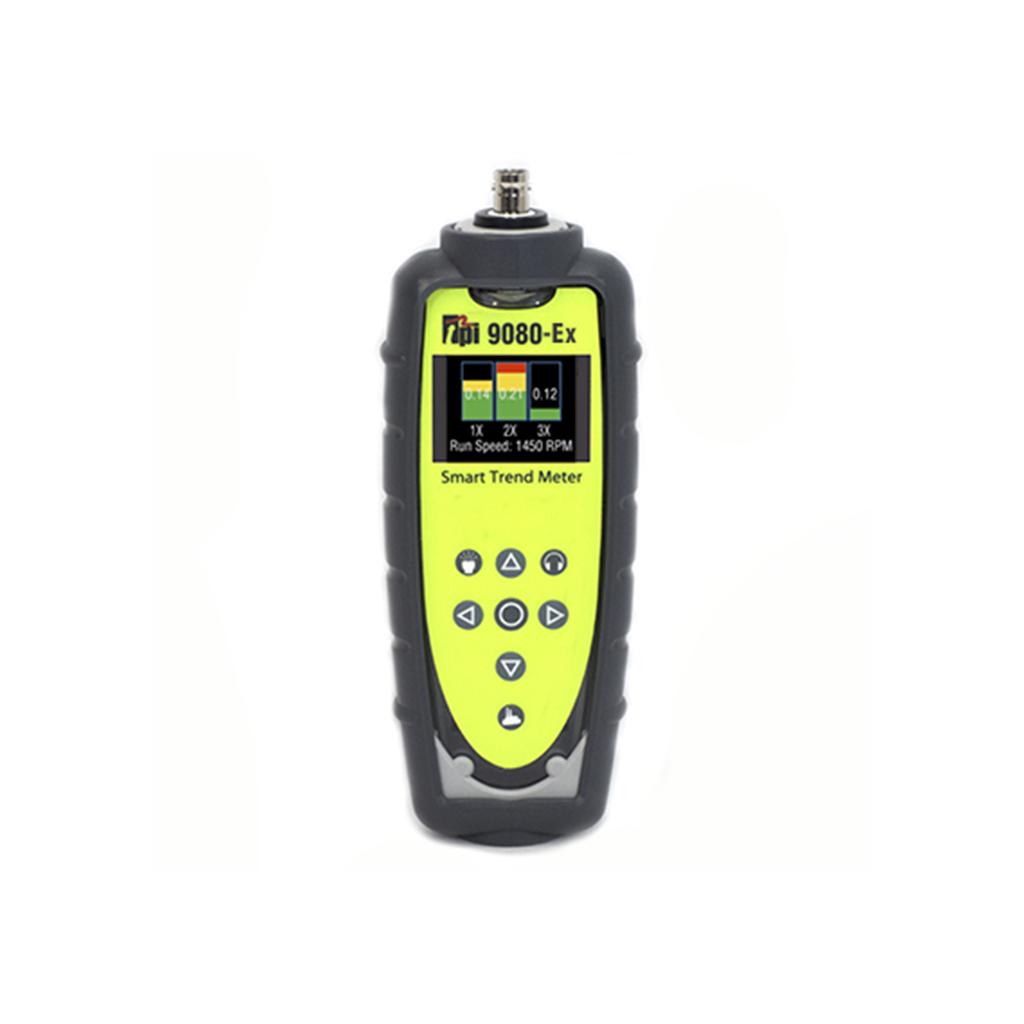

TPI 9080-Ex - Intrinsically Safe Vibration Analyzer
Key Features:
• Comprehensive Vibration Analysis: Accurately measures vibration, identifies potential issues such as unbalance, misalignment, and looseness, and assesses bearing condition.
• Smart Trend Analysis: Automatically tracks vibration trends over time, enabling early detection of developing problems.
• Intuitive Operation: User-friendly interface for easy data collection and analysis.
• Intrinsically Safe Design: Meets stringent safety standards for use in hazardous environments.
• Data Management: Store, analyze, and report vibration data for informed decision-making and maintenance planning.
• Optional Accessories: Expand functionality with Bluetooth headphones for bearing noise analysis and strobe attachment for speed measurement.
By providing advanced vibration analysis and condition monitoring capabilities, the Test Products International (TPI) 9080-Ex helps optimize aircraft maintenance, reduce downtime, and ensure the overall reliability of aircraft components.
Note: The 9080-Ex can be used with non-intrinsically safe accessories in nonhazardous areas. Only the 9080-Ex and A9093 intrinsically safe accelerometers should be taken into hazardous areas.
| General Information | |
|---|---|
| Part # | 9080-Ex |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.25 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9031900000 |
| Specifications | |
|---|---|
| Accelerometer connection | BNC connector cable with removable magnet (1mV/g – 10,000mV/g) |
| Auto set up of VA bands | True |
| Battery life | 2-years standby, 1,500 measurements or approximately 50 hours of normal use |
| Communication | Bluetooth or USB docking station and cable to PC; data integration using VibTrend software |
| Displayed Frequency Units | Hertz (Hz), CPM or RPM |
| Dynamic range | 96 dB (0.01g resolution) |
| Environmental | Water, Sand & Dust: IP67 Waterproof, Operating: (-20°C ≤ Ta ≤ +40°C), Storage: -20°C to 70°C (-4°F to 158°F) |
