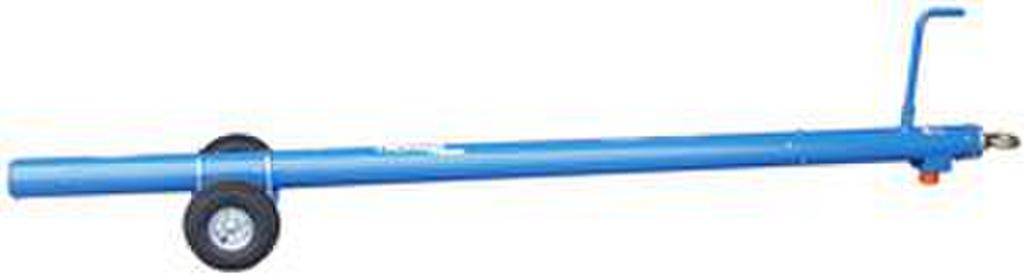

Tronair 01B1270-0010 – Multi-Head Towbar, 125,000-lb. Towing Capacity (CE)

The Tronair 01B1270-0010 is a multi-head aircraft towbar designed for use with the Tronair Series 800 Multi-Heads.

The multi-head towbar includes pneumatic tires with a steel skid at the tug end. The eyebolt at the towing end of the towbar incorporates a spring to dampen shock loads.

NOTE: This towbar requires a towbar head to fit your specific aircraft application. If you do not have a towbar head or need a quote on a head, please let us know the specific aircraft application at the time of requesting a quote.

Standard Features

• Attachment heads easily change and securely attach to the towbar in seconds
• Multi-head system saves space and capital investment
• Heavy-duty welded aluminum construction
• 3" (7.6 cm) I.D. towing eye
• Positive locking pin secures the attachment head to the towbar
• Both the towbar and attachments adhere to the aircraft manufacturer's towing specifications
• Heavy-duty shock assembly with single spring for nose gear protection during towing operation
• 10" (25 cm) pneumatic wheels with steel bearings and movable truck assembly
• Upright handle makes lifting easier
• CE marked
• Durable powder-coat finish (Tronair Blue)

Specifications

• Maximum Aircraft Gross Weight: 125,000 lbs. (56.7 metric tons)
• Length: 129.4" (328.8 cm) – from the eyebolt centerline to the end of the towbar
• Width: 22.75" (57.8 cm)
• Height: 8.6" (21.7 cm) – from the ground to the towbar centerline
• Tube: 4.5" (11.4 cm) diameter
• Weight: 126 lbs. (57.2 kg)
