Tronair 02-7803C0111 25 Ton DC-9 Aircraft Jack

Tronair 02-7803C0111
Manufacturer: Tronair
Part Number: 02-7803C0111
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Jack, Tripod 30 Ton (Ce) - With Air Pump - Boeing, Global 5000/6000, Gulfstream Aircraft
Tripod Jack - 10 Ton (CE) - 32 to 60 inches
Jack, Bonanza Tail Leveling
12 Ton Tripod Jack - 48 to 107 inches - With Air Pump
12 Ton Axle Jack (CE) - 4.5 to 15 inches

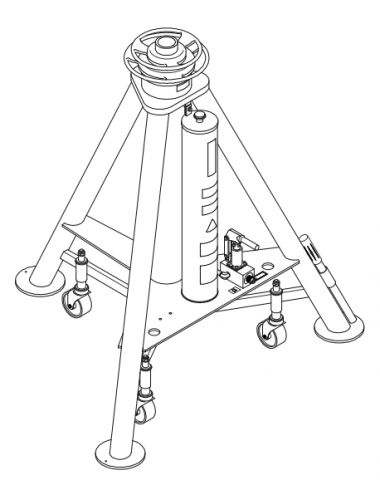

The Tronair 02-7803C0111 is an aircraft tripod jack with 25 ton capacity and for use on DC-9 series aircraft.

Quality Features

  • Steel Construction
  • Mechanical ram lock nut that prevents lowering of jack under load
  • Quick action mechanical extension
  • Single speed, manually operated pump with pressure relief
  • Uses standard MIL-PRF-5606 hydraulic fluid

Additional Details

  • Rated Capacity: 50,000 lbs
  • Minimum Closed Height: 54 inches
  • Mechanical Extension: 16-1/2 inches
  • Hydraulic Extension: 27 inches
  • Maximum Height Obtainable: 97-1/2 inches
  • Weight: 500 lbs
  • Pressure Relief Setting: 3250+300/-0 psig
  • BUNA 'N' Seals
Alternate Models
02-7803-0111Previous Model Number
Specifications
Hydraulic Extension27 (69) in (cm)
Fully Extended97 (246) in (cm)
Closed Height54 (137) in (cm)
Mechanical Extension16 (41) in (cm)
Capacity25 tons
Weight500 (227) lb (kg)
Single (S) or Multi (M) StageS
Replacement PartsQuote?
K-1106KIT, MANIFOLD ASSY
K-1001KIT, REPL. HAND PUMP SEAL
H-2329NUT, 30 TON STOP
K-1051KIT, REPL. SEAL, RAM
K-1686KIT, REPAIR AIR SEAL
K-2181KIT, JACK WELDMENT (D)
K-3218KIT, HANDWHEEL LOCKNUT
H-2395COVER, PROTECTIVE JACK
K-2920KIT, REPLACEMENT CASTER
G-1206NUT, RAM
R-1150EXTENSION, SCREW
HJ-557PAD, JACK
K-1043-28
K-1685KIT, REPAIR FLUID SEAL
TR-1176NUT, EXTENSION
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
BoeingDC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33
McDonnell DouglasDC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Freight Class70
Schedule B8425.42.0000
Servicing

We service the 02-7803C0111 and other items like it at our facility.

A few of the common services we offer for this item are:
• Load Test and Certification
• Seal Replacement
• Standard Repair / Maintenance
How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight. How often should jacks be load tested?
(Statement from Tronair) Tronair recommends functional load testing of hydraulic jacks on an annual (12-month) preventative maintenance cycle. Tronair also recommends load testing any time the jack seals have been replaced.

To request service for load testing a tripod jack, please contact us at the form below or visit us at the following link to request service - Aircraft Jack Load Test.
What seal kits can we replace?
We have the capability to replace the cylinder and hand pump seals on tripod jacks. Along with replacing the seals, we will provide load test certification as recommended by the manufacturer. To help with making the seal kit replacement process simple, we will help with shipping the jacks to and from our facility.
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 02-7803C0111. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Cylinder Seal Kits
• Pump Seal Kits
• Casters / Wheels
• Air Pump Kits
• Cover
• Ram Protection Ring
• Safety Pins
• Replacement Reservoir
• Jack Pads
• PDF Operating Manuals
Renting

We provide short-term and long-term rentals for the 02-7803C0111. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 02-7803C0111 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
