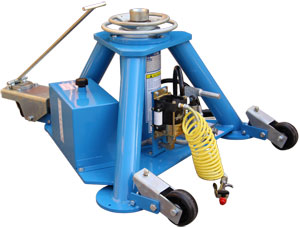

Tronair 02A7912C0100 – 12-Ton Tripod Jack, Air Pump

The two-stage hydraulic design of the Tronair 02A7912C0100 helps provide smoother lifting control while accommodating a wider range of aircraft jacking heights. This staged lifting action allows technicians to raise the aircraft gradually and maintain stability throughout maintenance procedures. Multi-stage aircraft tripod jacks are especially beneficial when servicing aircraft with varying fuselage or wing jack point clearances. Hydraulic stages extend sequentially from the largest diameter ram to the smallest for controlled operation.

The low 20” closed height allows the jack to fit beneath aircraft with limited ground clearance while simplifying positioning under fuselage or wing jacking points. This can help reduce setup time in crowded hangars and maintenance bays. Lower-profile tripod jacks are especially useful for regional jets and business aircraft that sit closer to the ground. The compact starting height also improves storage flexibility when the jack is not in use.

The factory-installed air pump helps technicians raise the ram more quickly compared to relying solely on manual hydraulic pumping. This can reduce operator fatigue during repetitive aircraft lifting operations while improving workflow efficiency in busy maintenance facilities. According to the operation manual, the recommended air supply pressure is 90 to 100 PSI for optimal pneumatic pump performance. The air-assisted lifting system also provides smoother initial extension during aircraft setup.

The jack is built with heavy-duty structural weldments, corrosion-resistant finishes, and aviation-grade hydraulic components designed for demanding maintenance environments. The durable powder-coat finish helps protect against exposure to hydraulic fluid, moisture, and general wear common in hangars and ramp operations. Tronair also provides detailed maintenance schedules, replacement seal kits, and spare parts support to help extend service life. Proper preventative maintenance can significantly improve long-term reliability and lifting performance.

Aircraft manufacturers generally require all tripod jacks to be raised and lowered simultaneously to maintain proper aircraft balance. Uneven lifting can place excessive stress on the fuselage, landing gear, or wing structures during maintenance operations. The Tronair operation manual specifically instructs technicians to raise and lower jacks together so the aircraft remains level throughout the procedure. This is especially important during landing gear servicing and structural inspections.

The ram locknut acts as a mechanical safety device that helps support the aircraft independently of hydraulic pressure. Technicians are instructed to keep the ram locknut close to the extending ram while lifting to help prevent unintended lowering in the event of hydraulic failure. The manual emphasizes that failure to use the ram locknut properly may result in serious injury or damage to equipment. This added layer of protection is critical during extended maintenance procedures.

Tronair recommends checking hydraulic fluid levels before each use, lubricating wheels every three months, and performing annual capacity testing. For low-usage or stored jacks, the manual recommends fully extending and retracting the ram every 90 days to help protect seals and prevent internal corrosion. Keeping the jack clean and free of debris can also help extend seal life and maintain proper hydraulic operation. Routine inspections for leaks, damaged threads, and worn components are essential for safe aircraft lifting.

MIL-PRF-5606 hydraulic fluid is widely used in aviation because it provides reliable performance across broad operating temperatures while remaining compatible with aircraft maintenance equipment. The fluid supports smooth hydraulic operation over a temperature range of -4°F to 122°F. Tronair specifies this aviation-approved fluid to help maintain seal integrity, corrosion resistance, and overall hydraulic reliability. Using the correct hydraulic fluid also helps reduce premature wear inside the pump and cylinder assemblies.

The hold-to-run air valve requires the technician to continuously engage the valve during pneumatic lifting operations. Releasing the control immediately stops upward ram movement, giving operators greater control during aircraft positioning. This feature helps reduce the risk of unintended lifting and improves precision when coordinating multiple jacks. Enhanced control is particularly valuable during delicate maintenance procedures that require careful aircraft leveling.

The jack can be transported using a crane and strap through the tripod top or moved with a forklift truck beneath the lower support structure. Heavy-duty wheels also allow technicians to manually reposition the jack around the hangar. For storage, Tronair recommends keeping the ram fully retracted and protecting the unit with a waterproof tarp or canvas when stored outdoors. Proper storage practices help minimize corrosion and extend equipment lifespan.
