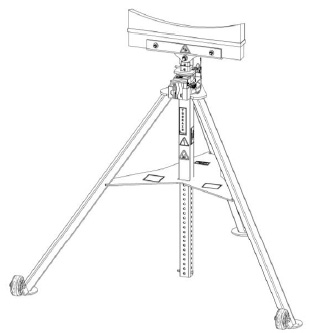

Tronair 03A5848C0000 Tail Stand with Alarm for Cessna Citation Latitude 680A Aircraft
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Ensure Safe Stabilization During Aircraft Maintenance
The Tronair 03A5848C0000 Tail Stand with Alarm is designed to provide superior support and safety while servicing Cessna Citation Latitude 680A aircraft. This tail stand is essential for stabilizing the aircraft during maintenance, ensuring that it remains securely positioned throughout the process.
Key Features
- Integrated Alarm System: An 85 dB alarm sounds when the applied load exceeds 100 to 150 lbs, warning technicians to adjust the load and avoid overloading the tailstand.
- Heavy Duty Design: Capable of supporting aircraft up to 109" in height, the tailstand offers maximum stability with its robust construction.
- Safety & Durability: Features include secure extension pin locks and a non-polluting design to ensure safe and efficient operation in various maintenance environments.
- Battery-Powered Alarm: The 9V battery-powered alarm provides long-lasting reliability, with a low battery warning when necessary.
Applications
- Specifically designed for use with Cessna Citation Latitude 680A aircraft, this tail stand is a critical tool for maintenance and jacking procedures.
Specifications
- Weight: 118 lbs (53.5 kg)
- Height: Adjustable from 55" to 109" (139.7 to 276.9 cm)
- Alarm: Powered by a 9V battery, 85 dB sound
- Material: Non-polluting construction
- Safety Features: Extension pin lock and personal protective equipment recommendations
Why Choose the Tronair 03A5848C0000 Tail Stand? With its high safety standards and precision engineering, this Tronair tail stand is perfect for safely stabilizing aircraft during maintenance. Its built-in alarm system ensures that operators can avoid overstressing the stand, offering a secure and reliable solution for Cessna Citation Latitude 680A servicing.
| General Information | |
|---|---|
| Part # | 03A5848C0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03A5848C0000 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 330 lbs. |
| Shipping Dimensions | 71 x 68 x 70 in. |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| EC-1179-01 | Terminal, Forked Tongue |
| EC-1787 | Joint, Wire |
| EC-1796 | Switch, Limit |
| EC-1854 | Battery, 9 Volt |
| G-1100-107030 | Bolt, Hex Head Grade 5, ⅜ - 16 x 3 Long |
| G-1100-107536 | Bolt, Hex Head Grade 5, ⅜ - 24 x 3 ¾ Long |
| G-1100-109522 | Bolt, Hex Head Grade 5, ½ - 20 x 2 ¼ Long |
| G-1100-109526 | Bolt, Hex Head Grade 5, ½ - 20 x 2 ¾ Long |
| G-1155-103210 | Screw, Soc HD Shoulder, ¼ x 1 Long |
| G-1159-103503 | Screw, Round HD Cross Rec #10 – 24 x ⅜ Long |
| G-1159-103505 | Screw, Round HD Cross Rec #10 – 32 x ⅝ Long |
| G-1163-10 | Screw, Hex Soc Cup Pint Set ¼ - 20 |
| G-1202-1035 | ESN #10 – 32 |
| G-1202-1070 | Stopnut, ⅜ - 16 Elastic |
| G-1202-1075 | Stopnut, ⅜ - 24 Elastic |
| G-1202-1095 | Stopnut, ½ - 24 Elastic |
| G-1203-1095 | Jamnut, ½ - 20 Elastic |
| G-1250-1030N | Flatwasher, #10 Narrow |
| G-1250-1070W | Flatwasher, ⅜ Wide |
| G-1250-1090N | Flatwasher, ½ Narrow |
| G-1493 | Pin 3/8 x 3 LG |
| H-1026-07.0 | Assembly, Lanyard |
| H-1901-01 | Grommet |
| H-2762 | Spring, Light Duty Die |
| H-5136 | Alarm |
| S-1923-01 | Cover, Limit |
| TR-1883 | Base |
| U-1002 | Wheel |
| V-1001 | Label, Made in USA |
| V-1197 | Label, Tronair |
| V-1198 | Label, Tronair |
| V-1779 | Label, Serial Number |
| V-1805 | Label, ISO General Danger |
| V-1996 | Label, Tailstand Caution |
| V-1997 | Label, Tailstand Instructions |
| V-1998 | Label, Max Capacity – 1K |
| V-1999 | Label, ISO Hand Crush |
| V-2000 | Label, ISO Foot Crush |
| V-2065 | Label, Tronair |
| Z-5723 | Assembly, Cradle |
| Z-5962-01 | Bracket, Tube |
| Z-6079 | Weldment, Cradle Support |
| Z-8750-01 | Weldment, Tailstand |
| Z-8775-01 | Weldment, First Extension Tube |
| Z-8776-01 | Weldment, Third Extension Tube |
| Z-8781-01 | Weldment, Second Extension Tube |
Customers also viewed
32" to 75", CE-Marked – Select Cessna/ATR Aircraft
for Select Bombardier & Dassault Aircraft
CPU Adapter Kit for Select Cessna Citation Aircraft
CE-Marked
– 1,000-lb Capacity
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Latitude 680A |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Grant, a Corporate Flight Department in Texas
04/05/2022 09:40:58 AM
Tail stand arrived quickly. It was well packaged and arrived undamaged. Price was competitive and the equipment was of great quality. I will do business with CGSE again. Their customer service is top notch.
