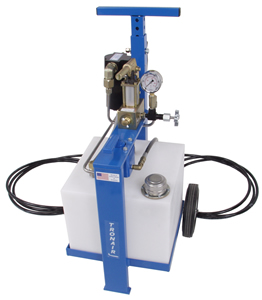

Fluid Service Unit - Tronair 06-5004-3600
Get a Quote or Ask a Question
Simply fill out the form below and you will receive a quote via email shortly.
| Name: | E-Mail: |
| Company Name: | Phone: (optional) |
| Questions/Comments: (optional) | |
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Skydrol Fluid Service Unit (CE) - 8 Gallon - 5000 PSI - Dual Hose Selector Valve
8 Gallon Fluid Service Unit with KHC-3560 Couplers - ERJ-170, ERJ-175, ERJ-190, ERJ-195, and Lineage 1000
Fluid Service Unit
Standard Features:
Standard Features:
- 8 gal (30 l) polyethylene reservoir
- 15 ft (4.6 m) #4 hose with 37ΓΒΊ JIC female swivel connector
- Shut off valve for static testing
- 2 micron filtration (beta rating > 2000 @ 4ΓΒ΅m per ISO 4572)
- Dual stage manual hand pump
- Stroke displacement: 2.1 cu in/stroke to 500 psi, .4 cu in/stroke to 5,000 psi
- 8 in (20 cm) semi-pneumatic tires
- Dual hose selector valve standard on 06-5004 and 06-5041 series only
- Sturdy welded steel construction
- 06-5004C0500 - CE marked
- Finish: Durable Powder Coat Tronair Blue
| Alternate Models | |
|---|---|
| 06-5004C3600 | New Part Number |
| Specifications | |
|---|---|
| Max Working Pressure | 3,000 (207) psi (bar) |
| Length | 19 (48) in (cm) |
| Height | 32 (81) in (cm) |
| Width | 19 (48) in (cm) |
| Pressure Gauge | 5,000 (345) psi (bar) |
| Fluid Type | Skydrol / Hyjet |
| Weight | 65 (29.5) lb (kg) |
| Replacement Parts | Quote? | |
|---|---|---|
| Z-1201-01 | Frame | |
| TF-1047-01*03.5 | Valve Return Hose | |
| U-1001-01 | Wheel | |
| HC-1042 | Pressure Gauge | |
| H-1009-01 | Pump Handle | |
| HC-1046-01 | Selector Valve | |
| Z-1083-01 | Handle | |
| TF-1041-05*180 | Hose | |
| HC-1035 | Hand Pump | |
| H-1802 | Tank | |
| HC-1030 | Breather | |
| HC-1101-02 | Shut-Off Valve | |
| TF-1030-01*10.0 | Pump Suction Hose | |
| HC-1084 | Filter Assembly | |
| V-1100 | Fluid Label | |
| Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you. | ||
| Compatible Aircraft* | |
|---|---|
| Embraer | ERJ-170, ERJ-175, ERJ-190, ERJ-195, Lineage 1000 |
| Sukhoi | SJ100 |
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
| Shipping Information | |
|---|---|
| Pkg. 1 Weight | 45 lbs. |
| Pkg. 1 Dimensions | 36 in. x 28 in. x 24 in. |
| Pkg. 1 Type | Carton |
| Freight Class | 85 |
| Schedule B | 8413.50.0080 |
Servicing
We service the 06-5004-3600 and other items like it at our facility.
Parts
As an authorized Tronair Distributor, we sell factory OEM parts for the 06-5004-3600. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
Renting
We provide short-term and long-term rentals for the 06-5004-3600. We will ship the item directly to you and arrange for pickup at the end of your lease.
