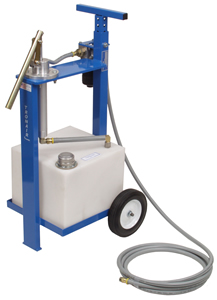

Tronair 06-5042-0500 Hydraulic Reservoir Service Unit, 8-Gallon Capacity

The Tronair 06-5042-0500 is designed to provide clean, filtered hydraulic fluid for servicing aircraft reservoirs – not for pressure testing or system pressurization. Compact and portable, the hand-pump design of this unit allows precise control when topping off aircraft hydraulic systems that use mineral-based hydraulic fluid.

This unit is specifically designed for MIL-PRF-5606 and MIL-PRF-83282 fluids. Using any other hydraulic fluid may contaminate the system, damage the seals, and void the manufacturer's warranty. Tronair includes fluid-specific hoses, pumps, and filter assemblies to ensure compatibility and prevent cross-contamination.

The maximum pressure rating for the 06-5042-0500 is 200 PSI (13.8 bar). This pressure range is suitable for filling most aircraft hydraulic reservoirs without risking damage to seals or fittings. The unit is not intended for hydraulic testing or charging high-pressure systems.

Yes. The manual specifies that the 06-5042-Series units arrive fully assembled, requiring only reservoir filling, handle adjustment, and priming the pump before initial use. This reduces setup time and ensures all components are properly aligned from the outset. Technicians can put the unit into service quickly with minimal preparation.

Preparation involves filling the internal reservoir with clean, approved fluid, adjusting the handle height, and pumping the unit several times to purge air from the line. Tronair emphasizes that only the correct fluid should be used to prevent contamination and seal deterioration. Once primed, the hose can be securely attached to the aircraft reservoir service fitting.

The filter is a non-bypass design, which means no fluid can pass through if the filter becomes obstructed. The manual states that technicians will experience very high handle force, indicating that the filter element must be replaced immediately to restore proper operation. This safeguard prevents unfiltered or contaminated fluid from entering the aircraft system.

Filter replacement intervals depend on the condition of the fluid and the frequency of usage. Tronair recommends at least annual replacement for low-usage units, with more frequent service when fluid samples indicate contamination or reduced flow. Regular filter changes help maintain clean fluid delivery and protect aircraft hydraulic systems.

No. The 06-5042-0500 model is not built for phosphate ester fluids such as Skydrol or HyJet. Tronair manufactures separate versions – 06-5042-3300 and 06-5042-3600 – designed specifically for those fluids, each with fluid-appropriate hoses, seals, and filter assemblies. Using the wrong unit can cause severe seal damage and hazardous contamination.

This reservoir service unit features an 8-gallon (30.3 L) tank. The high-capacity reservoir supports multiple servicing operations before needing to be refilled. This makes the unit well-suited for fleet maintenance or busy line-service environments.

The unit is equipped with a 15-foot (4.6 m) hose, providing ample reach for most hydraulic reservoir access points on corporate, regional, and general aviation aircraft. The generous hose length also reduces the need to reposition equipment during servicing operations. This helps maintain efficiency and safety around the aircraft.

Routine tasks include maintaining tire pressure at 45 to 50 PSI (3.1 to 3.5 bar), inspecting the filter, replacing seals as needed, and keeping the reservoir and hose fittings clean. The unit should also be stored indoors to protect seals and the pump mechanism from moisture and contamination. Following these steps ensures long-term reliability and accurate fluid delivery.

Yes. PJi offers a wide range of OEM replacement parts for this hydraulic reservoir service unit, including hoses, filters, O-rings, seals, wheels, and pump repair kits. Using only Tronair replacement parts helps maintain optimal performance and warranty coverage. The use of unauthorized parts can lead to leaks, premature wear, or unsafe operation.

The 06-5042-Series units come with a one-year limited warranty covering defects in materials and workmanship. Normal wear items and component manufacturer warranties are excluded from coverage. Unauthorized modifications immediately void the warranty.

No. Tronair explicitly prohibits modifications without written approval, stating that any unauthorized adjustments void the warranty and release the company from liability. The unit is engineered for safe operation within very specific fluid and pressure parameters, and modification can compromise both safety and certification. Always consult Tronair before altering any component.
