Tronair 06-5041-3610 Dual Output Skydrol Service Unit - Max 5000 PSI

Tronair 06-5041-3610
Manufacturer: Tronair
Part Number: 06-5041-3610
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Fluid Service Unit (Ce) - Skydrol / Hyjet - 2 Gallon Stainless Steel Reservoir
Fluid Service Unit - 8 Gallon - Skydrol - 3000 PSI
Skydrol Fluid Service Unit (CE) - 8 Gallon - 5000 PSI - Dual Hose Selector Valve
8 Gallon Fluid Service Unit - Dual Hose Selector Valve
Hydraulic Service Unit - 5606 / 83282 - Max 5000 PSIG Pressure

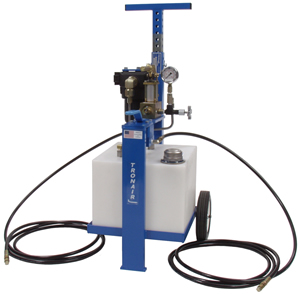

The Tronair 06-5041-3610 hydraulic service unit (HSU) is a compact unit designed to provide a source of clean, pressurized fluid for filling reservoirs, bleeding brakes and other maintenance functions.

Unit Specs

  • Tank Capacity: 8 gallons
  • Maximum Pressure: 500/5,000 psig
  • Fluid: Phosphate Ester
  • Filtration: 3 Micron
  • Weight: 65 lbs

Standard Features

  • 8 gal (30 l) polyethylene reservoir
  • 15 ft (4.6 m) #4 hose with 37 degree JIC female swivel connector
  • Shut off valve for static testing
  • 2 micron filtration (beta rating > 2000 @ 4um per ISO 4572)
  • Dual stage manual hand pump
  • Four-way valve for testing double acting cylinder
  • Stroke displacement: 2.1 cu in/stroke to 500 psi, .4 cu in/stroke to 5,000 psi
  • 5,000 psi high/low pump provides high flow and high pressure capability
  • 8 in (20 cm) semi-pneumatic tires
  • Dual hose selector valve
  • Sturdy welded steel construction
  • Finish: Durable Powder Coat Tronair Blue
Specifications
Max Working Pressure5,000 (345) psi (bar)
Length19 (48) in (cm)
Height32 (81) in (cm)
Width19 (48) in (cm)
Pressure Gauge6,000 (414) psi (bar)
Fluid TypeSkydrol / Hyjet
Weight65 (29.5) lb (kg)
Compatible Aircraft*
GulfstreamG100 (Astra SPX), G150
IAIAstra
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight75 lbs.
Pkg. 1 Dimensions37 in. x 25 in. x 29 in.
Pkg. 1 TypeCarton
Freight Class70
Freight NMFC184990
Schedule B8413.20.0000
Servicing

We service the 06-5041-3610 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul / Refurbishment
• New Pumps
• New Filters
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 06-5041-3610. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Filter Element Kit
• Pump Seal Kit
• Pump
• Replacement Reservoir
• Hose
• Aircraft Service Couplers
Renting

We provide short-term and long-term rentals for the 06-5041-3610. We will ship the item directly to you and arrange for pickup at the end of your lease.
