Tronair 06-5009-6500 - 5606 / 83282 Fluid Service Unit
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Tronair 06-5009C6500 (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

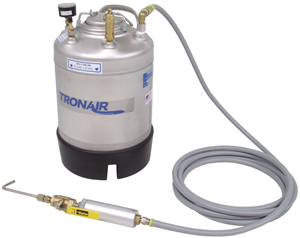

The Tronair 06-5009-6500 is a stainless steel portable 5606 / 83828 aircraft hydraulic fluid service unit that is 2.5 gallons, and can be charged with shop air or nitrogen
It is a mobile unit designed to provide a source of clean, pressurized fluid for remotely servicing reservoirs and other maintenance functions. This unit will retain enough air pressure for proper operation for an eight hour period. Thereafter, recharging may be required. These stainless steel units to supply filtered fluids for filling reservoirs.
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
Specifications
- Maximum Pressure: 125 psi (8.6 bar)
- Filter: 2 micron
- Dimensions: 9-1/2" diameter (24 cm) / 16-7/8" high (42.8 cm)
- Weight: 44 lbs (19.8 kg)
- Capacity: 2.5 gallons (9.5 liters)
- 15 ft (4.6 m) hose
- Large filtered fill port
- Inline filter
| General Information | |
|---|---|
| Part # | 06-5009-6500 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 23.2 lbs. |
| Shipping Dimensions | 22.5 x 16.5 x 13.3 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Fluid Type | MIL-PRF-5606 / MIL-PRF-83282 |
| Height | 17 (43) in (cm) |
| Length | 10 (25) in (cm) |
| Weight | 15 (6.8) lb (kg) |
| Width | 10 (25) in (cm) |
| Spare Parts | |
|---|---|
| H-1216 | VESSEL, PRESSURE |
| H-1221 | VALVE, AIR |
| HC-1149 | ASSEMBLY, TUBE W/NUT |
| HC-1400 | O-RING, CLOSURE |
| HC-1425-01 | VALVE, BALL |
| HC-1831 | GAUGE,PRESSURE 0-160 PSI |
| HC-2141 | FILTER, IN-LINE (VITON) |
| K-3659 | KIT, ELEMENT (VITON) |
| N-2005-04-S | ELBOW, MALE |
| N-2007-05-S-B | CONNECTOR, STR THD |
| N-2009-04-S | CONNECTOR, MALE |
| N-2026-01-S | SWIVEL, JIC 37 DEG |
| N-2210-02-S | REDUCER, PIPE THREAD |
| N-2214-03-S-B | CONNECTOR, STRAIGHT THREAD |
| PC-1017-02-125 | VALVE, SAFETY |
| TF-1047-01*180 | HOSE, 1/4 GRAY |
Customers also viewed
2.5-Gallon Engine Oil Service Unit – 23699 & 87257 Fluids
8-Gallon Hydraulic Reservoir Service Cart – Skydrol/PE Fluids
8 Gallon Fluid Service Unit - Dual Hose Selector Valve
– MIL-PRF-5606, MIL-PRF-83282, MIL-PRF-23669, & MIL-PRF-87257 Fluids
– 5606 & 83282 Fluids
Customers who bought this item also purchased
Engine Compressor Washer with Fuel Nozzle Cleaner, 12-Gallon Capacity – No Air Tanks (Uses Shop Air)
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Eclipse | 500 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
