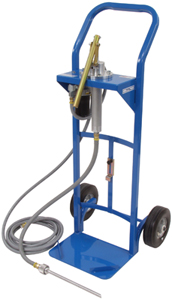

Tronair 06-5021-1500 - 5 Gallon Fluid Service Unit

Tronair 06-5021-1500
Manufacturer: Tronair
Part Number: 06-5021-1500
NSN: 4920-01-519-3771
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)
Rating: 5.0 Based on 1 customer review

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Towable Reservoir Service Unit - 83282 / 5606 - 15 Gallon
Military Reservoir Service Unit - 83282 / 5606 Fluid
Fluid Service Unit - 5606 / 83282 - Max 5000 PSIG Pressure
Fluid Service With Totalizer (Mb)
Fluid Service Unit

The Tronair 06-5021-1500 fluid service unit is a compact unit primarily designed to provide a source of clean fluid for filling reservoirs. It is not intended for performing any pressure testing tasks. A unique feature is that the unit pumps fluid directly from standard 5 gallon containers.

Standard Features

  • Pump directly from 5 gallon container
  • 200 psi (13.8 bar) maximum pressure
  • 2 micron filtration (beta rating > 2000 @ µm per ISO 4572)
  • High displacement hand pump (13 strokes per quart)
  • 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
  • Finish: Durable Powder Coat Tronair Blue
Specifications
Length19 1/8 (49) in (cm)
Height45 1/2 (116) in (cm)
Width21 (53) in (cm)
Fluid TypeMIL-PRF-5606 / MIL-PRF-83282
Weight45 (20) lb (kg)
Replacement PartsQuote?
Z-2031
TF-1105-06*180
HC-1826FILTER, (VITON)
K-2082Wheel Kit for 06-5021 Units
TF-1047-05*36.0
K-1780
HK-3717KIT, HANDLE REPLACEMENT
Z-2033-11
N-2052-06EXPANDER, TUBE
View all 14 replacement parts...
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
Bombardier (Regional)CS100, CS300
LockheedC-130
SikorskyS-65 (CH53, HH53, MH53, Sea Stallion)
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight75 lbs.
Pkg. 1 Dimensions55 in. x 25 in. x 25 in.
Pkg. 1 TypeCarton
Freight Class175
Freight NMFC128000
Schedule B8413600040
Customers who bought this item also bought:
Tire Pressure Gauge (CE) - 0 to 300 PSI
High Pressure Nitrogen Regulator - 0-2500 Psi (Ce)
Servicing

We service the 06-5021-1500 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul / Refurbishment
• New Pumps
• New Filters
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 06-5021-1500. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Filter Element Kit
• Seal Kit
• Replacement Pump
• Replacement Reservoir
• Hose
• Aircraft Service Couplers
Renting

We provide short-term and long-term rentals for the 06-5021-1500. We will ship the item directly to you and arrange for pickup at the end of your lease.
