Tronair 06-5021-1800 – 5-Gallon Oil Servicing Cart – MIL-PRF-23699 / MIL-PRF-87257
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

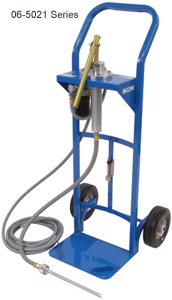

The Tronair 06-5021-1800 fluid service unit is a compact unit primarily designed to provide a source of clean fluid for filling reservoirs. It is not intended for performing any pressure testing tasks. A unique feature is that the unit connects, transports, and pumps fluid directly from standard 5-gallon drums.
Standard Features
- Pump directly from a 5-gallon container
- 2 micron filtration (beta rating > 2,000 @ 4aum per ISO 4572)
- High-displacement hand pump (13 strokes per quart)
- 15-ft. (4.6 m) #6 hose with 37° JIC female swivel connector
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Pressure: 200 psi (13.8 bar)
- Fluid Type: MIL-PRF-23699 / MIL-PRF-87257
- Height: 45.5" (116 cm)
- Length: 19.1" (49 cm)
- Width: 21" (53 cm)
- Weight: 45 lbs. (20 kg)
| Alternate Models | |
|---|---|
| 06T5021-1800 | With a Totalizer |
| General Information | |
|---|---|
| Part # | 06-5021-1800 |
| Manufacturer | Tronair |
| NSN | 3920017021121 |
| Manual 1 | View Tronair 06-5021-1800 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 74 lbs. |
| Shipping Dimensions | 24 x 24 x 53 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| HC-1482 | ELEMENT, FILTER (M.B.) |
| HC-1826 | FILTER, (VITON) |
| HC-2007-142 | O-RING SERIES 2 |
| HK-3715 | KIT, PUMP SEAL (VITON) |
| HK-3717 | KIT, HANDLE REPLACEMENT |
| K-1780 | KIT, REPL. HOLD DOWN (D) |
| K-2082 | KIT, REPL. WHEEL (SINGLE) |
| K-3098 | KIT, FILTER ELEMENT (MB) |
| N-2052-06 | EXPANDER, TUBE |
| TF-1105-06*180 | EXTERNAL HOSE |
| TF-1105-06*36.0 | HOSE, #6 PUSH-LOK |
| TF-1105-08*36.0 | HOSE, #8 PUSH-LOK |
| Z-2031 | ASSEMBLY, PICKUP TUBE |
| Z-2033-11 | WELDMENT, HAND TRUCK (D) |
