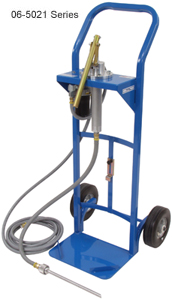

Tronair 06-5021-3600 Skydrol Fluid Service Cart, 5-Gallon Drum

The Tronair 06-5021-3600 Skydrol fluid service cart provides a clean, controlled source of aviation phosphate ester hydraulic fluid for servicing aircraft hydraulic reservoirs. It helps technicians replenish fluid efficiently while supporting contamination control during routine maintenance. This type of servicing unit is ideal for hangar and line maintenance environments where consistent fluid-handling practices are essential.

This unit is designed for aviation phosphate ester, Type IV fluid (commonly associated with Skydrol-type hydraulic fluids). Using the correct fluid type is important because phosphate ester fluids require compatible seals and components to prevent deterioration and contamination. Tronair also notes that using other fluids can lead to seal damage and contamination issues.

No, this servicing unit is not intended for pressure-testing tasks. It is primarily designed to supply clean fluid for filling reservoirs and supporting safe hydraulic fluid replenishment. Tronair specifically describes it as a compact reservoir service unit rather than a pressure-testing tool.

A key feature of this cart is that it pumps fluid directly from standard 5-gallon containers, eliminating the need for an onboard reservoir. This setup supports faster changeovers and reduces the risk of fluid mixing between jobs. The pickup tube is designed to fit standard five-gallon containers for easier setup.

The unit includes a 2-micron main filter, which supports clean fluid delivery during aircraft hydraulic servicing. This level of filtration helps reduce the risk of introducing fine contaminants into sensitive hydraulic components. Tronair lists the 2-micron filter as a standard feature of the unit.

The filter is a non-bypass design, meaning if it becomes clogged, fluid will not pass through to the aircraft. Tronair notes that a clogged filter may cause high handle force, and operators should not force the pump handle, as this can damage internal components. When this occurs, the correct solution is to service the filter rather than continue pumping.

The 2-micron main filter element is a throwaway (non-cleanable) design and must be replaced when it becomes restricted. This helps maintain consistent filtration performance and reduces the chance of reintroducing trapped debris. For maintenance planning, it’s best to keep replacement filter kits on hand to avoid downtime.

The unit is rated for a maximum pressure of 200 PSI (13.8 bar). While it is not intended for pressure testing, this rating helps define safe operating limits during normal servicing and pumping. Staying within manufacturer pressure limits supports long-term reliability and safer operation.

The difference between the 06-5021-3600 and the 06-5021-3600-A5 Skydrol fluid service carts lies primarily in the fittings and paint finish. According to the manufacturer, the two units require different hose-end fittings, including variations in the ball valve, fitting, and blank configuration. Additionally, each cart is painted differently to meet specific operational or customer requirements. Both models are designed to support safe and efficient Skydrol servicing for aircraft hydraulic systems.
