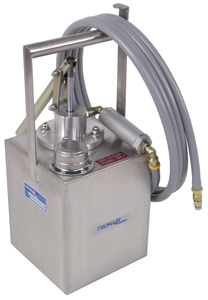

Tronair 06-5022-6500-A6 Reservoir Service Unit - MIL-C-87252
Get a Quote or Ask a Question
|Company Name:||Phone: (optional)|
The Tronair 06-5022-6500-A6 is a POA (Avionic Coolant (MIL-C-87252)) reservoir service unit.
- Fluid: PAO − Avionic Coolant (MIL-C-87252)
- Maximum Pressure: 200 psi (13.8 bar)
- Displacement: 4.4 cubic inches per stroke (72.11 cubic centimeters per stroke)
- Reservoir Capacity: Two (2) gal (7.6 lt)
- Wetted Material: Aluminum, Viton Seals, Elastomer Hose
- Weight: 18 lbs (8.16 kg)
- 8.25 in (21 cm) Long
- 8.25 in (21 cm) Wide
- 17.25 in (43.8 cm) High
- Stainless steel construction
- 2 gal (7.6 l) reservoir
- 2 micron filtration (Beta rating > 1000 @ 4 μm per ISO 4572)
- 2 in (5 cm) filler port
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
- Hose storage bracket
We service the 06-5022-6500-A6 and other items like it at our facility.
As an authorized Tronair Distributor, we sell factory OEM parts for the 06-5022-6500-A6. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
