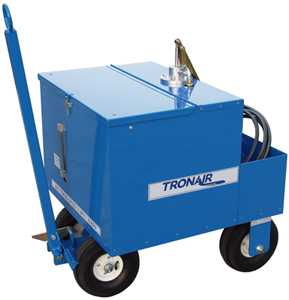

Tronair 06-5043-1500 Fluid Reservoir Unit - 83282 / 5606 - 15 Gallon
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 06-5043-1500 fluid reservoir service unit is a compact unit primarily designed to provide a source of clean fluid for filling reservoirs. It is not intended for performing any pressure testing tasks.
Standard Features:- Sturdy welded steel construction
- 16 gauge sheet metal weather proof cabinet
- 06-5043 Series: 15 gal (56.8 l) corrosion resistant reservoir
- 2 micron pressure filtration
- Maximum Pressure: 150 psi (10.3 bars)
- Pump Displacement: 7.8 cubic in/stroke (127.82 cc/stroke)
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37 degree JIC female swivel connector
- Front wheels lock with towbar in upright position
- 10 in (25 cm) pneumatic tires
- Maximum Towing Speed: 10 mph (16.1 k/hr)
- Finish: Durable Powder Coat Tronair Blue
| General Information | |
|---|---|
| Part # | 06-5043-1500 |
| Manufacturer | Tronair |
| NSN | 3920016726159 |
| Shipping Information | |
|---|---|
| Shipping Weight | 400 lbs. |
| Shipping Dimensions | 61 x 41 x 45 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Fluid Type | MIL-PRF-5606 / MIL-PRF-83282 |
| Height | 35 (89) in (cm) |
| Length | 40 (102) in (cm) |
| Weight | 250 (113) lb (kg) |
| Width | 29 (73.7) in (cm) |
| Spare Parts | |
|---|---|
| G-1283 | WASHER, SPINDLE |
| H-1740 | ASSEMBLY, COVER |
| H-2355 | RESERVOIR, 15 GAL. S.S. |
| HC-1030 | FILLER-BREATHER |
| HC-1382-08 | GAUGE, SIGHT |
| HC-1481 | ASSEMBLY, FILTER (MB) |
| HC-1482 | ELEMENT, FILTER (M.B.) |
| HC-2007-142 | O-RING SERIES 2 |
| HC-2172 | PUMP, HAND (MB) 150 PSI |
| HK-3717 | KIT, HANDLE REPLACEMENT |
| K-1249 | KIT, REPL. PIN |
| K-1253 | KIT, REPL. BEARING / SEAL |
| K-1255 | KIT, REPL. HUB |
| K-1320 | KIT, REPL. LEVER |
| K-1550 | KIT, REPL. WHEEL (SINGLE) |
| K-1765 | KIT, REPL. AXLE (D) |
| K-1767 | KIT, REPL. LANYARD ASSY (D) |
| K-1768 | KIT, REPL. LATCH (D) |
| K-3098 | KIT, FILTER ELEMENT (MB) |
| N-2009-14-S | CONNECTOR, MALE |
| N-2052-06 | EXPANDER, TUBE |
| N-2206-06-S | PLUG, HEX HEAD |
| TF-1047-04*180 | HOSE, 3/8 GRAY |
| TF-1047-04*40.0 | HOSE, 3/8 GRAY |
| TF-1047-05*36.0 | HOSE, 1/2 GRAY |
| Z-2036 | WELDMENT, TONGUE (D) |
| Z-2037 | WELDMENT, STEERING AXLE (D) |
| Z-2394-01 | ASSEMBLY, CLAMP |
Customers also viewed
Towable Skydrol Fluid Service Unit, 15-Gallon Capacity
8-Gallon Hydraulic Reservoir Service Cart – 23699 & 87257 Fluids
8-Gallon Hydraulic Reservoir Service Cart – Skydrol/PE Fluids
8 Gallon Fluid Service Unit with KHC-3560 Couplers - ERJ-170, ERJ-175, ERJ-190, ERJ-195, and Lineage 1000
Fluid Service Unit
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Airbus Military (CASA) | C-295 , CN-235/HC-144A |
| Embraer | EMB-120 |
| Fairchild/Dornier | Dornier DO328 , Dornier DO328 Jet |
| Fokker | 50 |
| General Dynamics | Convair 580 , Convair 600 , Convair 640 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
