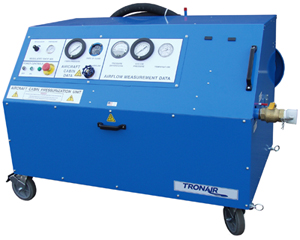

Tronair 15G7603-1000 – Cabin Pressurization Unit – 220V / 50 Hz / 3-Phase (CE)
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 15G7603-1000 Cabin Pressurization Unit is designed to provide a controllable air supply for the pressurization of aircraft cabin and cockpit areas for the purpose of cabin leakage testing and/or outflow valve tests.
Adapter kits (sold separately) must be used to connect the supply hose from the CPU to the aircraft.
Standard Features
- 50-ft. (15.2 m) input power cable (plug not included)
- 25-ft. (7.6 m) #4 cabin pressure sensor hose with 37º JIC female swivel connector
- 2" (5 cm) ID cabin air supply hose, 25 ft. (7.6 m)
- 3-phase, heavy-duty 20 HP motor with a 5-year warranty
- Heavy-duty starter with solid-state overload protection
- High-output, belt-driven blower with oil-level indicator
- High-efficiency industrial blower silencers
- Certified output and cabin pressure gauges 0 to 15 psi (0 to 1.03 bar)
- Certified door seal pressure gauge 0 to 30 psi (0 to 2.07 bar)
- Certified rate of climb indicator
- Air inlet filter – dry element
- Pressure relief valve set at 13.5 psi (.93 bar)
- Four swivel casters with 8" (20.3 cm) hard rubber tires, foot brakes, and swivel locks
- CE marked
- Durable powder-coat finish (Tronair Blue)
- NOTE: SCFM to ACFM conversion could reduce flow by 10%
Specifications
- Pressure Range: 0 to 13 psi (0 to 0.90 bar)
- Flow Range: 0 to 275 SCFM
- Relief Valve Setting: 13.5 psi (0.93 bar)
- Maximum Permitted Outlet Air Temperature: 300°F (150°C)
- Motor: 20 HP (voltage optional)
- Max. Shop Air Supply Pressure: 150 psi (10.3 bar)
- Maximum Noise Level: 84 dB(a) @ 10 ft. (3 m) @ 0 psi (0 bar); 91 dB(a) @ 3 ft. (0.9 m) @ 12 psi (0.83 bar)
- Maximum Noise Level at Operator Station: 83 dB(a) @ 0 psi; 90 dB(a) @ 12 psi (0.83 bar)
- Dimensions: 70" x 48" x 49" (180 x 122 x 125 cm)
- Cabin Supply Hose: 2" (5 cm) diameter x 25 ft. (7.6 m) long
- Cabin Sensor Feedback Hose: 1/4" (0.6 cm) diameter x 30 ft. (9.1 m) long
- Door Seal Supply Hose: 1/4" (0.6 cm) diameter x 30 ft. (9.1 m) long
- Weight: 1,100 lbs. (500 kg)
| General Information | |
|---|---|
| Part # | 15G7603-1000 |
| Manufacturer | Tronair |
| NSN | 4920015621020 |
| Shipping Information | |
|---|---|
| Shipping Weight | 1440 lbs. |
| Shipping Dimensions | 85 x 58 x 55 in. |
| Freight NMFC | 133300 |
| Schedule B | 9032810080 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Electrical | 220/50/3 V/Hz/ph |
| Flow Rate | 0-275 scfm |
| Height | 49 (125) in (cm) |
| Length | 70 (178) in (cm) |
| Pressure Relief Valve Set At | 13.5 (.93) psi (bar) |
| Rate of Climb Indicator | 0-4,000 (0-2,032) ft/min (cm/sec) |
| Weight | 1,100 (499) lb (kg) |
| Width | 48 (122) in (cm) |
| Accessories/Kits/Adapters | |
|---|---|
| K-1285 | Beech King Air 99/1900, King Air |
| K-1286 | Lear 21, 25, 35, 36 |
| K-1288 | Citation III, VI, VII, X, 510, 650, 680, 750 |
| K-1359 | Cessna 421, 425, 441 , Lear 45 |
| K-1360 | Lear 55 (after S/N 125), EMB-120 (A/C must have LearJet Part Number 541*057-8 duct) |
| K-1381 | Piper PA-31T, Aerostar, Cheyenne II & III, Chieftan, Navajo |
| K-1456 | Beech Duke |
| K-1491 | Cessna 337 |
| K-1622 | Falcon 10-100, 20-200, 50, 50EX, 900, 900EX, 2000, 2000EX |
| K-1623 | Aero Commander |
| K-1660 | MU2, BeechJet, Diamond |
| K-1661 | Lear 24 |
| K-2182 | Lear 55 (prior to S/N 125), Lear 60 |
| K-2403 | Sabre 65 |
| K-2418 | G-100, G-150, Westwind 1 & 2 |
| K-2453 | Pilatus PC-12 |
| K-2601 | Citation I, II, V, S/II, CitationJet, CJ1, CJ2, Excel 560XL, Ultra, Ultra Encore |
| K-2610 | HS-125 400-800, Hawker 1000 |
| K-3317 | Sino Sweargen SJ30-2 |
Customers also viewed
Cabin Pressurization Unit – 415V / 50 Hz / 3-Phase
Cabin Pressurization Unit – 380V / 50 Hz / 3-Phase
Cabin Pressurization Unit – 440V / 50 Hz / 3-Phase
Cabin Pressurization Unit – 200V / 50 Hz / 3-Phase
Hose Assembly, 1/4” I.D. x 21”
Customers who bought this item also purchased
Winterized Electric Potable Water Cart – 31-Gallon Capacity, 60 Hz Input Voltage
Engine Sling for PW100 Series Aircraft Engines – Select ATR, Dash 8, & EMB-120 Aircraft
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Adam | A500 , A700 |
| BAe | Jetstream 31 , Jetstream 41 |
| Bombardier |
C-21
,
Challenger 850
,
CRJ100
,
CRJ200
,
Global 5000
,
Global 5500
,
Global 6000
,
Global 6500
,
Global 7000
,
Global 8000
,
Global Express
,
Global Express XRS
,
Learjet 23
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 24
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 25
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 31
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 31A
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 35
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 45
NOTE
An adapter kit (K-1359) is required for this unit.
,
Learjet 55
NOTE
An adapter kit – K-2182 for S/N's 1-124, K-1360 for S/N's 125 & after – is required for this unit.
,
Learjet 60
NOTE
An adapter kit (K-2182) is required for this unit.
,
Learjet 70
NOTE
An adapter kit (K-1359) is required for this unit.
,
Learjet 75
NOTE
An adapter kit (K-1359) is required for this unit.
|
| Cessna |
337 Skymaster
NOTE
An adapter kit (K-1491) is required for use with this unit.
,
340
,
Ascend
,
,
Citation 560 XL
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation 560 XLS
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation 650
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation CJ1
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ2
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ3
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ4
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation Encore 560
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation I 500
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation I/SP 501
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation II 550
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation III
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation M2
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation SII
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation Sovereign 680
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation Ultra 560
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation V
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation VI
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation VII
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation X 750
NOTE
An adapter kit (K-1288) is required for this unit. Add the High-Pressure Upgrade Kit (K-4031) for increased performance.
,
Latitude 680A
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Mustang 510
NOTE
An adapter kit (K-2601) is required for use with this unit.
|
| Dassault |
Falcon 10-100
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 20-200
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 2000
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 2000EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
,
Falcon 50EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 900
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 900EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
|
| Eclipse | 500 |
| Embraer |
EMB-110
,
,
ERJ-135
,
ERJ-140
,
ERJ-145
,
Phenom 100
NOTE
An adapter kit (K-4281) is required for use with this unit.
,
Phenom 300
|
| Fairchild/Dornier | Dornier DO328 , Dornier DO328 Jet , Metro Merlin III , Metro Merlin IV |
| Gulfstream | Aero Commander , G100 (Astra SPX) , G150 , G200 (Galaxy) , G280 |
| Hawker Beechcraft |
Beech 1900
NOTE
An adapter kit (K-1285) is required for this unit.
,
,
Beechjet 400A
NOTE
An adapter kit (K-1660) is required for this unit.
,
C-12
NOTE
An adapter kit – K-1285 or K-1359 (on aircraft with serial numbers BB1347 and higher) – is required for this unit.
,
,
Hawker 1000
NOTE
An adapter kit (K-2610) is required for this unit.
,
Hawker 4000 (Horizon)
NOTE
An adapter kit (K-2610) is required for this unit.
,
HS-125 400 Series
NOTE
An adapter kit (K-2610) is required for this unit.
,
HS-125 800 / 850 / 900 Series
NOTE
An adapter kit (K-2610) is required for this unit.
,
,
Premier
,
T-1 Jayhawk
NOTE
An adapter kit (K-2610) is required for this unit.
,
|
| IAI | Astra , Westwind 1 , Westwind 2 |
| Pilatus | , |
| Piper |
,
Cheyenne II
NOTE
An adapter kit (K-1381) is required for this unit.
,
Cheyenne III
NOTE
An adapter kit (K-1381) is required for this unit.
,
,
|
| Saab | 2000 , 340 |
| Sabreliner | 40 Series , , 70 Series |
| Sino Swearingen | |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Carl, a Maintenance Facility in South Africa
10/13/2016 07:28:18 AM
Very happy and great service received. The machine works very well and we are looking at purchasing more for the company going forward. The machine works very well on the 1900D aircraft and helped us a great deal within our AMO based in Algeria.
