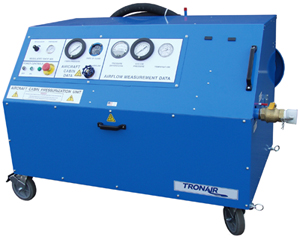

Tronair 15J7603-1000 Cabin Pressuization Unit (CE) - 415 Volts / 50 Hz / 3 Phase

Manufacturer: Tronair

Part Number: 15J7603-1000

Condition: New

✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment

Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.

Name:	E-Mail:
Company Name:	Phone: (optional)
Questions/Comments: (optional)

Or Instead of buying this item new, do you...

Need one serviced?

Need parts for this?

Need to rent one?

Want to sell/trade-in?

Customers who viewed this item also viewed:

Tronair 15A7603-1000

208 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb

Tronair 15B7603-1000

230 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb

Tronair 15C7603-1000

380 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb

Tronair 15E7603-1000

575 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb

Tronair 02-7830C0110

25 Ton Axle Jack (CE)

The Tronair 15J7603-1000 is an aircraft cabin pressurization unit (CPU) for use on 415V 3 PH 50 HZ input voltage from the hangar or facility.

Standard Features

50 ft (15.2 m) input power cable (plug not included)
25 ft (7.6 m) #4 cabin pressure sensor hose with 37 degree JIC female swivel connector
2 in (5 cm) ID cabin air supply hose, 25 ft (7.6 m)
3 phase, heavy duty 20 hp motor, with 5 year warranty
Heavy duty starter with solid state overload protection
High output belt driven blower with oil level indicator
High efficiency industrial blower silencers
Certified output and cabin pressure gauges 0 to 15 psi (0 to 1.03 bar)
Certified door seal pressure gauge 0 to 30 psi (0 to 2.07 bar)
Certified rate of climb indicator
Air inlet filter, dry element
Pressure relief valve set at 13.5 psi (.93 bar)
Four swivel casters with 8 in (20.3 cm) hard rubber tires, foot brakes, and swivel locks
CE marked
Finish: Durable Powder Coat Tronair Blue
Note - SCFM to ACFM conversion could reduce flow by 10%

Specifications
Rate of Climb Indicator	0-4,000 (0-2,032) ft/min (cm/sec)
Length	70 (178) in (cm)
Electrical	415/50/3 V/Hz/ph
Height	49 (125) in (cm)
Width	48 (122) in (cm)
Weight	1,100 (499) lb (kg)
Pressure Relief Valve Set At	13.5 (.93) psi (bar)
Flow Rate	0-275 scfm

Accessories/Kits/Adapters
K-2601	Citation I, II, V, S/II, CitationJet, CJ1, CJ2, Excel 560XL, Ultra, Ultra Encore
K-1623	Aero Commander
K-1288	Citation III, VI, VII, X, 510, 650, 680, 750
K-3317	Sino Sweargen SJ30-2
K-2403	Sabre 65
K-1660	MU2, BeechJet, Diamond
K-1286	Lear 21, 25, 35, 36
K-2453	Pilatus PC-12
K-1359	Cessna 421, 425, 441 , Lear 45
K-2610	HS-125 400-800, Hawker 1000
K-2182	Lear 55 (prior to S/N 125), Lear 60
K-1661	Lear 24
K-1360	Lear 55 (after S/N 125), EMB-120 (A/C must have LearJet Part Number 541*057-8 duct)
K-2418	G-100, G-150, Westwind 1 & 2
K-1456	Beech Duke
K-1491	Cessna 337
K-1285	Beech King Air 99/1900, King Air
K-1622	Falcon 10-100, 20-200, 50, 50EX, 900, 900EX, 2000, 2000EX
K-1381	Piper PA-31T, Aerostar, Cheyenne II & III, Chieftan, Navajo

Replacement Parts		Quote?
L-1000
G-1440-1050-S	NUTSERT, 1/4-20 OPEN END
EC-1521
G-1251-1010R	LOCKWASHER, #6 REGULAR
TS-1780-01
H-2365-00	SILENCER, INTAKE
U-1087	LOCK, DEMOUNTABLE SWIVEL
H-2364-00	SILENCER, EXHAUST(WP)
EC-1527
View all 116 replacement parts...
H-1402-01	Filter, Inlet Cover
U-1085	CASTER, SWIVEL
H-2666-08	VALVE, BALL (2 INCH)
H-2597
H-2410	V-BELT
N-1521	COUPLING, HOSE
G-1009-26	U-BOLT
N-1019	COUPLING, PIPE
TF-1113*032.00	HOSE, FLEX
G-1202-1035	STOPNUT, #10-32 ELASTIC
N-2448-03	SWIVEL, MALE BRANCH TEE
N-2410-02	ELBOW, 90 DEG MALE
G-1202-1075	STOPNUT, 3/8-24 ELASTIC
N-2776-02	CONNECTOR, FEMALE
G-1250-1010N	FLATWASHER, #6 NARROW
H-1400-08	BLOWER
EC-1557-28	FUSE, CLASS J
V-1865-00
TF-1153*18.00
H-2377-00
EC-1528
EC-1480-17	MOTOR,20 HP NON C FACE ODP
TF-1047-01*28.0
EC-1171-02*72.0
EC-1515-02
G-1009-27	U-BOLT
EC-1610-07*72.0
R-2076	SPACER, BLOWER
H-1487	SPACER, GROMMET
EC-1175-19-A	CONNECTOR, POWER CABLE 1IN
G-1351-19	RIVET, 3/16 OPEN-END STL
H-2495	CLAMP, PIPE
TF-1153*012.00
TF-1047-01*19.0
N-2236-09-45	NIPPLE, BLACK PIPE
N-1031	ELBOW, 90 DEG
H-2890
N-2200-03-B	ELBOW, STREET
N-2777-02	SWIVEL, MALE 90 DEG. ELBOW
H-1396	INDICATOR, VERTICAL SPEED
EC-1529
EC-1582
H-2408	PULLEY, V-BELT (12.40 OD)
H-1397	REGULATOR
Z-4723
EC-1171-02*0600
Z-5458-01
N-2696-28	BUSHING, REDUCER PIPE
V-1219	LABEL, ROTATION
EC-1586	CONTACTOR, IEC MOTOR
S-1828-01
N-2217-09
N-2236-09-30	NIPPLE, BLACK PIPE
H-2595-00
EC-1525	RELAY, IEC OVERLOAD (18-90A)
Z-5120-01
EC-1804-02	TRANSFORMER, 100VA
TR-1716	TUBE, TEMPERATURE
H-1394	GAUGE, PRESSURE 0-15 PSI
G-1202-1095	STOPNUT, 1/2-20 ELASTIC
EC-1542-11	FUSE, LP-CC LOW PEAK
H-1426-14	CLAMP, HOSE
EC-1579-03
EC-1541-01	FUSEHOLDER, MODULAR
EC-1602-03	REDUCER, FUSE
H-2376-00
G-1476-105004	SCR, 1/4-20 SOC BUT HD CAP
N-2777-01	SWIVEL, MALE 90 DEG. ELBOW
EC-1542-22	FUSE, LP-CC LOW PEAK
G-1100-109550	BOLT, 1/2-20 HEX HD GR 5
V-1721	LABEL, ISO BURN HAZARD
TF-1012*008.00
N-2207-18-S	TEE, FEMALE PIPE 2-1/2
G-1100-109532	BOLT, 1/2-20 HEX HD GR 5
G-1250-1070N	FLATWASHER, 3/8 NARROW
G-1251-1050R	LOCKWASHER, 1/4 REGULAR
H-1408	SENSOR, IN-LINE
INS-1622
H-1392-08	BASE, MOTOR SLIDING
G-1100-107526
G-1250-1030N	FLATWASHER, #10 NARROW
TS-1880-01
H-1484-01	GROMMET, VIBRATION
N-2778-02	SWIVEL, MALE RUN
H-2409	PULLEY, V-BELT (6.60)
N-2443-07	CONNECTOR, MALE
G-1476-101012	SCR, #6-32 SOC BUT HD CAP
EC-1180-23	Terminal, Ring Tongue
N-2207-17-S	TEE, FEMALE PIPE 2
G-1180-107006	SCR, 3/8 HEX HD TPG TYPE F
Z-4650
N-2695
H-1407	VALVE, BY-PASS
G-1200-1050
Z-4625-01
H-2657	GAGE, PRESS 0-60 PSI/BAR
H-2656	THERMOMETER, REMOTE
EC-1589	RELAY, IEC OVERLOAD (9-45A)
G-1100-107546	BOLT, 3/8-24 HEX HD GR 5
EC-1646
G-1250-1090N	FLATWASHER, 1/2 NARROW
EC-1532-02	LUG, GROUND
N-2236-10-29	NIPPLE, BLACK PIPE
TS-1882-01
EC-1523
N-2236-09-41	NIPPLE, BLACK PIPE
G-1200-1010	NUT, #6-32 HEX
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.

› Request a quote on one or more parts above

Compatible Aircraft*
Adam	A500, A700
BAe	Jetstream 31, Jetstream 41
Bombardier (Business)	C-21, Challenger 850, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)	CRJ100, CRJ200
Cessna	337 Skymaster, 340, Bravo, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
Dassault	Falcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 900, Falcon 900EX
Eclipse	500
Embraer	EMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, Phenom 100, Phenom 300
Fairchild/Dornier	Dornier DO328, Dornier DO328 Jet, Metro Merlin III, Metro Merlin IV
Gulfstream	Aero Commander, G100 (Astra SPX), G150, G200 (Galaxy), G280
Hawker Beechcraft	Beech 1900, Beech 99, Beechjet 400A, C-12, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, T-1 Jayhawk, T-400
IAI	Astra, Westwind 1, Westwind 2
Pilatus	PC-12
Piper	Aerostar, Cheyenne II, Cheyenne III, Chieftan, Navajo
Saab	2000, 340
Sabreliner	40 Series, 60 Series, 70 Series
Sino Swearingen	SJ30-2

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.

Shipping Information
Pkg. 1 Weight	1600 lbs.
Pkg. 1 Dimensions	92 in. x 63 in. x 62 in.
Pkg. 1 Type	Crate
Freight Class	175
Freight NMFC	133300
Schedule B	9032810080

Servicing

We service the 15J7603-1000 and other items like it at our facility.

A few of the common services we offer for this item are:

• Complete Overhaul

• Standard Maintenance / Repair

How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight.

› Schedule servicing or inquire about a service

Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 15J7603-1000. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:

• Aircraft Adapter Kits

• Supply Hose

• Aircraft Cabin Sensor Line

• Pressure Gauge

• Cabin Pressure Gauge

• Rate of Climb Gauge

• Pressure Differential Gauge

• System Pressure Gauge

• Temperature Gauge

• Regulator

• Motor

• AC Input Cable

› Request a quote on a part or inquire about what part you need

Renting

We provide short-term and long-term rentals for the 15J7603-1000. We will ship the item directly to you and arrange for pickup at the end of your lease.

› Inquire about a renting options for 15J7603-1000
