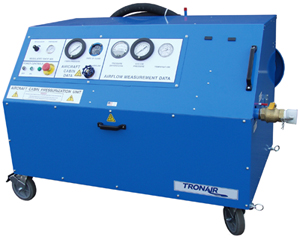

Cabin Pressurization Unit (CE) - 440 Volts / 50 Hz / 3 Phase - Tronair 15K7603-1000

Tronair 15K7603-1000
Manufacturer: Tronair
Part Number: 15K7603-1000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
208 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb
230 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb
220 Volts / 50 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb
200 Volts / 50 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb
460 Volts / 60 Hz / 3 Phase - 0-275 SCFM Flow Rate / 0-4000 ft/min Rate of Climb
Cabin Pressurization Unit Ce

Standard Features:
  • 50 ft (15.2 m) input power cable (plug not included)
  • 25 ft (7.6 m) #4 cabin pressure sensor hose with 37º JIC female swivel connector
  • 2 in (5 cm) ID cabin air supply hose, 25 ft (7.6 m)
  • 3 phase, heavy duty 20 hp motor, with 5 year warranty
  • Heavy duty starter with solid state overload protection
  • High output belt driven blower with oil level indicator
  • High efficiency industrial blower silencers
  • Certified output and cabin pressure gauges 0 to 15 psi (0 to 1.03 bar)
  • Certified door seal pressure gauge 0 to 30 psi (0 to 2.07 bar)
  • Certified rate of climb indicator
  • Air inlet filter, dry element
  • Digital flow meter on 17-7607-1000 series models ONLY
  • Pressure relief valve set at 13.5 psi (.93 bar)
  • Four swivel casters with 8 in (20.3 cm) hard rubber tires, foot brakes, and swivel locks
  • CE marked
  • Finish: Durable Powder Coat Tronair Blue
  • Note - SCFM to ACFM conversion could reduce flow by 10%
Specifications
Rate of Climb Indicator0-4,000 (0-2,032) ft/min (cm/sec)
Length70 (178) in (cm)
Electrical440/50/3 V/Hz/ph
Height49 (125) in (cm)
Width48 (122) in (cm)
Weight1,100 (499) lb (kg)
Pressure Relief Valve Set At13.5 (.93) psi (bar)
Flow Rate0-275 scfm
Accessories/Kits/Adapters
K-2601Citation I, II, V, S/II, CitationJet, CJ1, CJ2, Excel 560XL, Ultra, Ultra Encore
K-1623Aero Commander
K-1288Citation III, VI, VII, X, 510, 650, 680, 750
K-3317Sino Sweargen SJ30-2
K-2403Sabre 65
K-1660MU2, BeechJet, Diamond
K-1286Lear 21, 25, 35, 36
K-2453Pilatus PC-12
K-1359Cessna 421, 425, 441 , Lear 45
K-2610HS-125 400-800, Hawker 1000
K-2182Lear 55 (prior to S/N 125), Lear 60
K-1661Lear 24
K-1360Lear 55 (after S/N 125), EMB-120 (A/C must have LearJet Part Number 541*057-8 duct)
K-2418G-100, G-150, Westwind 1 & 2
K-1456Beech Duke
K-1491Cessna 337
K-1285Beech King Air 99/1900, King Air
K-1622Falcon 10-100, 20-200, 50, 50EX, 900, 900EX, 2000, 2000EX
K-1381Piper PA-31T, Aerostar, Cheyenne II & III, Chieftan, Navajo
Replacement PartsQuote?
L-1000
G-1440-1050-SNUTSERT, 1/4-20 OPEN END
EC-1521
G-1251-1010RLOCKWASHER, #6 REGULAR
TS-1780-01
H-2365-00SILENCER, INTAKE
U-1087LOCK, DEMOUNTABLE SWIVEL
H-2364-00SILENCER, EXHAUST(WP)
EC-1527
H-1402-01Filter, Inlet Cover
U-1085CASTER, SWIVEL
H-2666-08VALVE, BALL (2 INCH)
H-2597
H-2410V-BELT
N-1521COUPLING, HOSE
G-1009-26U-BOLT
N-1019COUPLING, PIPE
TF-1113*032.00HOSE, FLEX
G-1202-1035STOPNUT, #10-32 ELASTIC
N-2448-03SWIVEL, MALE BRANCH TEE
N-2410-02ELBOW, 90 DEG MALE
G-1202-1075STOPNUT, 3/8-24 ELASTIC
N-2776-02CONNECTOR, FEMALE
G-1250-1010NFLATWASHER, #6 NARROW
H-1400-08BLOWER
EC-1557-28FUSE, CLASS J
V-1865-00
TF-1153*18.00
H-2377-00
EC-1528
EC-1480-17MOTOR,20 HP NON C FACE ODP
TF-1047-01*28.0
EC-1171-02*72.0
EC-1515-02
G-1009-27U-BOLT
EC-1610-07*72.0
R-2076SPACER, BLOWER
H-1487SPACER, GROMMET
EC-1175-19-ACONNECTOR, POWER CABLE 1IN
G-1351-19RIVET, 3/16 OPEN-END STL
H-2495CLAMP, PIPE
TF-1153*012.00
TF-1047-01*19.0
N-2236-09-45NIPPLE, BLACK PIPE
N-1031ELBOW, 90 DEG
H-2890
N-2200-03-BELBOW, STREET
N-2777-02SWIVEL, MALE 90 DEG. ELBOW
H-1396INDICATOR, VERTICAL SPEED
EC-1529
EC-1582
H-2408PULLEY, V-BELT (12.40 OD)
H-1397REGULATOR
Z-4723
EC-1171-02*0600
Z-5458-01
N-2696-28BUSHING, REDUCER PIPE
V-1219LABEL, ROTATION
EC-1586CONTACTOR, IEC MOTOR
S-1828-01
N-2217-09
N-2236-09-30NIPPLE, BLACK PIPE
H-2595-00
Z-5120-01
EC-1804-02TRANSFORMER, 100VA
TR-1716TUBE, TEMPERATURE
H-1394GAUGE, PRESSURE 0-15 PSI
G-1202-1095STOPNUT, 1/2-20 ELASTIC
EC-1542-11FUSE, LP-CC LOW PEAK
H-1426-14CLAMP, HOSE
EC-1579-03
EC-1541-01FUSEHOLDER, MODULAR
H-2376-00
G-1476-105004SCR, 1/4-20 SOC BUT HD CAP
N-2777-01SWIVEL, MALE 90 DEG. ELBOW
EC-1542-22FUSE, LP-CC LOW PEAK
G-1100-109550BOLT, 1/2-20 HEX HD GR 5
V-1721LABEL, ISO BURN HAZARD
TF-1012*008.00
N-2207-18-STEE, FEMALE PIPE 2-1/2
G-1100-109532BOLT, 1/2-20 HEX HD GR 5
G-1250-1070NFLATWASHER, 3/8 NARROW
G-1251-1050RLOCKWASHER, 1/4 REGULAR
H-1408SENSOR, IN-LINE
INS-1622
H-1392-08BASE, MOTOR SLIDING
G-1100-107526
G-1250-1030NFLATWASHER, #10 NARROW
EC-1526
TS-1880-01
H-1484-01GROMMET, VIBRATION
N-2778-02SWIVEL, MALE RUN
H-2409PULLEY, V-BELT (6.60)
N-2443-07CONNECTOR, MALE
G-1476-101012SCR, #6-32 SOC BUT HD CAP
EC-1180-23Terminal, Ring Tongue
N-2207-17-STEE, FEMALE PIPE 2
G-1180-107006SCR, 3/8 HEX HD TPG TYPE F
Z-4650
N-2695
H-1407VALVE, BY-PASS
G-1200-1050
Z-4625-01
H-2657GAGE, PRESS 0-60 PSI/BAR
H-2656THERMOMETER, REMOTE
EC-1602-02
EC-1589RELAY, IEC OVERLOAD (9-45A)
G-1100-107546BOLT, 3/8-24 HEX HD GR 5
EC-1646
G-1250-1090NFLATWASHER, 1/2 NARROW
EC-1532-02LUG, GROUND
N-2236-10-29NIPPLE, BLACK PIPE
TS-1882-01
EC-1523
N-2236-09-41NIPPLE, BLACK PIPE
G-1200-1010NUT, #6-32 HEX
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
AdamA500, A700
BAeJetstream 31, Jetstream 41
Bombardier (Business)C-21, Challenger 850, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)CRJ100, CRJ200
Cessna337 Skymaster, 340, Bravo, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 8X, Falcon 900, Falcon 900EX
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, Phenom 100, Phenom 300
Fairchild/DornierDornier DO328, Dornier DO328 Jet, Metro Merlin III, Metro Merlin IV
GulfstreamAero Commander, G100 (Astra SPX), G150, G200 (Galaxy), G280
Hawker BeechcraftBeech 1900, Beech 99, Beechjet 400A, C-12, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, T-1 Jayhawk, T-400
IAIAstra, Westwind 1, Westwind 2
PilatusPC-12
PiperAerostar, Cheyenne II, Cheyenne III, Chieftan, Navajo
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Sino SwearingenSJ30-2
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Freight Class175
Schedule B9032.81.0080
