Tronair 17-7503F7000 4 Ton Air Conditioner - 208V 3 PH 60 HZ Input Voltage

Tronair 17-7503F7000
Manufacturer: Tronair
Part Number: 17-7503F7000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
50Hz/60Hz, 600A Continuous / 1200A Peak Start
Why not take all 3? The small, medium, and large in one package.
2 Ton - Small Corporate Class Cabin Aircraft / Helicopters - Heat Available as Add On
30 Ton AC Unit - Heat Available
4 Ton - Input Voltage 208V/60Hz/1ph/41.2Amps

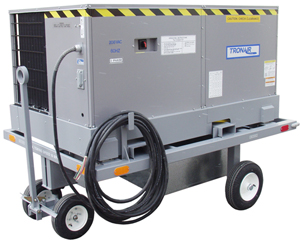

The Tronair 17-7503F7000 is a 3 phase input voltage 4 ton air conditioner. This unit operates on 208V/60Hz/3ph/25.9Amps.

Standard Features

  • Cooling capacity 45,000 Btu/hr output
  • 1600 cfm maximum air flow
  • Refrigerant type R-410A is environmentally safe
  • Hermetic compressor belt driven with over current and over temperature protection
  • 1,200-2,000 cfm propeller type condenser fan
  • 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
  • Dual suction high density filters
  • 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch
  • Sturdy welded frame with 16 gauge sheet metal cabinet
  • Trailer mounted - Finish: Black
  • Finish: Acrylic Enamel Gray
  • AC plug-in: 208, 230, 400, 460, 575 volt
  • 1 or 3 phase (single phase not available in all voltages)
  • 50 ft (15.3 m) long power cord
  • Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
  • Unit is designed to cool and/or heat an aircraft through a window or door opening
Shipping Information
Pkg. 1 Weight1750 lbs.
Pkg. 1 Dimensions108 in. x 71 in. x 75 in.
Freight Class92.5
Freight NMFC114125-3
Schedule B8415.81.0130
