Tronair 17-7503G7000 4 Ton Air Conditioner - 230V 60 HZ

Tronair 17-7503G7000
Manufacturer: Tronair
Part Number: 17-7503G7000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
4 Ton LGP - 23 HP Subaru Engine
4 Ton - Input Voltage 230V/60Hz/1ph/41.2Amps
Towable - 28V DC Cummins Tier 3 Diesel - 800 / 2000 amps
Combo 90 kVA / 28V DC - 3 Phase Input Voltage

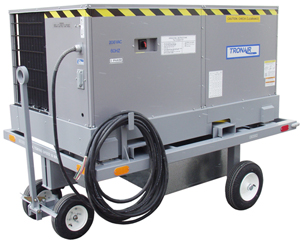

The 17-7503G7000 is a 4 ton air conditioner unit for aircraft / helicopter use. This unit operates on 230V/60Hz/3ph/25.9Amps.

Standard Features (Model: 17-7503-7000 AC Plug-in):

  • Cooling capacity 45,000 Btu/hr output
  • 1600 cfm maximum air flow
  • Refrigerant type R-410A is environmentally safe
  • Hermetic compressor belt driven with over current and over temperature protection
  • 1,200-2,000 cfm propeller type condenser fan
  • 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
  • Dual suction high density filters
  • 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch
  • Sturdy welded frame with 16 gauge sheet metal cabinet
  • Trailer mounted - Finish: Black
  • Finish: Acrylic Enamel Gray
  • 50 ft (15.3 m) long power cord
  • Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
  • Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7503-7000)
  • Unit is designed to cool and/or heat an aircraft through a window or door opening
Shipping Information
Freight Class925
Schedule B8415.82.0115
