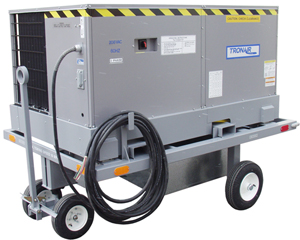

Tronair 17-7503J7000 – 4-Ton Aircraft Air Conditioner

The Tronair 17-7503J7000 mobile air conditioner is a complete portable aircraft ground cooling unit designed for corporate aviation departments, FBOs, and regional/commuter airlines.

This unit provides pre-cooling prior to passenger arrival, as well as during ramp maintenance work.

The 4-ton air conditioner provides cool air using R-410A, environmentally "safe", refrigerant when plugged into 3 phase, 60 Hz, 460 VAC power source.

The Tronair 17-7503J7000 provides 45,000 Btu/hr of cool air at 1,200-2,000 cfm for aircraft cabin comfort.

Standard Features

• Pre-coated aluminum fin coil
• High pressure switch
• Loss of charge/low pressure switch
• Freeze protection switch
• Non-corrosive, sloped condensate drain pan, meets ASHRAE 62-89 (IAQ)
• Two inch (2") return-air filters
• Includes exclusive Acutrol metering device to precisely control refrigerant flow (preventing slugging and flood-back) while maintaining optimum unit performance.
• The wheels lock with the towbar in the upright and locking position.
• 12" diameter, 25-ft. long blower hose (with storage compartment), connects quickly and easily to the air conditioning unit. The hose will not fully inflate during the cooling or heating process.
• Unit is designed to cool and/or heat an aircraft through a window or door opening.

Additional Features

• Durable, Dependable Construction: Designed for durability in any climate, the weather-resistant cabinets are constructed of galvanized steel, bonderized, and all exterior panels are coated with a pre painted baked enamel finish. The paint finish is non-chalking, and is capable of withstanding ASTM B117 500-hour Salt Spray Test. All internal cabinet panels are primed, permitting longer life and a more attractive appearance for the entire unit. Totally enclosed condenser-fan motor and permanently lubricated bearings provide additional unit dependability.
• Proven Compressor Reliability: Design techniques feature computer-programmed balance between compressor, condenser and evaporator. Carrier-specified hermetic compressors are equipped with compressor over current and over temperature protection to ensure durability.
• Extra Receptacles: An external, covered 115 volt Ground Fault Interrupt (GFI) receptacle is provided as a convenient power source for drills, lights, refrigerant recovery units, or other electrical service tools. Simply connect the outlet to a field-supplied and properly fused branch circuit power supply.
