Tronair 18-4314-9800 4 Bottle Cart / Hydraulic Test

Tronair 18-4314-9800
Manufacturer: Tronair
Part Number: 18-4314-9800
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Cart, Bottle/Helium Booster (Ce)
Gauge, Tire/Strut Service
Towable 4 Bottle Cart with Booster and High/Low Pressure Regulators
Tire Service Gauge 10' Hose - 0 to 300 PSI - Inflates Tires with Nitrogen
Tire Pressure Gauge (Ce) - 0 to 300 PSI

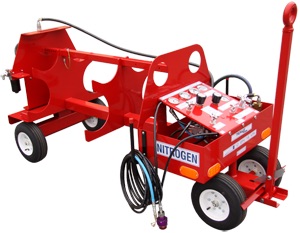

The Tronair 18-4314-9800 is designed to transport nitrogen bottles which are used in the aviation industry. The system contains two regulators. The low pressure regulator is for operating and servicing needs of 0 − 500 psi (34.5 bar).

The second low pressure regulator regulates the pressure to the aircraft and checks the hydraulic system for leaks prior to filling with hydraulic fluid.

Standard Features

  • 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
  • Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
  • Low pressure regulator output to hydraulic system 0 to 150 psi (0 to 10.3 bar) with 15 ft (4.6 m) service hose
  • Nitrogen blow out system regulates the pressure to the aircraft and checks they hydraulic system for leaks prior to filling with hydraulic fluid
  • Temperature range 0º to 200º F (17.7º to 93.3º C)
  • Operating instructions located on instrument panel
  • Sturdy welded steel construction
  • Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
  • 85 psi (5.9 bar) 13 in (33 cm) diameter pneumatic tires
  • Front wheels lock with towbar in upright position
  • Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
  • Towbar with 23/16 in (5.6 cm) ID eyebolt
  • Maximum towing speed 10 mph (16 km/hr)
  • Hose storage compartment
  • Reflectors to improve night visibility
  • Low Profile
  • CE marked
  • Finish: Powder Coat Red
Shipping Information
Freight Class150
Schedule B8716.39.0020
