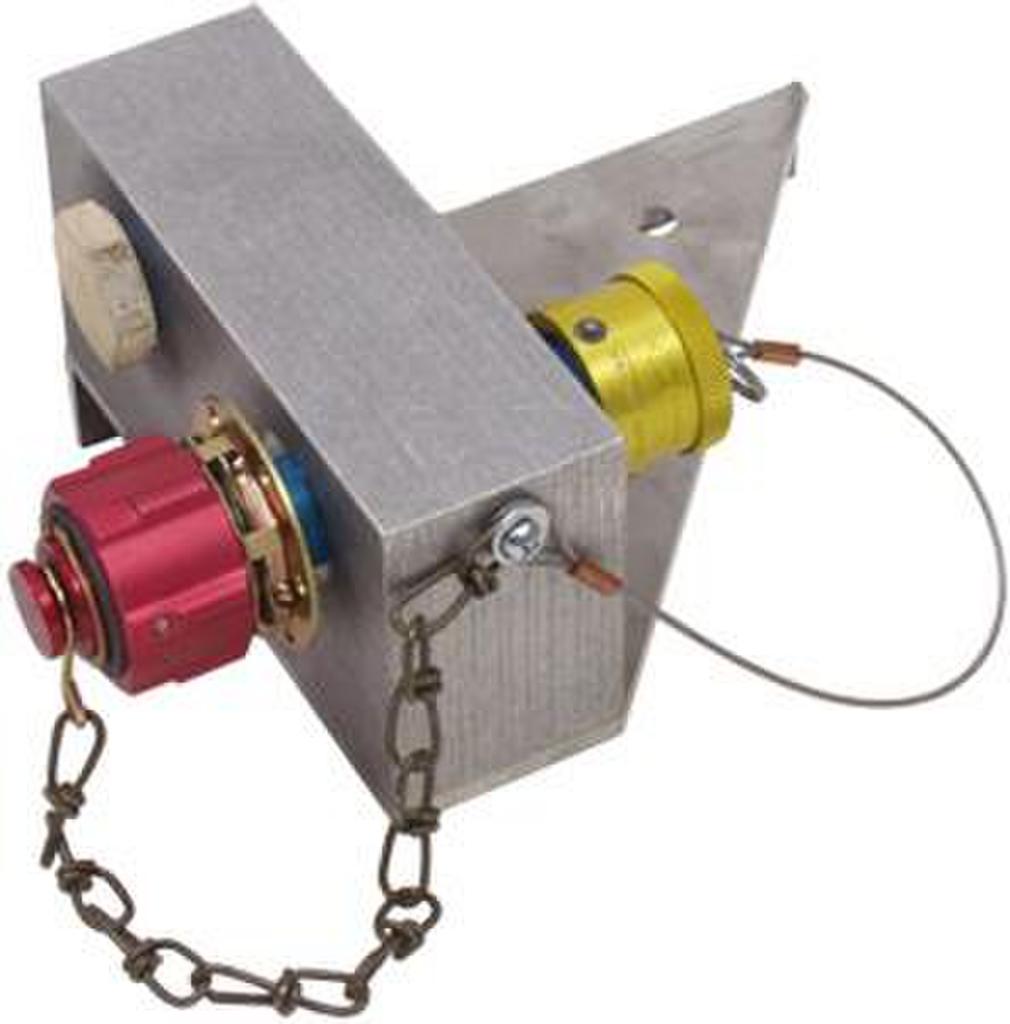

Tronair KHC-4075 – HPU Self-Cleaning Circulation Kit – Use with KHC-1008 Hydraulic Coupling Kit

Ensure added flight safety by delivering clean hydraulic fluid to your aircraft with the Tronair KHC-4075 HPU Self-Cleaning Circulation Kit. This kit is designed for use with either the KHC-1008 or KHC-1008-A1 Quick-Disconnect Hydraulic Coupling Kit.

Standard Features

• Easy, drip-proof port is used to connect hoses when not in use
• Designed for single HPU systems using phosphate-ester fluids
• Kit connects pressure and return hoses together to circulate hydraulic fluid through the HPU's internal 2-micron and 5-micron filters for self-cleaning

Kit Includes:

• J-4243 – Manifold (-12 SAE Ports) (Qty. 1)
• N-2608-01 – Half Quick-Disconnect Coupling (Qty. 1)
• N-2685-12 – Dust Cap (Qty. 1)
• N-2053-08-S-E – Hex-Head Plug, #12 O-Ring (Qty. 2)
• N-2463-13-S-E – Expander Fitting (12-16) (Qty. 1)
• N-2608-02 – Half Quick-Disconnect Coupling (Qty. 1)
• J-5541-01 – Coupling Kit Bracket (Qty. 1)
• G-1250-1030N – Flat Washer, #10 (Qty. 1)
• G-1157-103006 – Pan-Head Cross-Recessed Screw, #10-24 x 3/4" long (Qty. 1)
• G-1250-1050W – Flat Washer,1/4 Wide (Qty. 4)
• G-1100-105012 – Hex-Head Bolt, Grade 5, 1/4-20 x 1.25" long (Qty. 4)
• G-1152-105206 – Flat-Head Socket-Cap Screw, 1/4-20 x 3/4" long (Qty. 3)
• N-2685-16 – Dust Cap (Qty. 1)
• HC-2013-916 – O-Ring, Series 3 (Qty. 1)
• HC-2013-912 – O-Ring, Series 3 (Qty. 1)
• V-1967 – Warning Label (Qty. 1)

Use with KHC-1008 coupling kit
