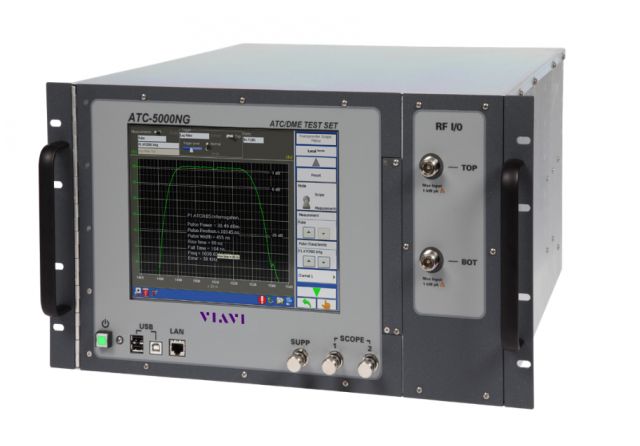

VIAVI ATC-5000NG – ATC/DME Test Set / ADS-B Target Generator
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The VIAVI ATC-5000NG is an RF signal generator/receiver for testing Mode 3/A, C, and S transponders. The ATC-5000NG was designed with modern software-defined radio technology and is the replacement product for the commercial functionality of the SDX-2000, ATC-1400A, and S-1403DL. The ATC-5000NG is capable of performing most MOPS tests for DO-181E, DO-260, DO-260A, DO-260B, and DO-282B and is the ideal test equipment for engineering development, certification, manufacturing, and service.
What Tests Can the ATC-5000NG Perform?
- Transponders (Mode S & ADS-B Out)
- ADS-B In Receivers
- UAT Receivers
- 1090 MHz DF18 Emitters (Surface Vehicles)
- ADS-B In-Ground Station Receivers
- ADS-R, TIS-B Ground Station Transmitters
- DME
Features
- Target generation – independently configure up to 600 ADS-B, TIS-B, or ADS-R target types (32 dynamic and 568 static); ATCNGOPT03 Multi-receiver option required
- The software-driven design allows for field updates to add new features, capabilities, or modifications
- ADS-B squitter decode and logging for ADS-B Out testing (DO-260, DO-260A, and DO-260B data parsing)
- DO-260B MOPS preconfigured tests available (Option ATCNGOPT06)
- Generates ATCRBS/Mode S interrogations
- Multi-receiver test capability (ATCNGOPT03) with UAT TX/RX capability (ATCNGOPT02)
- Pulse and frequency measurement
- Remote control via GPIB or Ethernet
- Two independent transmitters and receivers with TX/RX data logging capability
- Legacy command set option
- Full diversity testing capability
- Data parsing in engineering units
Benefits
- Internal pulse measurement capability eliminates the need for an oscilloscope
- Support for Air Traffic Control Modernization mandates (NextGen, SESAR)
- Modern architecture design will support future standards changes
Standard Accessories
- Keyboard with Trackpad
Available Options – Add-Ons
- 139311 – ATCNGOPT01 DME Option
- 138157 – ATCNGOPT02 UAT 978MHZ Option
- 138159 – ATCNGOPT03 Multi-Receiver Option
- 138158 – ATCNGOPT04 SDX-2000 Command Set Compatibility Option
- 138223 – ATCNGOPT05 ATC-1400A /S-1403DL Command Set Compatibility Option
- 139310 – ATCNGOPT06 DO-260B MOPS Test Option (requires Multi-Receiver Option)
| General Information | |
|---|---|
| Part # | ATC-5000NG |
| Manufacturer | Viavi |
| Shipping Information | |
|---|---|
| ECCN | 7B994 |
