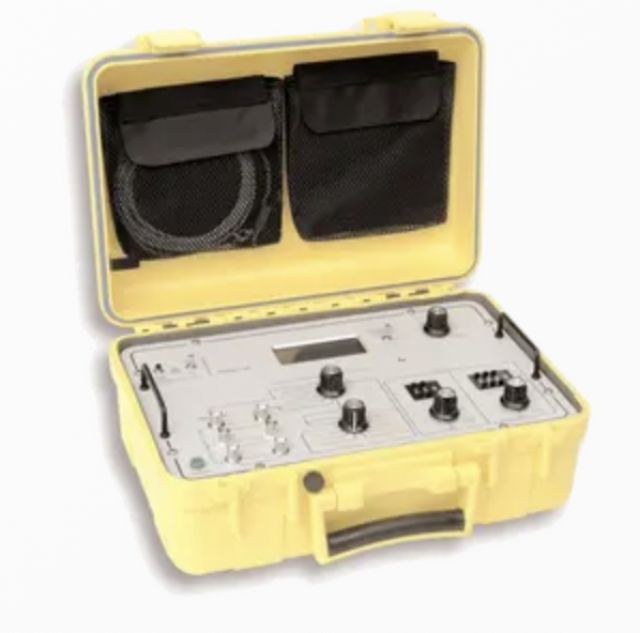

Viavi PSD60-2R AC Fuel Capacitance Test Set

Viavi PSD60-2R
Manufacturer: Viavi
Part Number: PSD60-2R
NSN: 4920-01-509-8104
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Hydraulic Coupling Kit - Challenger 300 / 350, CS100, CS300, ERJ-170, ERJ-175, ERJ-190, ERJ-195, and Lineage 1000.
Hydraulic Coupling Kit - Challenger / CRJ Aircraft
Hydraulic Coupling Kit - Airbus, Boeing, DC-10, and MD-11
Hydraulic Coupling Kit - Airbus A350, A380 and Boeing 757
Coupling Kit - Metal Dust Caps - Citation X, Legacy, Gulfstream, BAE

The Viavi PSD60-2R is an accurate, stable unit designed to test AC capacitance type fuel quantity measurement systems and their line replaceable components.

The PSD60-2R, along with aircraft-specific interface units or cables*, provides the complete capability to test most aircraft with AC capacitance systems.

*Aircraft-specific interface cables are required and must be purchased separately.

Functions

  • Measurement of total tank capacitance, individual tank units, and compensators
  • Simulation of capacitance for indicator calibration
  • Simulation of compensator capacitance value for dry calibration
  • Measurement of the insulation resistance of tank units and aircraft harness
  • Measurement of coax center conductor to shield for fault isolation
  • Display of capacitance resolution to 0.00 pF for accurate individual tank unit test¬ing (to 199.99 pF)

Key Features

  • Compatible with AD 98-20-40 & AD 99-03-04 compliant aircraft (Mod 6 and above)
  • Modular design for high reliability and low maintenance
  • Closed box calibration using front panel controls - performed annually
  • Battery-powered with percent of charge displayed
  • Maintenance codes displayed to aid in troubleshooting
  • Distance-to-Fault (DTF) Mode determines the "length" of the wire or the approximate distance to a break in the wire or shield
  • Large selection of aircraft specific interface cables readily available



Alternate Models
693Manufacturer's Part Number
COM-1770Boeing Tool Number
Old Part Number01-0597-00
Compatible Aircraft*
ATR42, 72
AirbusA300, A310
Airbus Military (CASA)C-295, CN-235/HC-144A
Bell204, 205, 214, UH-1, UH-1H
Boeing717, 727-100, 727-200, 737 Max, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 747-8, 757, 767, 777, 787, Apache AH-64, KC-46
SikorskyMH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i, UH-60 Black Hawk, MH-60S Seahawk
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Schedule B9030330040
Renting

We provide short-term and long-term rentals for the PSD60-2R. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used PSD60-2R (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
