VIAVI UC-584DUAL Universal Transponder Antenna Coupler

The UC-584DUAL is designed to enable reliable FAR Part 43 Appendix F transponder testing, including ERP (Effective Radiated Power) and MTL (Minimum Trigger Level), in environments where multipath interference would typically compromise results. By mounting directly over the aircraft’s transponder antenna(s), the coupler provides more than 20 dB of isolation to shield airborne TCAS systems and ATC receivers from unintended replies. This ensures accurate, repeatable test conditions, whether you’re on the ramp or inside a hangar.

Open-air testing can cause unintended transponder replies to be detected by nearby TCAS systems or ATC facilities, creating safety and compliance concerns. The UC-584DUAL resolves this by shielding and attenuating the transmitted energy, preventing external detection while still allowing accurate measurement of ERP and MTL. This controlled environment makes it ideal for high-traffic airports and enclosed hangars.

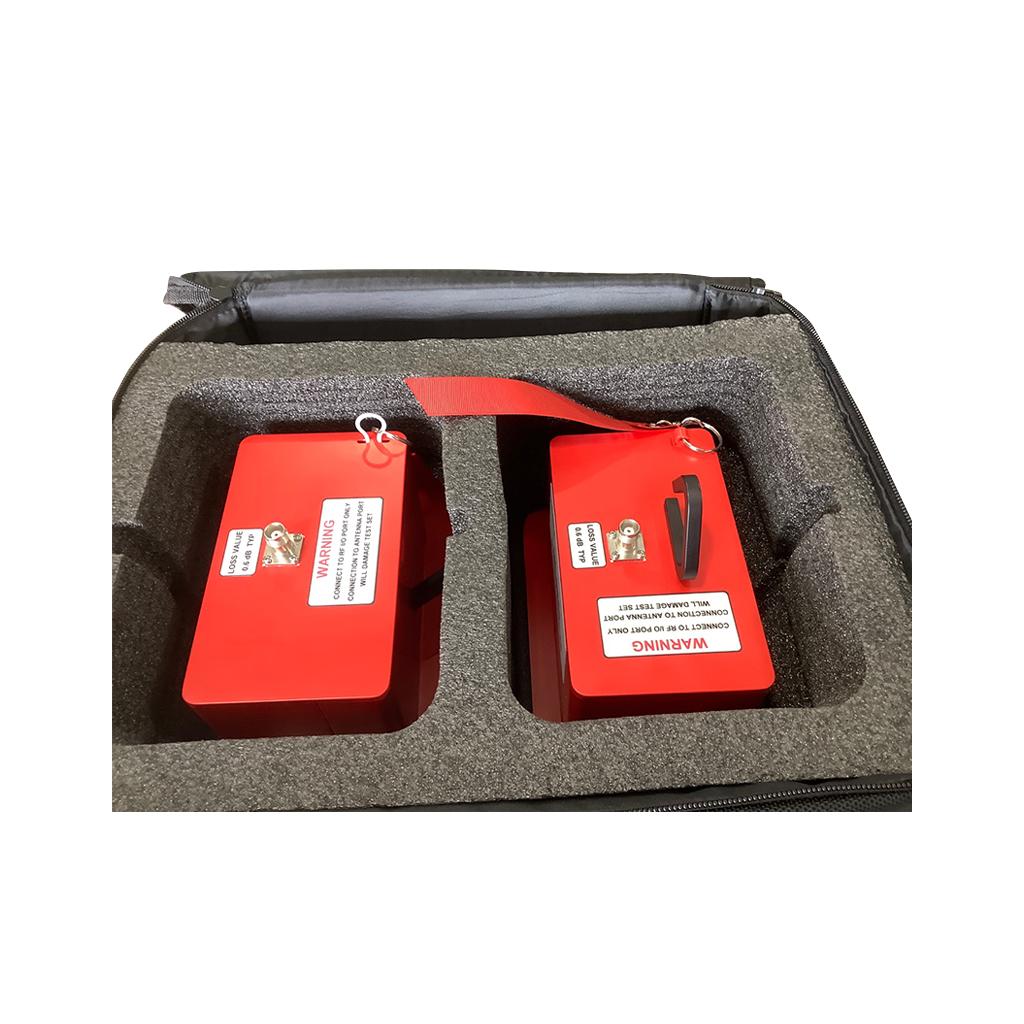

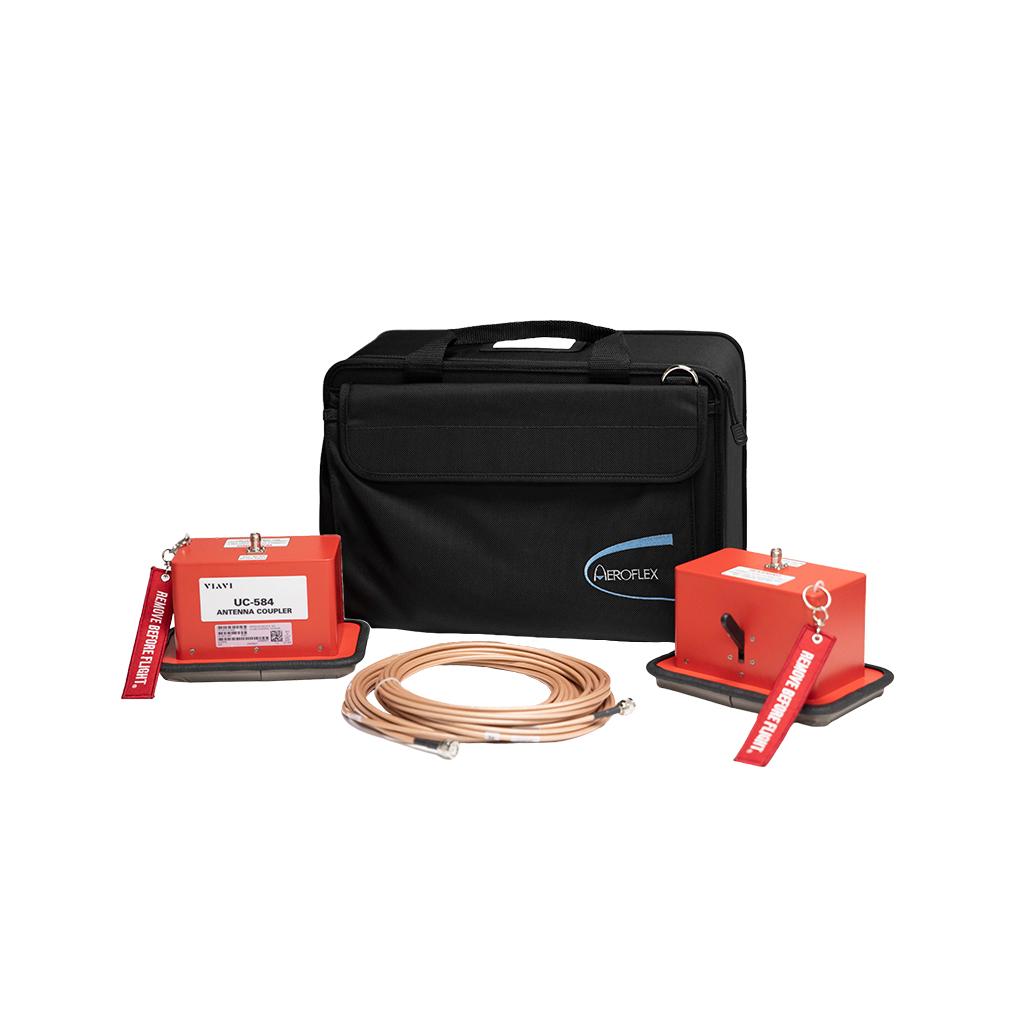

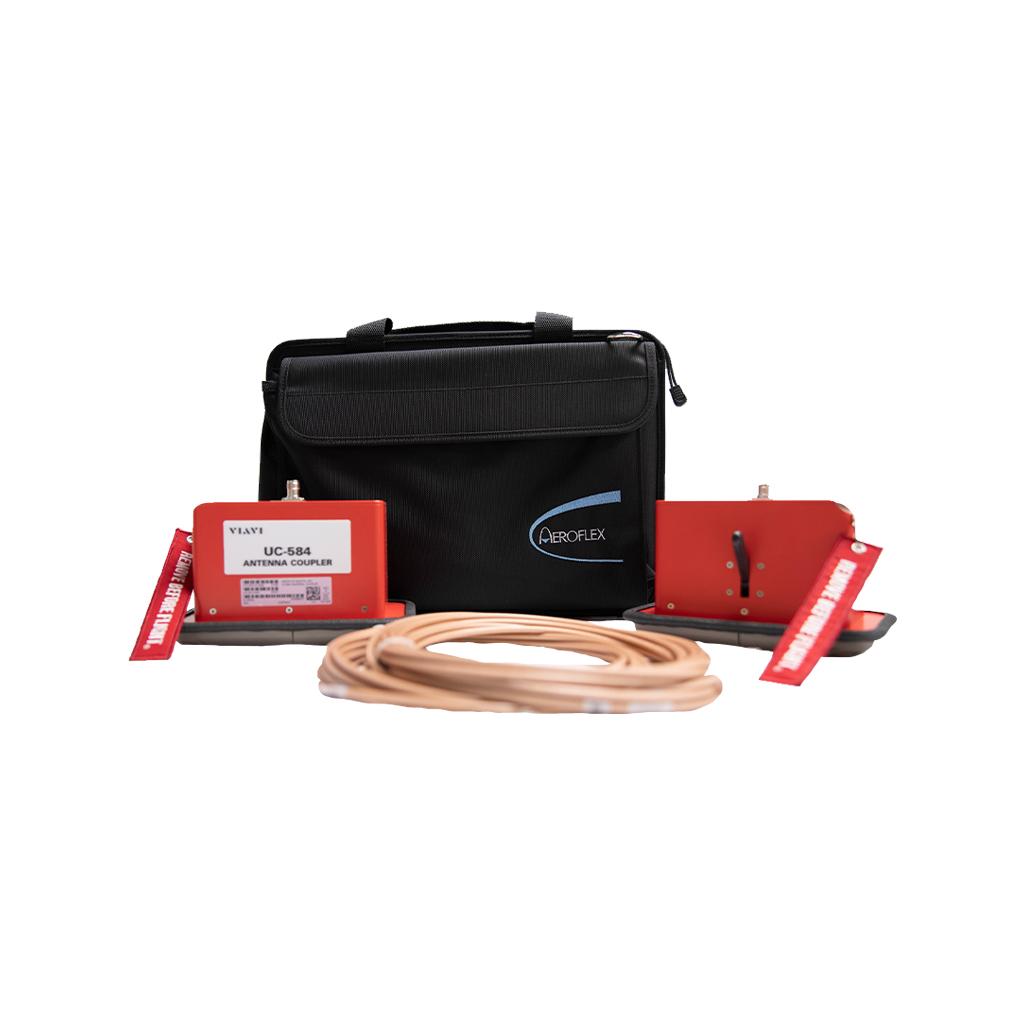

The dual-antenna kit includes both the standard UC-584 L-Band coupler with clamp and the UC-584S top-mount coupler for larger aircraft antennas. It also includes two 25-foot TNC-to-TNC coaxial cables (one straight and one right-angle), a soft case, an ID card, application notes, and an instruction sheet. This provides everything needed to perform transponder system testing on most aircraft platforms.

The UC-584DUAL connects directly to VIAVI flight-line testers, including the IFR6000, IFR6015, and APM-424(V)5, as well as the VIAVI IFF-45TS bench test set. Because it uses a standard TNC connection and provides passive isolation, it is also compatible with many third-party transponder test sets that support 1030/1090 MHz operations. This universal compatibility makes it suitable for both avionics repair shops and fleet maintenance teams.

The UC-584DUAL features an integral positioning slot that aligns the coupler consistently over the transponder antenna, minimizing test-to-test variability. Repeatability is further enhanced by the coupler’s <1 dB measurement repeatability specification, ensuring dependable results across multiple test sessions. This is especially valuable during ADS-B performance testing, where parametric accuracy is essential.

Both couplers in the dual-antenna kit are designed to fit most “shark fin” style L-Band antennas commonly found on commercial, business, military, and general aviation aircraft. The UC-584S top-mount version accommodates slightly taller antennas and provides streamlined placement on larger airframes. Maximum antenna dimensions are clearly defined in the technical data to ensure proper fit.

With more than 20 dB of attenuation, the coupler significantly reduces the radiated energy that escapes the test environment. This shielding minimizes the risk of false intruder alerts on nearby aircraft and prevents unwanted transponder replies from reaching ATC receivers. This added protection is particularly important when working near active taxiways or gates.

Yes. The UC-584DUAL supports testing at 1030 and 1090 MHz, the frequencies used by Mode A/C, Mode S, and ADS-B systems. Its shielding ensures that ADS-B performance tests and UUT parametric evaluations can be conducted without broadcasting unwanted signals. This ensures compliance with FAA performance-verification standards for ADS-B-equipped aircraft.

Yes. The coupler is specifically designed for environments where multipath interference is a concern, including enclosed hangars with reflective surfaces. While its shielding greatly reduces unintended emissions, effectiveness still depends on hangar structure and distance from ADS-B ground stations. Nevertheless, the UC-584DUAL enables far more reliable hangar-based testing than open-antenna methods.

The primary UC-584 unit features a toggle-action clamp that securely locks the coupler over the antenna, whereas the UC-584S top-mount version simply slips over the antenna for quick placement. Both methods provide stable alignment and prevent movement during testing. The secure mounting design ensures consistent attenuation and measurement accuracy.

Each coupler weighs approximately 2 lbs (0.9 kg), making them lightweight enough for frequent field use. The physical dimensions of both the UC-584 and UC-584S are approximately 8.2” × 5.75” × 5.25”, with slight differences in maximum antenna size accommodation. This compact form factor supports easy placement even on tightly spaced antennas.

No. The coupler is a passive RF device and does not require any electrical power. Its attenuation and shielding capabilities are achieved entirely through mechanical and RF design, ensuring fail-safe operation in all environments.

The single-antenna kit (112350) includes only the UC-584 clamp-style coupler, which is suitable for aircraft with a single transponder antenna. The dual-antenna kit (112349) adds the UC-584S top-mount coupler along with an additional right-angle cable, making it ideal for aircraft with redundant or differently positioned antennas. The dual-antenna kit is the recommended option for most avionics shops.

Yes. An 8-foot antenna-coupler pole with a D-ring (90106) is available to help position the coupler on taller aircraft where manual placement is difficult. This accessory improves technician safety and efficiency, particularly when working outdoors or on large airframes such as regional jets or business aircraft.
