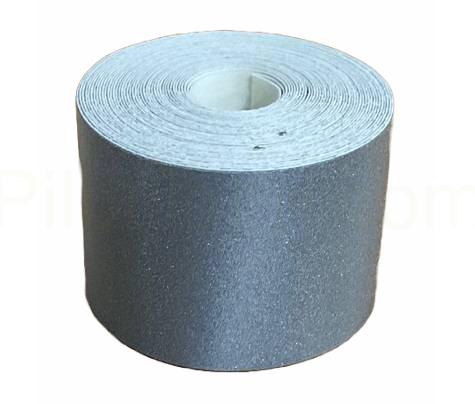

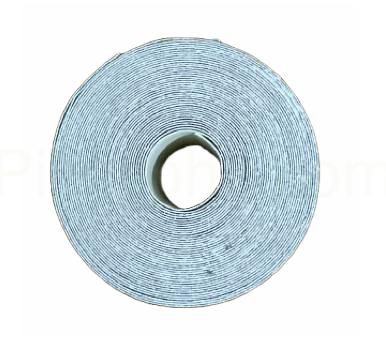

ACES Systems 10-400-0176 – 1" High-Gain Reflective Tape, 10' Roll

ACES Systems' 10-400-0176 High-Gain Reflective Tape is used to reflect the PhotoTach beam in propeller, rotary, and fan/turbine balancing setups. It’s compatible with photoelectric sensors and video motion capture systems, making it a key consumable in vibration and balance measurement workflows.

This tape is constructed from thin, 3M 7610 plastic-based reflective film, offering excellent retroreflectivity. It features a peel-off liner and a strong yet conformable adhesive backing that adheres well to curved or flat surfaces.

High gain reflectivity ensures that the PhotoTach beam is reliably returned to the sensor, providing a sharp signal with minimal noise. That clarity is essential in balancing tasks to distinguish fine vibration or imbalance characteristics. Lower reflectivity might lead to weak or erratic readings.

Each roll of 10-400-0176 tape is 1” wide and 10 feet (3 meters) in length, giving technicians ample tape to cut and apply to various blade surfaces or rotating components.

Yes. This reflective tape is suitable for both indoor and outdoor use, thanks to its plastic-based film and durable finish that withstands ambient conditions. Its design ensures performance in hangars or outdoors on flight lines.

At just 0.16” (4 mm) thickness, the tape is very thin and minimally intrusive, which helps avoid adding imbalance or altering aerodynamic behavior on propeller blades. Its thinness also helps it conform to curved surfaces without wrinkling or peeling.

Before application, the blade or rotor surface must be clean, dry, and free of oils, grease, or debris. Press out any air bubbles or creases so the edges lie flat. If peeling or lifting is a problem, applying a thin coat of clear nail polish to the edges can help secure adhesion.

If the tape loosens during the job, the reflected beam may be disrupted, causing poor data or signal dropouts. To prevent that, ensure the adhesion is secure and the edges are fully pressed down. If needed, reinforce edges with a narrow protective coating (e.g., clear lacquer) to hold the tape firmly in place.

Yes, the High-Gain Reflective Tape is specifically designed for use with ACES Systems balancers and analyzers, but it also works with any system that utilizes PhotoTach or photoelectric sensors. Its high reflectivity and standard width make it broadly compatible across rotor balancing workflows.

A 10-foot roll of 1” tape provides up to 120 one-inch strips, each one foot in length, or fewer longer strips, depending on the use. This allows for multiple applications per roll, making it cost-effective for repeated balancing tasks.

The ACES Systems 10-400-0176 – 1” high-gain reflective tape does not have a defined shelf life or expiration date, per the manufacturer. When stored in a clean, dry environment away from excessive heat or direct sunlight, it maintains its performance characteristics. Each roll includes a manufacturer’s Certificate of Conformance (CoC) for documented quality assurance.
