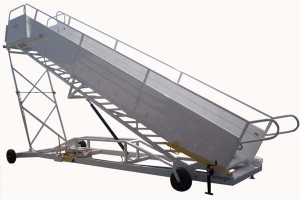

Clyde 15F2830 – Aircraft Passenger Stairs – 134" to 223" Height

The Clyde 15F2830 is a towable passenger aircraft stair that adjusts in height from 134" to 223".

Key Features

• Platform height adjusts using a hand pump
• Modesty panels on all steps and platform handrails
• Battery-powered LED lighting system with adjustable timer
• Onboard battery charger
• Battery level indicator
• Stabilizer jacks
• Sliding handrails to clear the aircraft door
• Non-marking soft rubber bumpers
• Services various passenger door sill heights, from 134" to 223"
• Group 24 deep-cycle battery
• Equipped with folding towbar with 3" diameter eye
• Epoxy powder-coated per customer's color preference

Technical Specifications

• Operation Height: 134" to 223" (3.4 to 5.7 m)
• Platform Size: 76" x 50" (1.9 x 1.3 m)
• Step Width: 48" (1.2 m)
• Platform Capacity: 1,000 lbs. (453.6 kg)
• Full Stairway Capacity: 3,500 lbs. (1,587.6 kg)

Shipping Dimensions

• Base Length: 268" (6.8 m)
• Overall Length: 390" (9.9 m)
• Width (No Tires): 101" (2.6 m)
• Height (No Tires): 120" (3 m)
• Weight: 4,500 lbs. (2,041.2 kg)
