Dekal DLB-ESS-20DU – 28.5V DC Digital USB LED Load Bank – 2,000 Amps

The Future is Here for Load Banks - Dekal Load Banks

Your new load bank starts here with us on a digital USB LED unit. View the complete line of digital USB 28V DC load banks.

Advantages of 28.5V DC Digital USB LED Dekal Load Banks

• Simple operation suitable for non-trained operators
• Silent operations <70 dB(A) at a distance of 23 ft. (7 m)
• Suitable for workshop and/or airside operation
• Environmental operating temperature from -20°C to 55°C / -4°F to 122°F
• Transport casing with pull-up handle as standard for each load bank
• Triple thermal protection – extremely resistant to high temperatures
• Cant protection – load bank works only in a horizontal position
• Phase detection – load bank works only if all ABC phases are available
• Phase rotation indicator – phase sequence of three-phase voltages
• Fine regulation as standard for all digital 28.5V DC load banks
• Free Dekal software application included
• All measurements possible to archive or printout
• Aluminum housing and noncorrosive parts
• High component quality control by the manufacturer
• High reliability – effective standardization process
• Cable pin jacks – unique user-friendly safety feature for external voltage test
• Spare parts availability and accurate on-time deliveries
• Short worldwide delivery period with tracking feature
• 2 years full warranty with an extension option for all DEKAL load banks
• CE certification - health, safety, and environmental protection standards
• Standards & requirements according to ISO 6858, DFS 400, ARP 5015
• Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

DLB-ESS-20DU – 2000-Amp Version

• Voltage: 28.5V DC +/- 20%
• Load: 2,000 A +/- 20%
• Load Test Procedure Type: Aircraft Engine Start Simulation in duration of 35 seconds
• Load Test Specification at 28.5V DC: 6 Steps: 1) 2,000 amps for 1 second, 2) 1,700 amps for 3 seconds, 3) 1,200 amps for 10 seconds, 4) 1,000 amps for 20 seconds, 5) 700 amps for 30 seconds, 6) 400 amps for 35 seconds
• Forced Air Cooling: 44.1 m3/min – 1,560 CFM

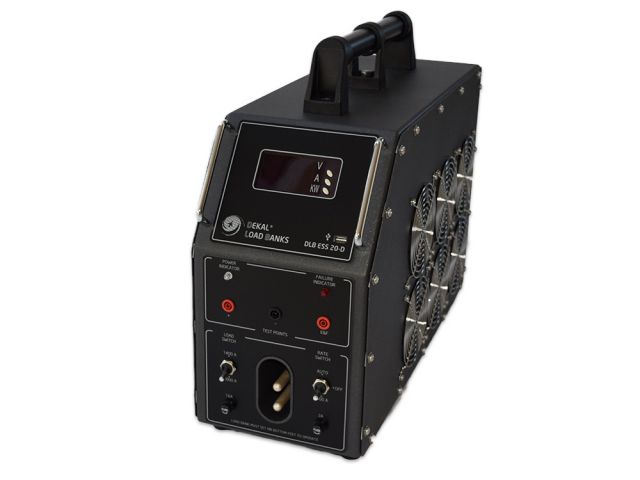

• Digital Power Meter: 3 Line High Brightness Red LED Display
• USB Interface: USB Plug-In Connection for Data Printout/Archive – Includes Free Dekal Software and USB Cable
• Light Indication: 28V DC Power Indication, Failure Indicator
• GPU Testing Procedure and Engine Decarbonising: Proposal Procedure: Load 300A/600A for 20 minutes or Load Test in 6 Steps 100% to 0% – 35 seconds
• Operating Temperature: from -20°C to 55°C / -4°F to 122°F
• Noise Level: <70 dBA at a distance of 23 ft. (7 m)
• Load Bank Size:
  • Dimensions: 22.5" x 9" x 19" (57 x 23 x 45 cm)
  • Weight: 55 lbs. (25 kg)

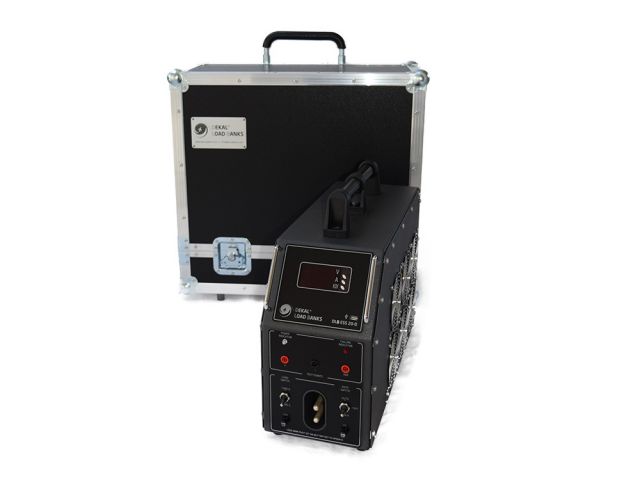

• Transport Case:
  • Dimensions: 24.4" x 11" x 27.2" (62 x 28 x 69 cm)
  • Weight: 37 lbs. (17 kg)
• Load Bank Painting/Transport Casing: Powder Coating Fine Structure 71319 IGP, Swiss Quality / High-Grade Aluminum

Additional Features

• Lightweight, compact aluminum housing
• Rugged design and durable construction
• Powder painting
• All parts are made of noncorrosive materials

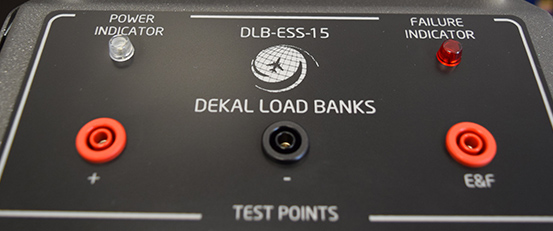

• Plug test pins for connecting external device measurement
• Power indicator lights
• + & - Indication
• E&F circuit indicator

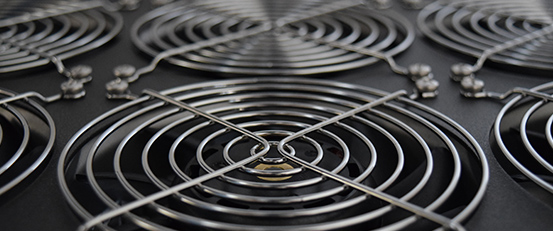

• High-performance cooling system
• PWM Speed control function
• Burnout protection at locked rotor
• High-quality analog instruments – 7.2 x 7.2 cm
• Voltmeter 0V to 40 V, Ammeter 0 to 2,500A

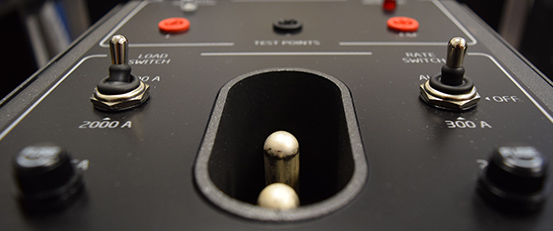

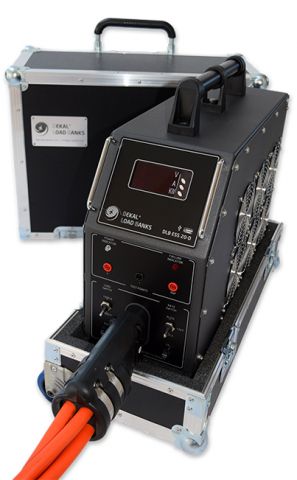

• Standard aircraft 3-pole Power Receptacle with shield
• Stainless steel feet on both the bottom and back panels – power cable plug can be connected in either a horizontal or vertical position
