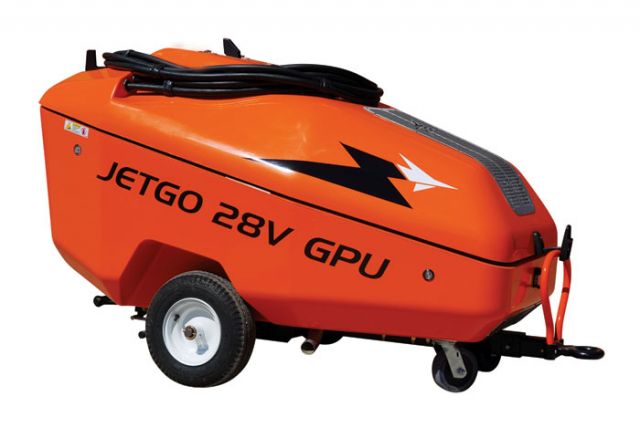

JetGo 550Mti 28V DC Diesel Aircraft Ground Power Unit (GPU)

JetGo 550Mti
JetGo 550MtiJetGo 550MtiJetGo 550MtiJetGo 550MtiJetGo 550MtiJetGo 550Mti
Manufacturer: JetGo
Part Number: 550Mti
Condition: New
Rating: 5.0 Based on 1 customer review
Item Not Available New

This item has been discontinued or is no longer available.

It has been replaced by 600Mti-RJ.

Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Towable - 28V DC Cummins Tier 3 Diesel - 800 / 2000 amps
Diesel - 550 amps / 2300 amps max - Rust proof trailer and integrated cable tray
28V DC Diesel-Electric GPU - 300 amps continuous
60Hz - 600A Continuous / 2000A Peak Start - Single Output
50Hz/60Hz, 800 - 1000A Continuous / 1800 - 2400A Peak Start

What is the JetGo 550Mti?

The JetGo 550Mti is a diesel-electric hybrid ground power unit for powering aircraft with 28.5V DC requirements. The lightweight and extremely portable 550Mti provides 550 amps continuous power for avionics, maintenance, and air conditioning on the ramp along with providing up to 2300 amps max for starting.

These units are great for corporate flight operations, FBOs, military, regional airlines, and aircraft Maintenance, Repair, and Overhaul (MRO) facilities.

Specifications
  • 550 continuous amps at 28.5 volts DC
  • 2300 peak amp start capability

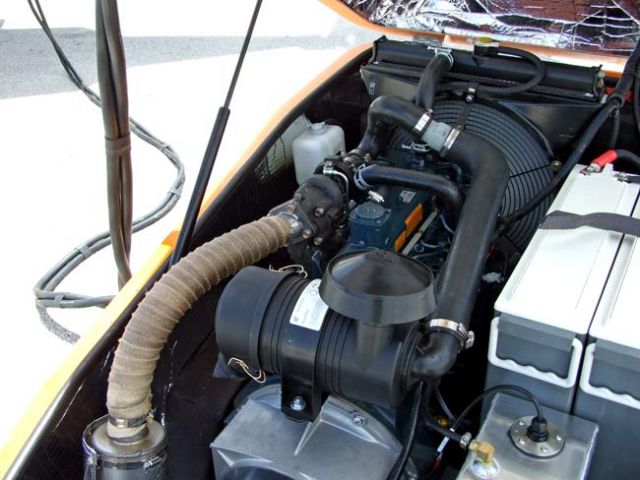

  • Kubota four cylinder turbo-diesel engine
  • EPA Tier 4i and EU Stage IIIA emissions compliant
  • Soft-start and onboard aircraft protection
  • Efficient fuel consumption: 0.8-1.5 gallons (3-6 liters) per hour (depending on load and atmospheric conditions)
  • Extremely quiet: Less than 63db at 20 feet (at full load)
  • Includes 30-foot MS3506 military spec output cable with standard NATO aircraft plug

Features

  • One-button starting system
  • Can be used without engine operating as a hangar static cart, producing 24 volts for maintenance functions
  • Easy to move into service position by hand - only 1,367 lbs/620 kg (dry)
  • Can be towed with heavy-duty front-mounted failsafe extendable towing bar
  • "Easybrake" foot activated braking system and auto brake-release
  • JetGo's trademarked "Zero Bleed" auto shutdown low fuel protection feature will shut down engine before running out of fuel, saving costly and timely fuel line bleeding procedures
  • 24V starting power remains in hybrid batteries even if engine shuts down due to inadequate fuel supply (preventing hot starts)
  • Large control panel with easy to read voltage & amp meters with bright contactor "ON" light
  • LED safety running lights illuminate when unit is operating
  • Custom engineered fiberglass shell with rounded edges reduces the potential for aircraft damage should unplanned contact occur
  • Marine grade shell and stainless steel hardware provide corrosion protection for any operating environment
  • Durable powder coated tubular steel chassis
  • Stainless mesh openings for airflow keep out unwanted guests and foreign objects

California Emissions

JetGo Tier 4i low-emission nonroad diesel GPUs are exempt from both California Local Air District permits and the California Airborne Toxic Control Measure for Diesel Particulate Matter. The Kubota engines are rated at less than 50 HP, and they are not regulated by California statutes.

Dimensions

  • 74” L x 42” W x 45” H (188 x 106.7 x 114.3 cm)
  • Weight (without fuel): 1,367 lbs (621.4 kg)

Warranty

  • 12 month manufacturers limited warranty
  • Kubota diesel engine: 2 years/2000 hours engine limited warranty with a 3 year/3000 hour engine component limited warranty
  • NorthStar Battery: 24 month manufacturers limited warranty

Available Options

When requesting a quote, please specify which options you would like.

JG550-01-425 - Custom Color
Custom color option for JetGo units. We will work with you to design a JetGo unit around your custom color pallette.

JG550-01-426 - Bumper Kit
Bumper kit for JetGo units. Includes 4 protective corner bumpers.

JG550-01-428 - Cold Weather Kit
Cold weather kit for all series of JetGo diesel Hybrid units. Includes engine block heater, two aircraft start battery blanket warmers, and one Optima engine start battery with warmer blanket. Requires 15Amp 115V service.

JG550-01-429-24V - 115V or 220V Receptacle
115V or 220V AC convenience receptacle for all series of JetGo diesel-hybrid units. Includes 115V or 220V AC control panel with duplex 20 amp GFI receptacles (3,500 watt rating). Allows user to power devices such as vacuums, power tools, lighting, laptop computers, and more. Customer must specify 115V or 220V AC option when ordering.

JG550-01-430 - Engine Block Heater
Engine block heater for all series JetGo diesel-hybrid units.

JG550-01-432 - LED Spotlight
12V LED mounted spotlight.

JG550-01-433 - Low Fuel Warning Strobe Light
Low fuel warning strobe light for all JetGo diesel-hybrid models, red color (other color options available). 10-15 minute engine shutdown delay.

JG550-01-434 - Dual Output Option
Dual output option for JetGo units. Includes secondary contactor and one (1) 2/0 40' output cable for avionics support and continuous power functions under 200 amps. This option is in addition to the 4/0 starting and continuous power output cable that is standard on JetGo GPUs.

JG550-01-435 - Laptop Computer Tray
Laptop computer auxiliary tray for JetGo GPUs.

JG550-01-445 - Breakaway Cable
Breakaway 30' 4/0 DC GPU cable with molded aircraft plug. Includes 3-pole DC cable assembly with 2 each 4/0 cables (overall length: 30'); 3-pole DC pigtail (breakaway section) with 2 each 4/0 cables (overall length 3') with water tight male receptacle.

JG550-01-446 - Wheel Chocks
Onboard/dedicated 12" wheel chock set. Secured to unit for storage in RJ unit cable tray via stainless steel lanyard.

JG550-01-448 - 12/14 VDC Option
12/14 VDC output option for JetGo GPUs. 875 AMP peak. Separate volt meter and contactor (with switch). 20' 1/0 DC output cable with standard aircraft plug (color coded and labeled for 12 VDC).

You Ask. We Help. Your FAQs.

Will leaving the JetGo outside in the hot sun hurt the unit?
The only harm from the sun would be the fading of the orange casing. If it is intense sunlight, you can use marine wax that will help protect the casing from any fading.

Alternate Models
550Mti-RJGalvanized rust-proof trailer and integrated cable tray
Compatible Aircraft*
ATR42, 72
AdamA500, A700
AgustaA109A, A109C, A109E, AW139 (AB139), Mark II
Airbus Military (CASA)212-100, 212-200, C-295, CN-235/HC-144A
BAeJetstream 31, Jetstream 41
Bell204, 205, 206B3, 206L4, 206LT, 212, 214, 214ST, 222, 230, 412, 427, 430, CH-139, OH-58, TH-67, UH-1, UH-1H
Bombardier (Business)C-21, Challenger 300, Challenger 350, CL-215, CL-215T, CL-415, Learjet 23, Learjet 24, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)CRJ705, Dash 6 (Twin Otter UV-18A), Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
Britten NormanIslander/Trislander
Cessna152, 172, 177, 180, 182, 185, 206, 207, 210, 310, 320, 337 Skymaster, 340, 401, 402, 404, 411, 414, 414A, 421, 421C, Bravo, Caravan 208, Caravan 208B, Caravan 406, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 900, Falcon 900EX
Diamond AircraftDA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, Phenom 100, Phenom 300
EurocopterAS330 Puma, AS350 A-Star (High Skid Gear), AS350 A-Star (Low Skid Gear), AS355 Twin Star, AS365N Dauphin, BK-117, BO-105, HH-65A Dolphin
Fairchild/DornierDornier 228-100/200, Dornier DO328, Dornier DO328 Jet, Envoy 3, Merlin II, Metro Merlin III, Metro Merlin IV
Fokker27, 28, 50, 70
General DynamicsConvair 580, Convair 600, Convair 640
GulfstreamAero Commander, G100 (Astra SPX), G150, G200 (Galaxy), I, Turbo Commander
Hawker BeechcraftBeech 1900, Beech 99, Beech Baron, Beech Bonanza, Beechjet 400A, C-12, Diamond, Duke 60, Hawker 1000, HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, Queen Air, T-1 Jayhawk, T-400, T-6A Texan II, U-21 A/G
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
LockheedJetstar C-140
MitsubishiMU-2 Marquise, MU-2 Solitaire
MooneyAll
NihonYS-11
NomadNomad
NorthropT-38
PiaggioP-180 Avanti
PilatusPC-12, PC-24, PC-9
PiperAerostar, Aztec, Cheyenne II, Cheyenne III, Chieftan, Navajo, Seneca
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
SikorskyCH-148, H-92 Superhawk, S-61, S-65 (CH53, HH53, MH53, Sea Stallion), S-76 (AUH-76), S-92
Sino SwearingenSJ30-2
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight1750 lbs.
Pkg. 1 Dimensions79 in. x 52 in. x 56 in.
Parts

We sell parts for the 550Mti and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

CUSTOMER REVIEWS
5/5
by
Overall pleased with this product. It appears to be very well built, and user friendly. It was delivered fully assembled and ready to go right out of the crate. We are pleased with the safety features, and the cool down function, which will decrease the wear and tear on the engine and generator. This is a fine piece of equipment, and we expect to see years of worry-free service out of it.
